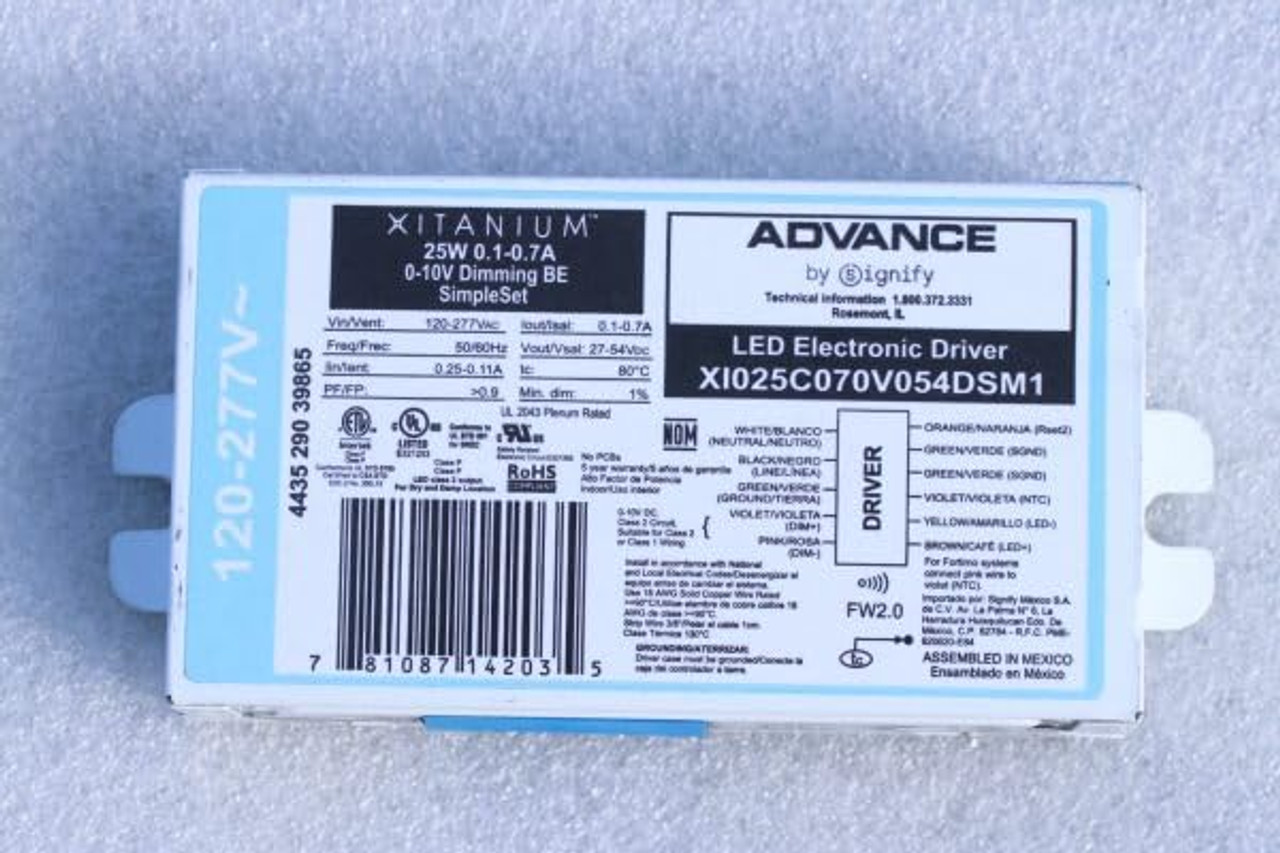

Advance
XI025C070V054DSM1
Xitanium LED Electronic Driver
- 25 Watt Programmable LED Driver. Factory set at 700mA output, adjust down to 100mA via SimpleSet technology or resistor. These drivers offer the needed flexibility and performance for the application with precise tuning of drive currents, selectable dimming curves and adjustable minimum dimming levels.
- Total Output Power: 25 Watts
- Input Voltage: 100-277 VAC
- Output Current: 100-700mA
- factory set at 700mA
- Output Voltage Range: 27-54V
- UL Damp and Dry
- 0-10V Dimming
- Operating Temp Range: -20 to +50 °C
- Bottom Entry Leads with 2″ center studs Class 1 and Class 2 Wiring
