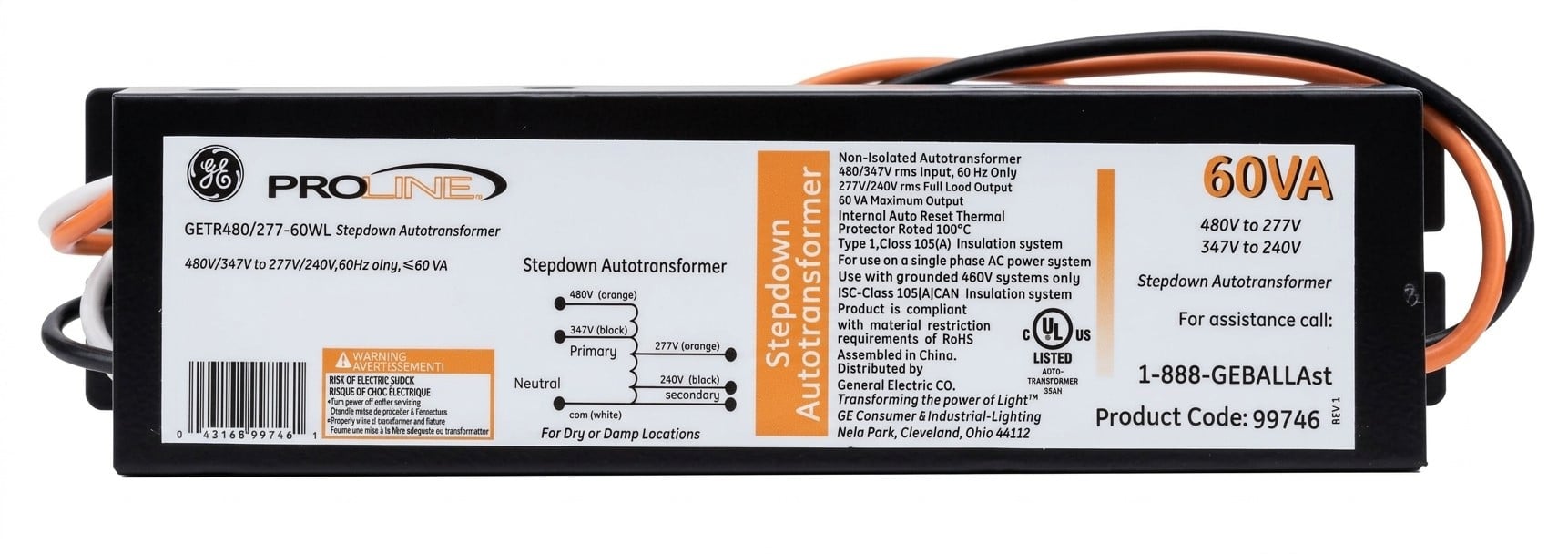

GE 99746 480V step down transformer, GETR480/277-60WL 480
Non-Isolated Autotransformer
• Input Voltage 480 and 347v , Vrms, 60 Hz
• Full Load Output Voltage 277 Vrms, 60 Hz. 120Vrms 60Hz.
• Maximum Power 60 W (VA) and 110W (VA), both 480 and 347v
• Separate leads for 347 and 480v connections
• Max Case Temp 105 C
• Thermally Protected
• Sound Rated A
• UL Recognized
or
• UL Listed – Does not require continuous updates to fixture UL files as
opposed to UL Recognized transformers.
• Low-profile housing fits within standard fixtures
• Five-year limited warranty
