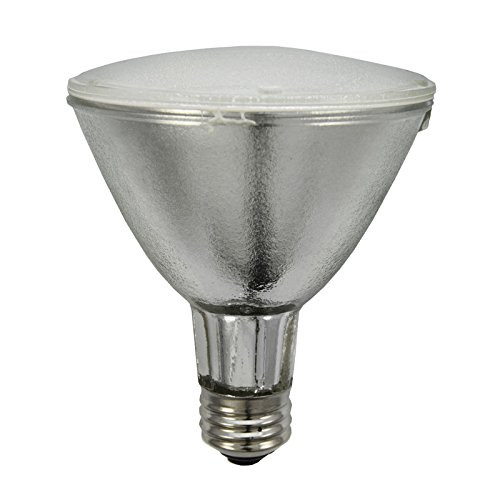

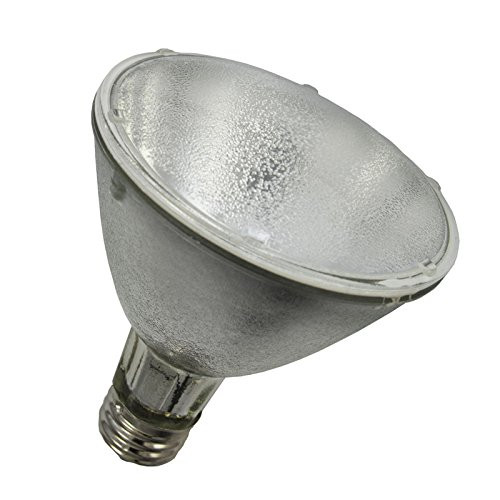

CMH39/PAR30L/SP10 (GE 45066) - GE Brand: 45066 GENERAL CHARACTERISTICS Lamp type High Intensity Discharge - Ceramic Metal Halide Bulb

GE Brand: 45066 GENERAL CHARACTERISTICS Lamp type High Intensity Discharge -
Ceramic Metal Halide Bulb PAR30L Base Medium Screw (E26) Wattage 39 Rated Life
10000 hrs Bulb Material Hard glass Lamp Enclosure Type (LET) Open or enclosed
fixtures LEED-EB MR Credit 210 picograms Hg per mean lumen hour Additional
Info Ballast thermal protection, UV control PHOTOMETRIC CHARACTERISTICS
Initial Lumens 2400 Nominal Initial Lumens per Watt 61 Beam Spread 10  Center
Beam Candlepower (CBCP) 39600 Color Temperature 3000 K Color Rendering Index
(CRI) 81 ELECTRICAL CHARACTERISTICS Burn Position Universal burning position
Open Circuit Voltage (peak lead ballast) (MIN) 280 V Open Circuit Voltage (RMS
lag ballast) (MIN) 198 V Warm Up Time to 90% 2 min Warm Up Time to 90% (MAX) 2
min/3 min Hot Restart Time to 90% (MIN) 10 min Hot Restart Time to 90% (MAX)
15 min DIMENSIONS Maximum Overall Length (MOL) 4 3/4 Nominal Length 4.600 Bulb
Diameter (DIA) 3.813 PRODUCT INFORMATION Product Code 45066 Description
CMH39/PAR30LSP10 ANSI Code M130 Standard Package Case Standard Package GTIN
Standard Package Quantity 6 Sales Unit Unit No Of Items Per
Sales Unit 1 No Of Items Per Standard Package 6 UPC
