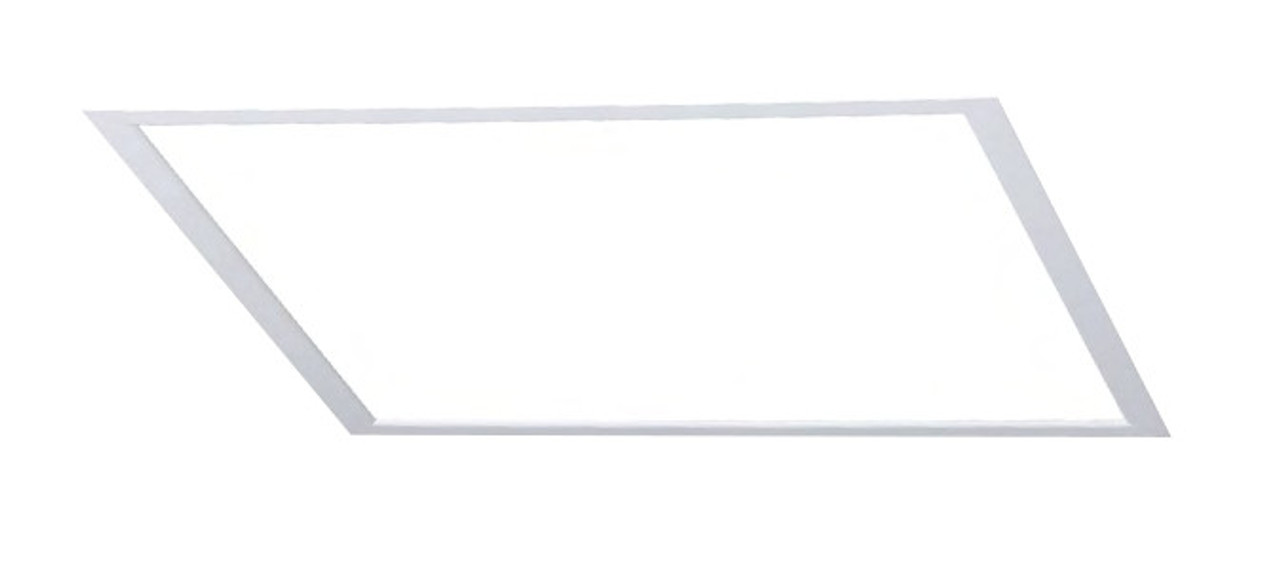

Extruded aluminum frame has a matte white finish and smooth frame-to-lens transition
OPTICS--Acrylic blend light guide with frosted/textured outer lens provides edge to edge illumination without pixelation or bright spots
INSTALLATION-- Integral T-bar clips for secure mounting to grid ceiling. For surface/cable mount applications use surface/cable mount kit accessories. For plaster or sheet rock installations, use
flange kit
ELECTRICAL--54,000 hour LEDs at L70 for reduced maintenance. Switchable Lumen technology allows for easy field-adjustable lighting output with three level switch located on back of panel. Switchable/Selectable Lumen fixtures ship at the highest lumen output setting.
Operates at 120-277V input
0–10V dimmable driver, down to 10%

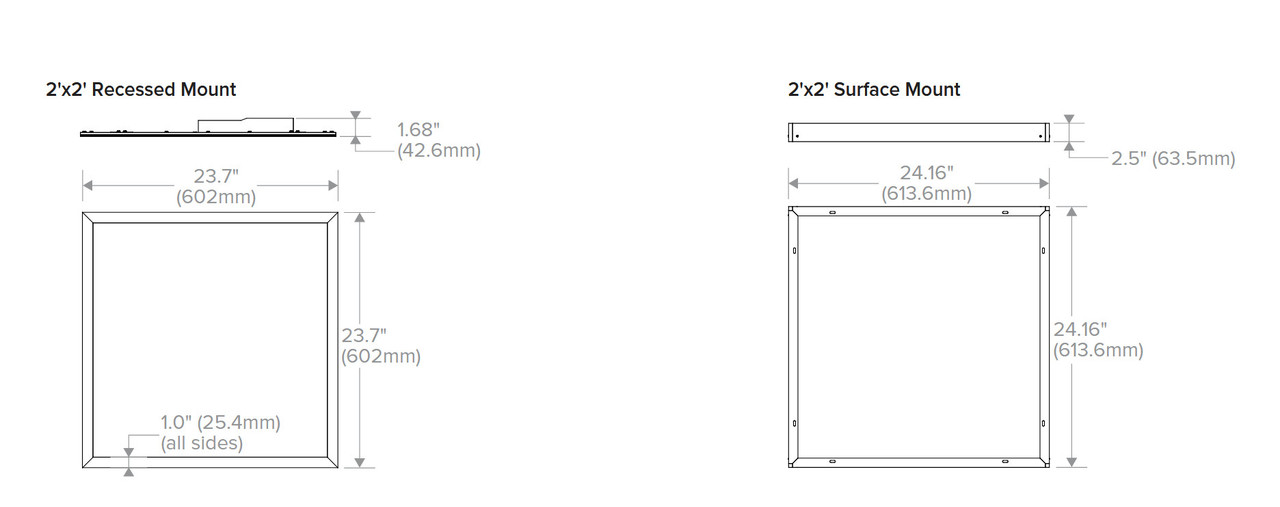

2 ft x 2 ft panel
Selectable Lumens (4000, 3300, 2800)
Selectable Color Temperature (3500K, 4000K, 5000K)
