The Lightolier by Signify GB6RSLMZ10SCTUW is a versatile 6-inch round LED adjustable gimbal downlight featuring both field-selectable lumen output and field-selectable color temperature. The adjustable gimbal design provides directional illumination, making it an excellent solution for accent lighting, architectural lighting, wall lighting and general illumination applications.
The GB6RSLMZ10SCTUW features Dual Select technology, allowing the installer to choose between 900 or 1100 lumens as well as five color temperatures: 2700K, 3000K, 3500K, 4000K or 5000K. This flexibility allows a single fixture to accommodate a wide variety of residential, hospitality, multifamily, retail and commercial lighting applications.
The fixture operates at approximately 12 watts at 900 lumens or 14 watts at 1100 lumens, providing energy-efficient LED illumination. High 90+ CRI provides excellent color rendering so furnishings, artwork, merchandise and interior finishes appear natural and accurately colored.
The GB6RSLMZ10SCTUW features 120-277V universal voltage and 0-10V dimming, making it especially useful for commercial, hospitality and multifamily projects requiring commercial-grade dimming controls.
Unlike a standard fixed downlight, the adjustable gimbal allows approximately 30° of tilt and 360° rotation, allowing the light to be aimed toward artwork, walls, displays, merchandise, architectural features or other areas requiring directional illumination.
KEY FEATURES
• 6-inch round LED adjustable gimbal downlight
• Dual Select – selectable lumens and selectable CCT
• 900 or 1100 lumen field-selectable output
• 12W / 14W selectable operation
• Five selectable color temperatures
• 2700K / 3000K / 3500K / 4000K / 5000K
• 90+ CRI for excellent color rendering
• 120-277V universal voltage
• 0-10V dimming
• Approximately 30° gimbal tilt
• 360° rotation for directional aiming
• Wide beam distribution
• IC rated
• Damp-location rated
• White finish
• ENERGY STAR certified
• Excellent for residential, retail, hospitality and commercial applications
TECHNICAL SPECIFICATIONS
Brand: Lightolier by Signify
Catalog Number: GB6RSLMZ10SCTUW
Signify Product Number: 911401837584
UPC: 190096131945
Product Family: Gimbal LED Dual Select
Product Type: LED Adjustable Gimbal Downlight
Shape: Round
Nominal Size: 6 Inch
Lumen Output: 900 / 1100 Lumens Selectable
Wattage: 12W / 14W
CCT: Field Selectable – 5CCT
Color Temperatures: 2700K / 3000K / 3500K / 4000K / 5000K
CRI: 90+
Voltage: 120-277V
Dimming: 0-10V
Finish: White
Light Source: Integrated LED
Gimbal Tilt: Approximately 30°
Rotation: 360°
IC Rated: Yes
Location Rating: Damp Location
ENERGY STAR: Certified
DUAL SELECT LUMEN OUTPUT
The GB6RSLMZ10SCTUW allows the installer to select between two light-output levels:
900 Lumens – Approximately 12 Watts
1100 Lumens – Approximately 14 Watts
The selectable lumen feature allows one fixture to cover multiple lighting requirements. This flexibility can help contractors, property managers and distributors reduce the number of different fixtures they need to purchase and stock.

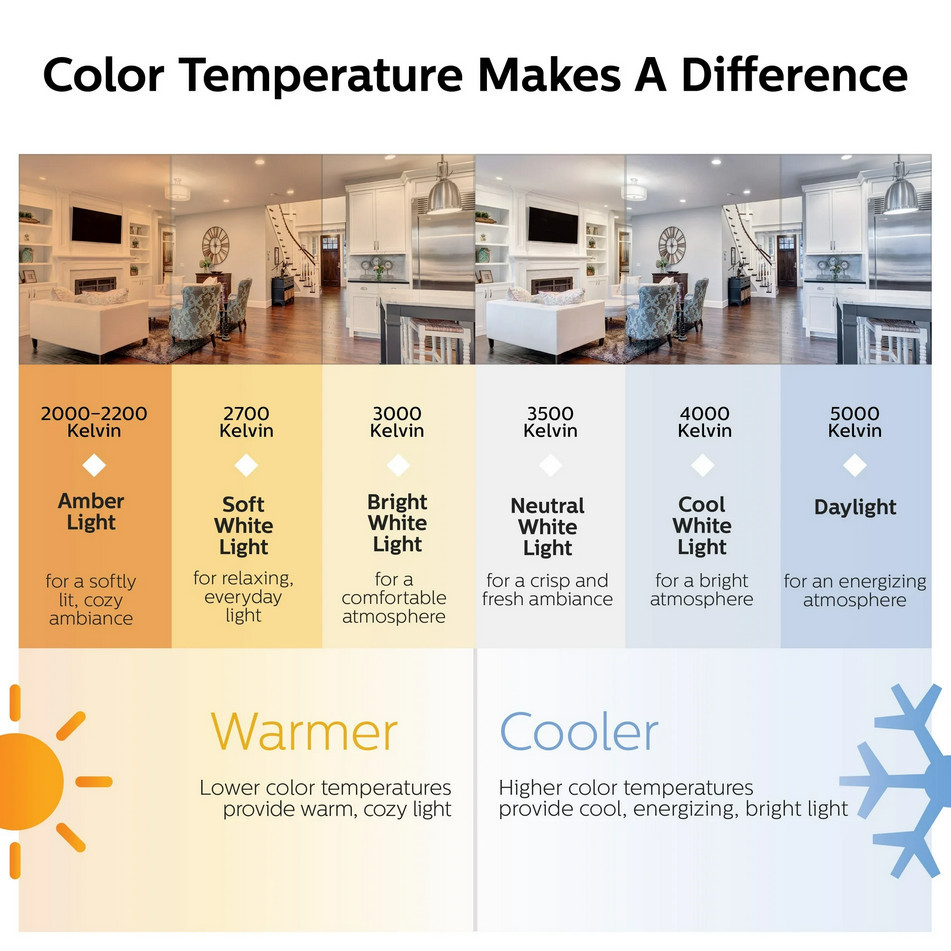

5 SELECTABLE COLOR TEMPERATURES
The fixture provides five field-selectable color temperatures:
2700K – Soft / Warm White – Warm, comfortable illumination ideal for bedrooms, living areas, restaurants and hospitality applications.
3000K – Warm White – Clean warm illumination commonly used throughout homes, apartments, hotels and residential spaces.
3500K – Neutral White – Balanced illumination suitable for both residential and commercial environments.
4000K – Cool / Neutral White – Crisp illumination popular in offices, retail areas, workspaces and commercial environments.
5000K – Daylight – Bright white daylight appearance for applications where a cooler, more energetic light is preferred.

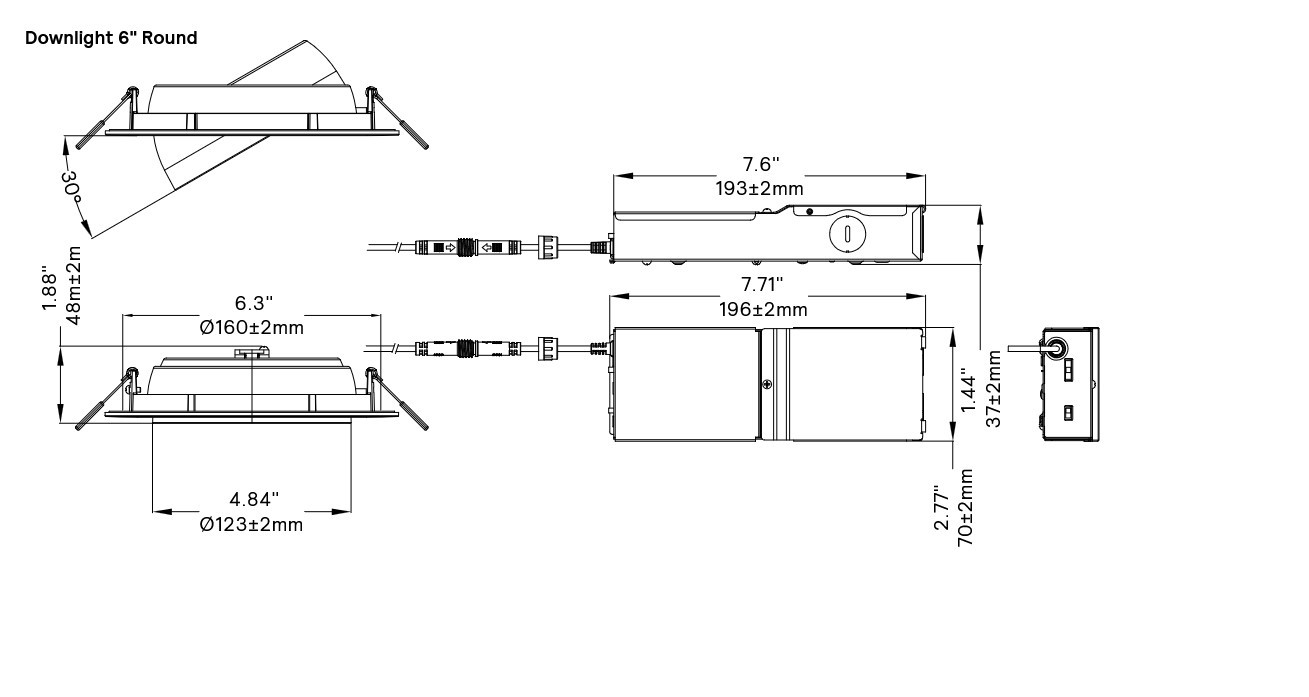

ADJUSTABLE GIMBAL DESIGN
The GB6RSLMZ10SCTUW features an adjustable gimbal capable of approximately 30° tilt and 360° rotation. This allows the installer to direct illumination toward specific areas rather than being limited to straight-down illumination.

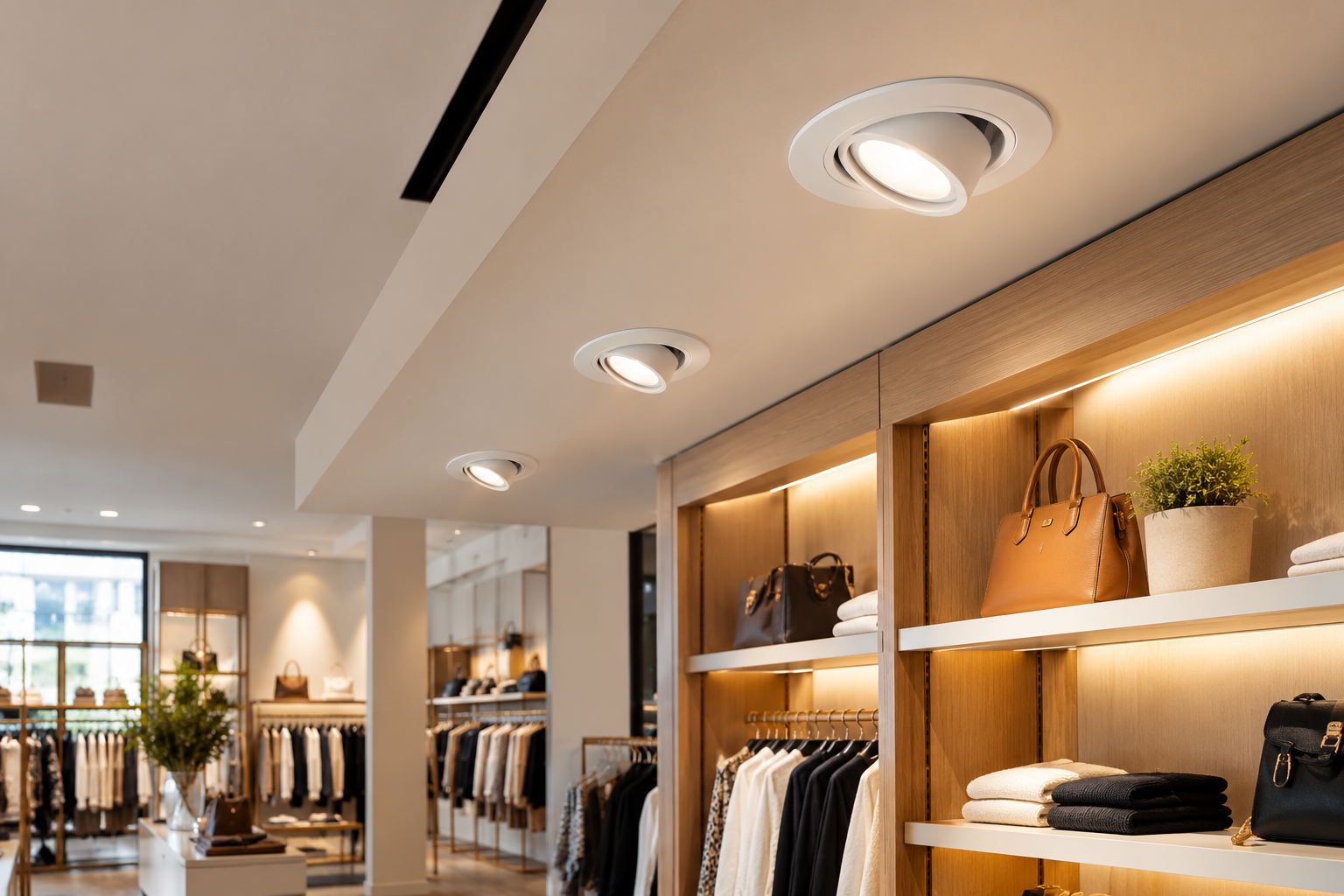

The adjustable design makes this fixture especially useful for accent lighting, artwork, retail displays, merchandise, wall lighting and architectural features.
APPLICATIONS
Ideal for:
• Residential homes
• Apartments and condominiums
• Multifamily properties
• Hotels and hospitality
• Retail stores
• Showrooms
• Restaurants
• Living rooms
• Kitchens
• Hallways
• Artwork lighting
• Accent lighting
• Wall lighting
• Merchandise displays
• Offices
• Commercial buildings
• Architectural lighting
• New construction
• Remodeling projects
• Property management replacement lighting
INSTALLATION
The GB6RSLMZ10SCTUW is an adjustable LED gimbal downlight designed to provide flexible directional illumination.
The lumen output and color temperature can be selected during installation, allowing the installer to configure the fixture for the specific room or application.
Once installed, the gimbal can be tilted and rotated to aim the light toward the desired area. This makes the fixture especially useful where a conventional fixed downlight cannot provide the desired direction of illumination.
FREQUENTLY ASKED QUESTIONS
What is the GB6RSLMZ10SCTUW?
It is a 6-inch round Lightolier by Signify adjustable LED gimbal downlight featuring selectable lumen output, five selectable color temperatures, universal voltage and 0-10V dimming.
How many lumens does it produce?
The fixture provides two field-selectable lumen settings: 900 or 1100 lumens.
How many watts does it use?
The fixture operates at approximately 12 watts or 14 watts, depending on the selected lumen output.
Is the lumen output selectable?
Yes. This is a Dual Select model with selectable 900/1100 lumen output.
What color temperatures are available?
Five settings are available: 2700K, 3000K, 3500K, 4000K and 5000K.
What is the CRI?
The fixture provides 90+ CRI for high-quality color rendering.
Is the GB6RSLMZ10SCTUW dimmable?
Yes. This model features 0-10V dimming.
What voltage does it operate on?
The GB6RSLMZ10SCTUW operates on 120-277V universal voltage.
Does the light swivel or tilt?
Yes. The adjustable gimbal provides approximately 30° of tilt and 360° rotation, allowing the light to be aimed toward a specific area.
Is it suitable for damp locations?
Yes. The fixture is rated for damp-location applications.
Is it IC rated?
Yes. The GB6RSLMZ10SCTUW is IC rated.
Is it ENERGY STAR certified?
Yes. The GB6RSLMZ10SCTUW is ENERGY STAR certified.
Is this a good fixture for retail stores?
Yes. Its adjustable gimbal allows light to be aimed toward merchandise, displays, walls and other focal points, making it an excellent option for retail and showroom applications.
What is the Signify product number?
The Signify product number is 911401837584.
What is the UPC?
The UPC is 190096131945.
Who manufactures GB6RSLMZ10SCTUW?
It is manufactured under the Lightolier brand by Signify.
