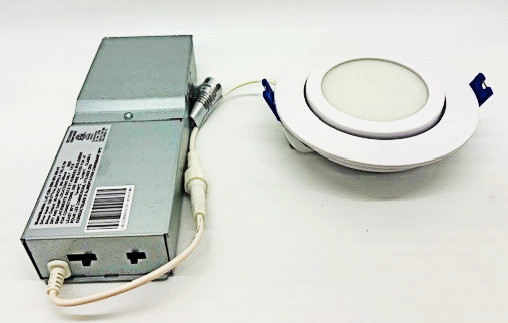

Lightolier GB4RSLMZ10SCTUW 4-Inch LED Gimbal Downlight – Dual Select Lumens & CCT
The Lightolier GB4RSLMZ10SCTUW 4-Inch Round LED Gimbal Downlight by Signify is a versatile adjustable accent and general lighting solution featuring both field-selectable lumen output and five selectable color temperatures.
Designed for residential, hospitality and commercial lighting applications, this low-profile LED gimbal provides directional illumination while allowing installers to choose the desired light output and color temperature during installation.
With selectable 540 or 700 lumen output, selectable 2700K, 3000K, 3500K, 4000K or 5000K color temperature, 90 CRI, universal voltage and 0-10V dimming, the GB4RSLMZ10SCTUW provides exceptional flexibility from a single 4-inch fixture.
Dual Select – Selectable Lumens & Selectable CCT
Lightolier Dual Select technology allows both the lumen output and color temperature to be selected in the field.
Instead of stocking several different fixtures for different light levels and color temperatures, contractors can use one versatile fixture and select the desired settings during installation.
Selectable Lumen Output
Choose between:
- 540 Lumens – approximately 9W
- 700 Lumens – approximately 11W
This makes it easy to adjust the fixture's output for different room sizes, ceiling heights and lighting requirements.
5 Selectable Color Temperatures
Choose from five popular CCT settings:
- 2700K – Warm White
- 3000K – Soft White
- 3500K – Neutral White
- 4000K – Cool White
- 5000K – Daylight
This wide range allows the same Lightolier gimbal downlight to provide warm residential lighting, neutral commercial lighting or crisp daylight illumination.
Adjustable Gimbal for Directional Lighting
Unlike a fixed downlight that directs light straight downward, the Lightolier GB4RSLMZ10SCTUW features an adjustable gimbal design that allows the light to be aimed toward a desired area.
This makes it an excellent choice for accent lighting, artwork, architectural features, walls, displays, retail merchandise and other applications where directional illumination is desired.
90 CRI for Excellent Color Quality
With 90 CRI, the GB4RSLMZ10SCTUW provides excellent color rendering, helping furnishings, artwork, finishes, merchandise and interior colors appear natural and vibrant.
Universal Voltage
The GB4RSLMZ10SCTUW features universal-voltage operation, making it suitable for a wide range of residential and commercial lighting installations.
0-10V Dimming
The Dual Select version features 0-10V dimming, allowing light levels to be adjusted when the fixture is connected to compatible 0-10V lighting controls.
Low-Profile LED Design
The compact LED design makes the GB4RSLMZ10SCTUW an excellent choice for new construction and remodeling applications where a clean, modern adjustable downlight is desired.
Ideal Applications
The Lightolier GB4RSLMZ10SCTUW is ideal for:
- Residential accent lighting
- Kitchens
- Living rooms
- Hallways
- Artwork and wall lighting
- Hotels and hospitality
- Restaurants
- Retail stores
- Merchandise displays
- Offices
- Commercial interiors
- Architectural accent lighting
- Remodels and renovations
- New construction

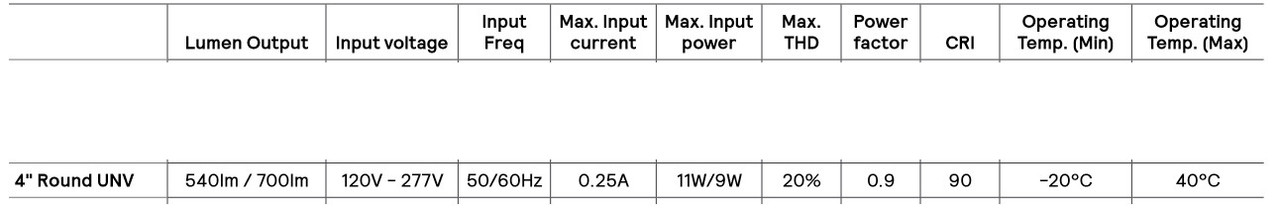

Product Specifications
- Brand: Lightolier
- Manufacturer: Signify / Genlyte Solutions
- Catalog Number: GB4RSLMZ10SCTUW
- Signify Ordering Number: 911401837384
- UPC: 190096131921
- Fixture Type: LED Gimbal Downlight
- Shape: Round
- Nominal Size: 4 Inch
- Selectable Lumens: 540 / 700 Lumens
- Wattage: Approximately 9W / 11W
- Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K
- CRI: 90
- Voltage: Universal Voltage
- Dimming: 0-10V
- Finish: White
- Adjustable Gimbal: Yes
- Field-Selectable Lumens: Yes
- Field-Selectable CCT: Yes
- Dual Select: Yes
- Integrated LED: Yes
- ENERGY STAR: Yes
Key Product Features
- DUAL SELECT LED GIMBAL: Select either 540 or 700 lumens plus five selectable color temperatures from one versatile fixture.
- 5-CCT SELECTABLE: Choose 2700K, 3000K, 3500K, 4000K or 5000K during installation.
- ADJUSTABLE GIMBAL: Directional LED design allows light to be aimed toward walls, artwork, displays or other areas requiring accent illumination.
- 4-INCH ROUND DESIGN: Compact recessed gimbal provides a clean, modern appearance for residential and commercial interiors.
- 90 CRI: Excellent color rendering helps furnishings, artwork, merchandise and finishes appear natural and vibrant.
- 0-10V DIMMING: Compatible with appropriate 0-10V lighting controls for adjustable light output.
- SELECTABLE 9W/11W OUTPUT: Choose approximately 9W/540 lumens or 11W/700 lumens to match the application.
- UNIVERSAL VOLTAGE: Designed for flexible residential and commercial lighting installations.
- ACCENT & GENERAL LIGHTING: Excellent for homes, hotels, restaurants, retail stores, offices and architectural accent lighting.
- LIGHTOLIER BY SIGNIFY: Genuine GB4RSLMZ10SCTUW professional LED gimbal with field-selectable lumen and CCT technology.
Frequently Asked Questions – Lightolier GB4RSLMZ10SCTUW
What is the Lightolier GB4RSLMZ10SCTUW?
The Lightolier GB4RSLMZ10SCTUW by Signify is a 4-inch round adjustable LED gimbal downlight featuring field-selectable lumen output and five selectable color temperatures.
How many lumens does the GB4RSLMZ10SCTUW produce?
The fixture provides two selectable lumen settings: 540 lumens or 700 lumens.
What color temperatures can I select?
The GB4RSLMZ10SCTUW offers five field-selectable color temperatures: 2700K, 3000K, 3500K, 4000K and 5000K.
What does Dual Select mean?
Dual Select means that both the lumen output and color temperature can be selected in the field, giving installers greater flexibility from a single fixture.
Is the GB4RSLMZ10SCTUW adjustable?
Yes. This is a gimbal-style downlight, allowing the light to be aimed toward a desired area instead of only shining straight downward.
What is an LED gimbal downlight used for?
Gimbal downlights are particularly useful for accent lighting, artwork, walls, architectural features, retail displays and other areas where directional lighting is desired. They can also be used for general residential and commercial illumination.
How many watts does the GB4RSLMZ10SCTUW use?
The fixture operates at approximately 9 watts at the lower-output setting and 11 watts at the higher-output setting.
What is the CRI?
The GB4RSLMZ10SCTUW has a 90 CRI, providing excellent color rendering for residential, hospitality, retail and commercial interiors.
Is the GB4RSLMZ10SCTUW dimmable?
Yes. This Dual Select model features 0-10V dimming for use with compatible lighting controls.
Can I use a regular residential TRIAC wall dimmer?
This particular GB4RSLMZ10SCTUW model uses 0-10V dimming. A compatible 0-10V dimming system should be used when dimming is required.
Where can this Lightolier gimbal be used?
The GB4RSLMZ10SCTUW is an excellent choice for homes, kitchens, living areas, hotels, restaurants, retail stores, offices, displays and other residential or commercial spaces requiring adjustable directional lighting.
Is this fixture good for artwork and accent lighting?
Yes. The adjustable gimbal makes the GB4RSLMZ10SCTUW particularly useful for illuminating artwork, walls, architectural features and merchandise displays.
Is this an ENERGY STAR product?
Yes. Signify lists the GB4RSLMZ10SCTUW as an ENERGY STAR qualified product.
Who manufactures the GB4RSLMZ10SCTUW?
The GB4RSLMZ10SCTUW is manufactured by Lightolier, part of Signify's professional lighting portfolio.
What is the exact manufacturer catalog number?
The exact catalog number is GB4RSLMZ10SCTUW. The Signify ordering number is 911401837384, and the UPC is 190096131921.
