The Lightolier by Signify GB3R4ESCT1W Gimbal Dual Select LED Downlight is a versatile 3-inch recessed LED lighting solution designed for accent lighting, task lighting, general illumination and other indoor applications. This compact round gimbal fixture provides directional lighting with 30° tilt and 360° rotation, allowing the light to be aimed toward artwork, merchandise, architectural features, work surfaces and other areas requiring focused illumination.
The GB3R4ESCT1W provides approximately 400 lumens while consuming 8 watts, making it an efficient LED downlight for residential and commercial interiors. The fixture operates at 120V, 60Hz and uses TRIAC dimming down to 5%.
A major feature of the Gimbal Dual Select design is its field-selectable color temperature. The installer can select from 2700K, 3000K, 3500K, 4000K or 5000K at installation, allowing the same fixture to be adapted to warm, neutral or cooler lighting environments.
The fixture provides 90 CRI, supporting accurate and attractive color rendering for applications where the appearance of merchandise, artwork, finishes and interior spaces is important.
The adjustable gimbal provides 30° tilt and 360° rotation, giving installers substantial aiming flexibility while maintaining a clean recessed appearance.
The GB3R4ESCT1W features a white matte finish, a die-cast aluminum flange and an included junction box. It is designed for ceiling installation and is suitable for damp locations. The fixture is also IC rated, AirSeal, ENERGY STAR certified and Title 24 listed.
The Lightolier GB3R4ESCT1W is a practical choice for retail stores, offices, kitchens, living spaces, commercial interiors, accent lighting and remodeling applications where adjustable LED illumination and selectable color temperature are desired.
KEY FEATURES
• Lightolier by Signify Gimbal Dual Select LED Downlight
• 3-inch round recessed gimbal
• Approximately 400 lumens
• 8W LED power consumption
• 120V / 60Hz operation
• Field-selectable 5CCT
• 2700K / 3000K / 3500K / 4000K / 5000K
• 90 CRI
• 30° adjustable tilt
• 360° rotation
• TRIAC dimming to 5%
• White matte finish
• Integrated LED light source
• IC rated
• AirSeal design for reduced air leakage
• Suitable for damp locations
• ENERGY STAR certified
• Title 24 listed
• cETLus listed
• 50,000-hour L70 rated life
• 5-year warranty
• Ideal for accent and directional lighting
TECHNICAL SPECIFICATIONS
Brand: Lightolier by Signify
Catalog Number: GB3R4ESCT1W
Product Family: GB Gimbal Dual Select
Product Type: LED Gimbal Downlight
Fixture Size: 3-inch Round
Light Source: Integrated LED
Luminous Flux: 400 Lumens
Wattage: 8 Watts
Voltage: 120V
Frequency: 60Hz
Current: 0.20A maximum
Power Factor: 0.9
THD: 20% maximum
Color Temperature: Field Selectable
CCT Settings: 2700K / 3000K / 3500K / 4000K / 5000K
CRI: 90
Beam Angle: Approximately 110°
Tilt: 30°
Rotation: 360°
Dimming: TRIAC to 5%
Finish: White Matte
Fixture Diameter: Approximately 3.78 inches
Fixture Height: Approximately 1.45 inches
Mounting: Recessed Ceiling
Housing Material: Aluminum / Steel Junction Box
Operating Temperature: -15°C to 40°C
Rated Life: L70 at 50,000 Hours
Environment: Damp Location Suitable
IC Rated: Yes
AirSeal: Yes
Certifications: cETLus, ENERGY STAR, Title 24, RoHS
Warranty: 5 Years
UPC: 190096196227
Manufacturer Model: 911401884184

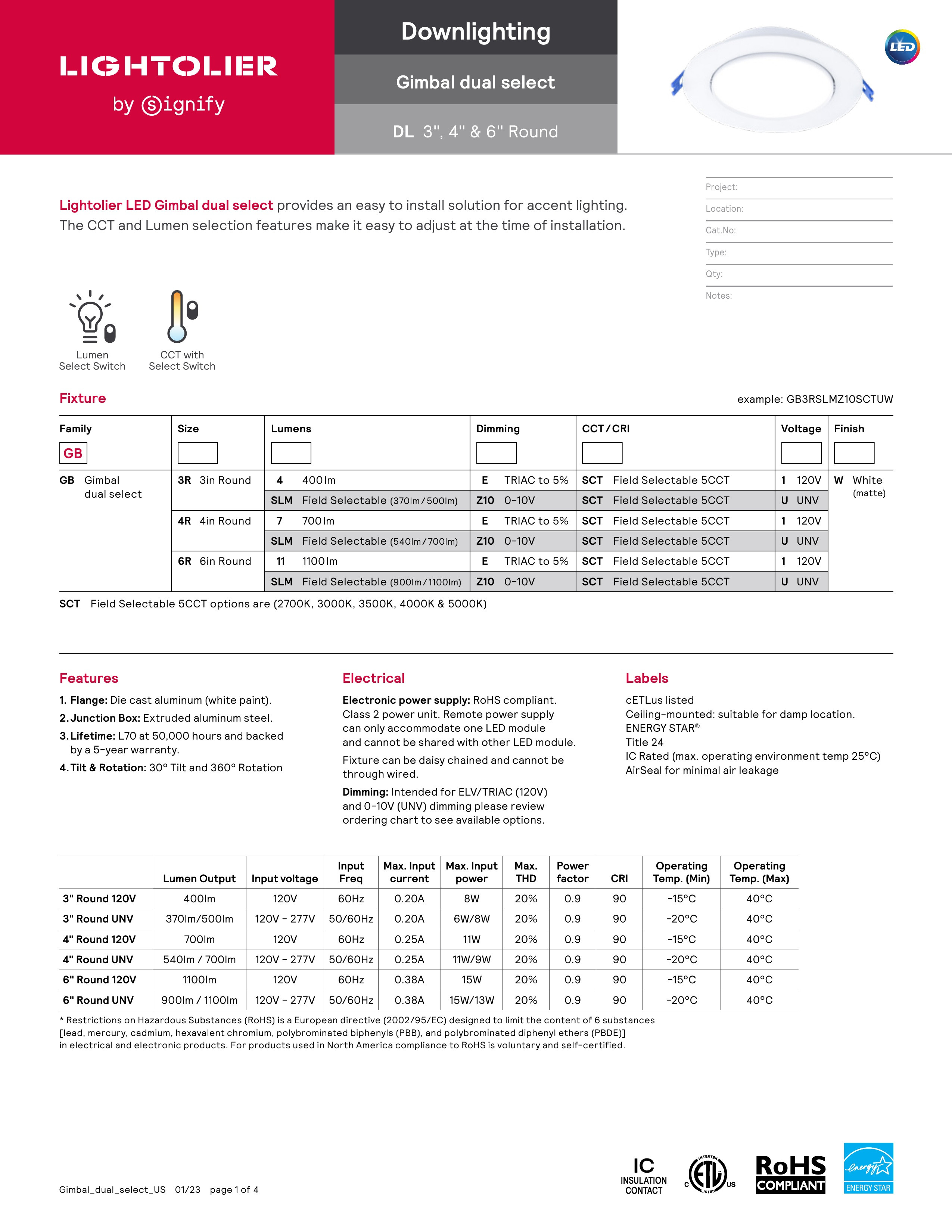

The technical values above are based primarily on the GB Gimbal Dual Select specification sheet.
SELECTABLE COLOR TEMPERATURE
The GB3R4ESCT1W provides five field-selectable color temperatures:
2700K – Warm White – Creates a warm, inviting appearance suitable for residential-style interiors, hospitality and decorative accent applications.
3000K – Warm / Neutral White – A popular choice for retail, residential interiors, restaurants and general accent lighting.
3500K – Neutral White – Provides a balanced appearance suitable for offices, commercial interiors and modern retail spaces.
4000K – Cool / Neutral White – Produces a cleaner, crisper appearance for commercial environments and work areas.
5000K – Daylight – Provides a cooler, daylight-like appearance where a brighter white color is desired.
GIMBAL AIMING
The adjustable gimbal design provides 30° of tilt and 360° of rotation, allowing the fixture to direct light toward specific areas. This makes it particularly useful for accent lighting, artwork, merchandise, architectural features and task areas.
APPLICATIONS
Ideal for:
• Retail stores
• Merchandise displays
• Showrooms
• Art galleries
• Museums
• Offices
• Kitchens
• Living rooms
• Hospitality spaces
• Commercial interiors
• Residential interiors
• Accent lighting
• Task lighting
• Architectural highlighting
• Remodeling projects
• New construction
INSTALLATION
The GB3R4ESCT1W is designed for recessed ceiling installation. The GB Gimbal Dual Select specification sheet identifies the family as ceiling-mounted and suitable for damp locations. The fixture includes a junction box and provides adjustable aiming through its 30° tilt and 360° rotation.
The fixture is IC rated, allowing installation in applications where the fixture is intended for insulation contact, subject to the manufacturer's installation requirements. The specification sheet notes an IC maximum operating environment temperature of 25°C.
Always follow the manufacturer's installation instructions and applicable electrical codes.
FREQUENTLY ASKED QUESTIONS
What is the GB3R4ESCT1W?
It is a Lightolier by Signify 3-inch round Gimbal Dual Select LED recessed downlight with selectable color temperature and adjustable aiming.
How many lumens does it produce?
The detailed GB specification sheet identifies the 120V GB3R4ESCT1W configuration at 400 lumens.
How many watts does it use?
The fixture uses 8 watts maximum input power.
What color temperatures are available?
2700K, 3000K, 3500K, 4000K and 5000K.
Is this a 5CCT fixture?
Yes. The CCT is field selectable between five color temperatures.
What is the CRI?
The fixture is rated at 90 CRI.
Can the light be aimed?
Yes. The gimbal provides 30° tilt and 360° rotation.
Is it dimmable?
Yes. The 120V configuration is designed for TRIAC dimming to 5%.
What voltage does it operate on?
120V, 60Hz.
What color is the fixture?
The GB3R4ESCT1W has a white matte finish.
Is it IC rated?
Yes. The manufacturer specification identifies the fixture as IC rated.
Is it suitable for damp locations?
Yes. The specification identifies the ceiling-mounted fixture as suitable for damp locations.
How long does the LED last?
The fixture is rated L70 at 50,000 hours.
Does it have a warranty?
The product documentation identifies a 5-year warranty.
