The Lightolier by Signify FD8R13ESCT1W is a versatile 8-inch round ultra-thin LED flat downlight designed to provide the clean appearance of traditional recessed lighting without requiring a conventional recessed can housing. Its wafer-thin profile makes it an excellent solution for new construction, remodeling projects and challenging ceilings where space above the ceiling is limited.
The FD8R13ESCT1W delivers approximately 1300 lumens while consuming only 18 watts, providing bright, energy-efficient illumination suitable for residential, multifamily, hospitality, retail and light-commercial applications.
The fixture features five field-selectable color temperatures, allowing the installer to choose 2700K, 3000K, 3500K, 4000K or 5000K during installation. This flexibility allows a single fixture to provide anything from warm residential lighting to crisp daylight illumination.
High 90+ CRI provides excellent color rendering, helping furnishings, flooring, countertops, merchandise and interior finishes appear natural and accurately colored.
The FD8R13ESCT1W operates on 120V and features TRIAC dimming, allowing light levels to be adjusted with a compatible dimmer. The fixture is IC rated, allowing direct contact with insulation, and is rated for wet locations, providing additional flexibility for installation.
The ultra-thin canless design uses a separate junction box and eliminates the need for a traditional recessed housing. This makes the FD8R13ESCT1W an excellent problem-solving downlight for locations where ceiling joists, ductwork or limited plenum space make conventional recessed lighting difficult to install.
KEY FEATURES
• 8-inch round LED flat downlight
• Ultra-thin wafer-style design
• 1300 lumen light output
• Energy-efficient 18-watt LED operation
• Five field-selectable color temperatures
• 2700K / 3000K / 3500K / 4000K / 5000K
• 90+ CRI for excellent color rendering
• 120V operation
• TRIAC dimmable
• Wide approximately 110° beam angle
• Canless installation
• Separate junction box
• IC rated for direct contact with insulation
• Wet-location rated
• ENERGY STAR certified
• ETL listed
• White finish
• Approximately 50,000-hour rated LED life
• Excellent for residential, retail, hospitality and light-commercial applications
TECHNICAL SPECIFICATIONS
Brand: Lightolier by Signify
Catalog Number: FD8R13ESCT1W
Signify Product Number: 911401883784
UPC: 190096196180
Product Family: Flat Downlight
Product Type: Ultra-Thin LED Canless Downlight
Shape: Round
Nominal Size: 8 Inch
Lumen Output: 1300 Lumens
Wattage: 18 Watts
CCT: Field Selectable – 5CCT
Color Temperatures: 2700K / 3000K / 3500K / 4000K / 5000K
CRI: 90+
Voltage: 120V
Dimming: TRIAC Dimmable
Beam Angle: Approximately 110°
Finish: White
Light Source: Integrated LED
Installation: Canless / Ultra-Thin
Ceiling Cutout: Approximately 7.7 Inches
IC Rated: Yes
Location Rating: Wet Location
ENERGY STAR: Certified
Safety Listing: ETL Listed
Rated Life: Approximately 50,000 Hours
Warranty: 5 Years
1300 LUMEN OUTPUT
The FD8R13ESCT1W produces approximately 1300 lumens while using only 18 watts of power.
This provides substantial illumination from an extremely thin fixture and makes the 8-inch downlight a strong option for larger rooms and applications where more light is desired than a typical smaller wafer downlight.
The broad light distribution also helps provide smooth, even general illumination throughout the space.

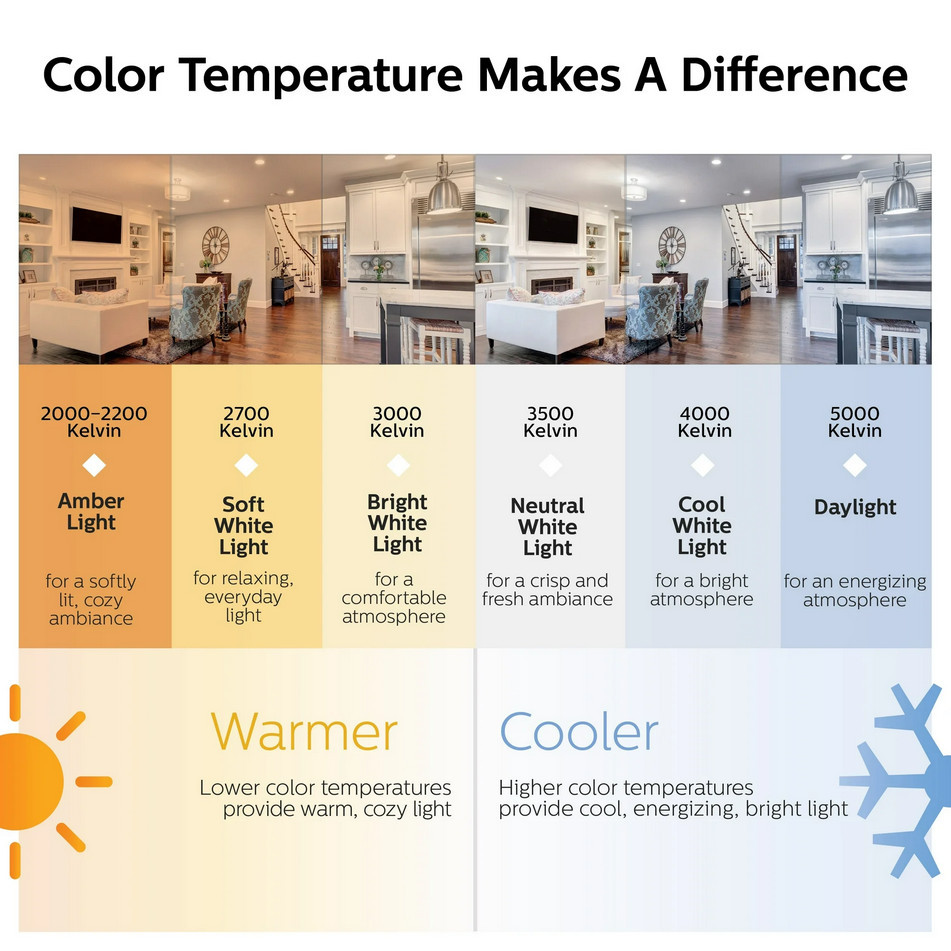

5 SELECTABLE COLOR TEMPERATURES
The FD8R13ESCT1W provides five field-selectable color temperatures:
2700K – Soft / Warm White – Warm, comfortable illumination ideal for bedrooms, living rooms, restaurants and hospitality applications.
3000K – Warm White – Clean warm illumination commonly used throughout homes, apartments, hotels and residential interiors.
3500K – Neutral White – Balanced illumination suitable for both residential and commercial environments.
4000K – Cool / Neutral White – Crisp illumination popular in kitchens, offices, retail spaces and work areas.
5000K – Daylight – Bright white daylight appearance for applications where cooler, more energetic illumination is preferred.
The desired color temperature is selected during installation using the selector located on the fixture's junction box.
ULTRA-THIN CANLESS DESIGN
The FD8R13ESCT1W provides the appearance of a traditional recessed downlight without requiring a conventional recessed can.
Its extremely thin profile makes it especially useful in locations where ceiling joists, ductwork or limited space above the ceiling can interfere with traditional recessed housings.
The fixture installs through approximately a 7.7-inch ceiling opening and uses spring clips to secure the downlight to the ceiling.
APPLICATIONS
Ideal for:
• Residential homes
• Apartments and condominiums
• Multifamily properties
• Hotels and hospitality
• Kitchens
• Living rooms
• Bedrooms
• Bathrooms
• Basements
• Hallways
• Offices
• Retail stores
• Showrooms
• Restaurants
• Commercial interiors
• New construction
• Remodeling projects
• Property management replacement lighting
• Ceilings with limited plenum space
INSTALLATION
The FD8R13ESCT1W is a canless ultra-thin LED downlight, eliminating the need for a conventional recessed housing.
The included independent junction box houses the electrical connections and the color-temperature selector. During installation, the desired 2700K, 3000K, 3500K, 4000K or 5000K setting can be selected before positioning the fixture in the ceiling.
The fixture is then secured into the ceiling opening using integrated spring clips.
Because the fixture is IC rated, it can be installed in applications where direct contact with insulation is required.
FREQUENTLY ASKED QUESTIONS
What is the FD8R13ESCT1W?
It is an 8-inch round Lightolier by Signify ultra-thin LED canless downlight providing 1300 lumens, five selectable color temperatures and TRIAC dimming.
How many lumens does it produce?
The fixture produces approximately 1300 lumens.
How many watts does it use?
The FD8R13ESCT1W consumes approximately 18 watts.
Is the lumen output selectable?
No. This model provides a fixed 1300-lumen output. The color temperature is selectable.
What color temperatures are available?
Five settings are available: 2700K, 3000K, 3500K, 4000K and 5000K.
What is the CRI?
The fixture provides 90+ CRI for high-quality color rendering.
Is FD8R13ESCT1W dimmable?
Yes. This model features TRIAC dimming.
Is this a 0-10V fixture?
No. The FD8R13ESCT1W is the 120V TRIAC-dimming version. The similar FD8RSLMZ10SCTUW is the universal-voltage 0-10V version. Signify Assets
Does it require a recessed can?
No. This is an ultra-thin canless downlight and does not require a traditional recessed housing.
What size ceiling opening does it require?
The recommended cutout is approximately 7.7 inches (195 mm).
Is it IC rated?
Yes. It is IC rated for direct contact with insulation.
Can it be installed in a wet location?
Yes. This fixture is listed as suitable for wet locations.
Is it ENERGY STAR certified?
Yes. The FD8R13ESCT1W is ENERGY STAR certified.
What is the Signify product number?
The Signify product number is 911401883784.
What is the UPC?
The UPC is 190096196180.
Who manufactures FD8R13ESCT1W?
It is manufactured under the Lightolier brand by Signify.
