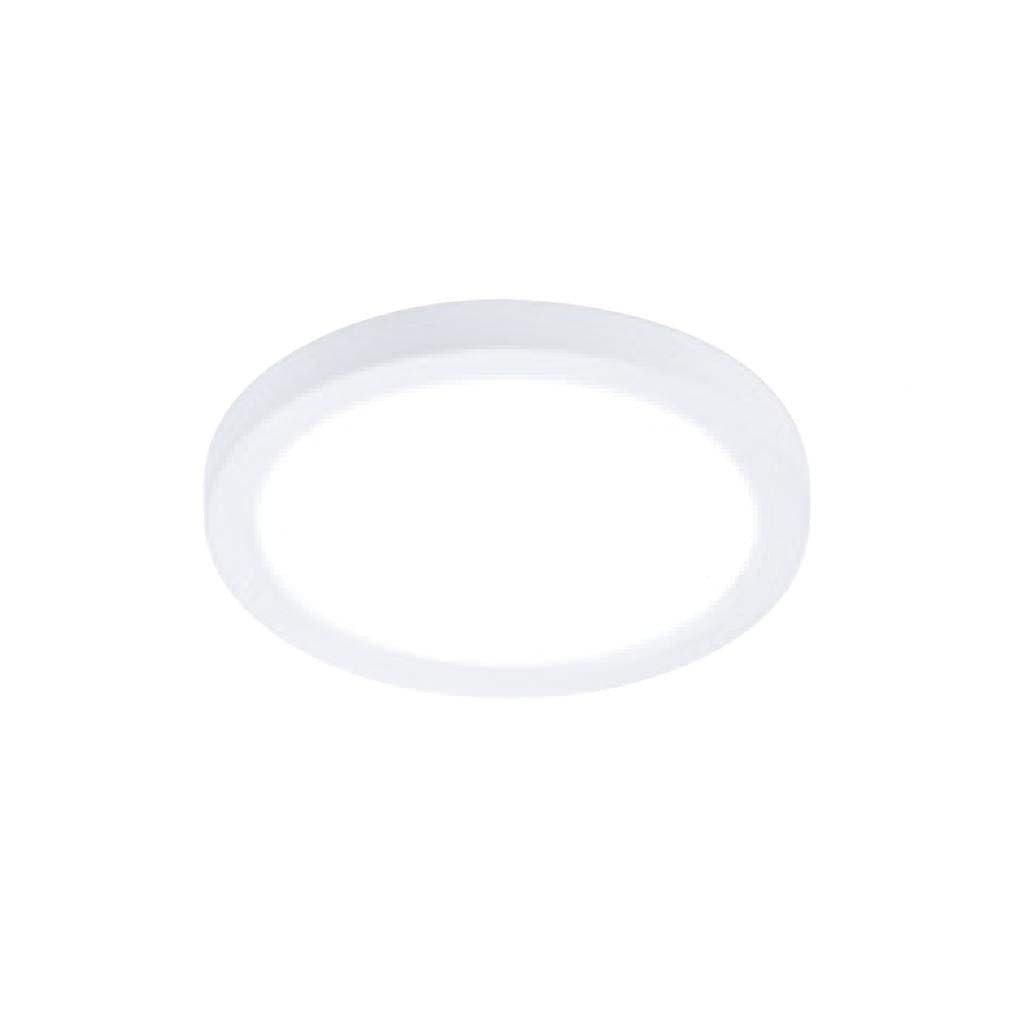

The Lightolier SD9R12ESCT1W is a versatile 9-inch round LED surface-mount downlight designed to provide the clean appearance of recessed lighting without requiring a traditional recessed can. Its slim, low-profile design makes it an excellent solution for residential, multifamily, hospitality and light-commercial applications, especially where ceiling space is limited.
The SD9R12ESCT1W delivers approximately 1200 lumens while consuming approximately 16 watts, providing bright, energy-efficient LED illumination for kitchens, living rooms, hallways, bedrooms, offices, apartments and other interior spaces.
The fixture features five field-selectable color temperatures: 2700K, 3000K, 3500K, 4000K or 5000K. This allows the installer to select the desired light appearance during installation without purchasing separate fixtures for different color temperatures.
High 90 CRI provides excellent color rendering so furnishings, finishes, countertops, flooring and interior spaces appear natural and accurately colored.
The SD9R12ESCT1W operates on 120V and features TRIAC / phase-cut dimming, making it particularly well suited for residential and other 120V applications using compatible wall dimmers.
Unlike the SD9RSLMZ10SCTUW Dual Select commercial model, the SD9R12ESCT1W has a fixed 1200-lumen output. The color temperature remains field selectable, but the lumen output is not selectable.
The surface-mount design installs to a compatible junction box and eliminates the need for a conventional recessed housing, making it an excellent problem-solving fixture for remodeling, new construction and replacement lighting applications.
KEY FEATURES
• 9-inch round LED surface-mount downlight
• 1200 lumen light output
• Approximately 16W LED operation
• Five selectable color temperatures
• 2700K / 3000K / 3500K / 4000K / 5000K
• 90 CRI for excellent color rendering
• 120V operation
• TRIAC / phase-cut dimmable
• Integrated LED light source
• Slim, low-profile design
• Surface-mount installation
• No traditional recessed can required
• Installs to a compatible junction box
• White finish
• Field-selectable CCT
• Fixed 1200-lumen output
• ENERGY STAR certified
• Long-life LED technology
• Excellent for residential and multifamily applications
• Suitable for kitchens, bedrooms, hallways and living areas
TECHNICAL SPECIFICATIONS
Brand: Lightolier
Catalog Number: SD9R12ESCT1W
Product Number: 911401883884
UPC: 190096196197
Product Family: Surface Mount Downlight
Product Type: LED Surface-Mount Downlight
Shape: Round

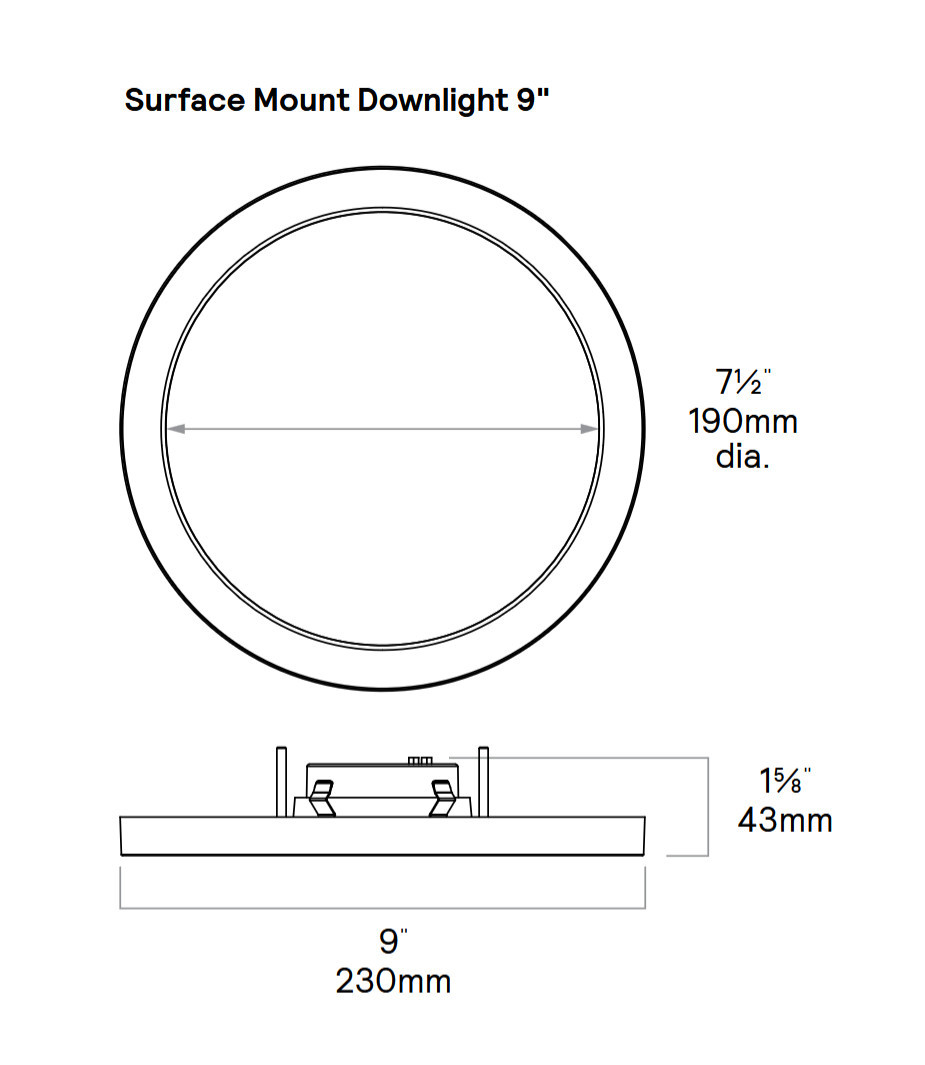

Nominal Size: 9 Inch
Lumen Output: 1200 Lumens
Wattage: Approximately 16W
CCT: Field Selectable – 5CCT
Color Temperatures: 2700K / 3000K / 3500K / 4000K / 5000K
CRI: 90 Minimum
Voltage: 120V
Dimming: TRIAC / Phase-Cut Dimming
Finish: White
Mounting: Surface Mount
Light Source: Integrated LED
Lumen Selection: Fixed 1200 Lumens
Color Selection: Field Selectable
Rated Life: Approximately 50,000 Hours
ENERGY STAR: Certified
1200 LUMEN OUTPUT
The SD9R12ESCT1W provides approximately 1200 lumens of bright, efficient illumination.
Unlike the SD9RSLMZ10SCTUW Dual Select model, the SD9R12ESCT1W does not have selectable lumen output.
Its output is fixed at approximately 1200 lumens, making it a straightforward choice for applications where a consistent higher light level is desired.
The 9-inch size and 1200-lumen output make the fixture particularly useful for larger rooms and areas where more illumination is desired than smaller 5-inch or 7-inch surface-mount downlights typically provide.

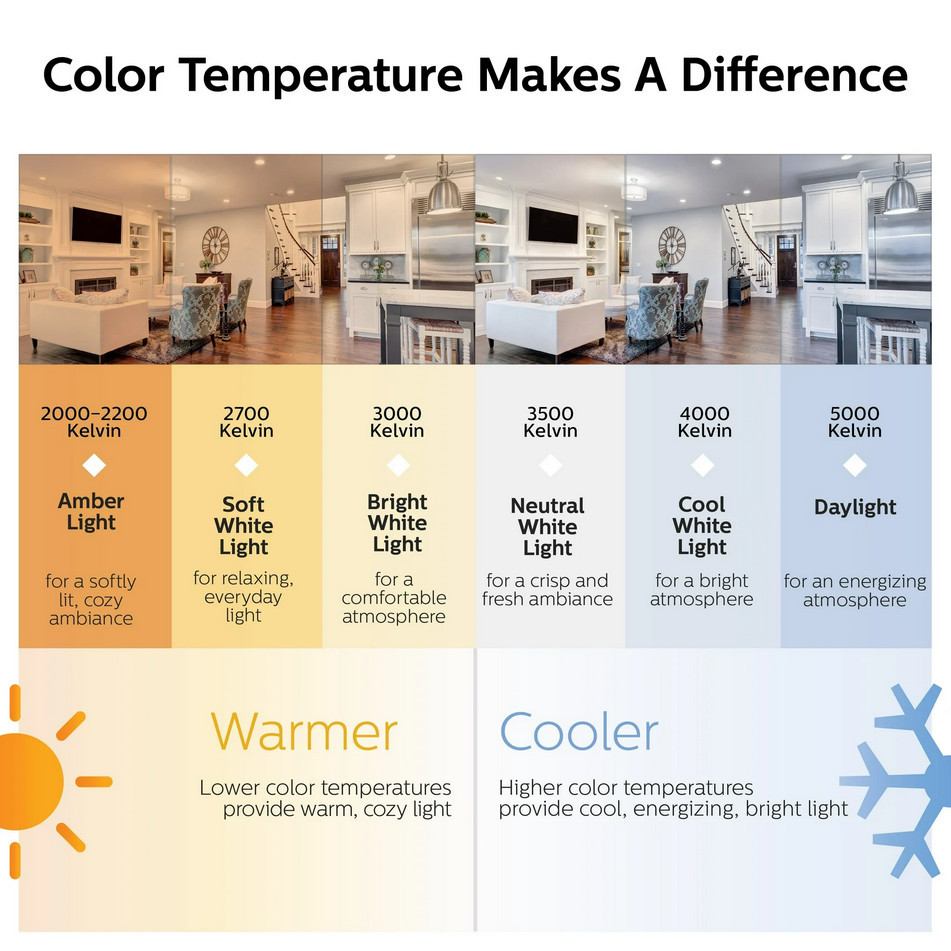

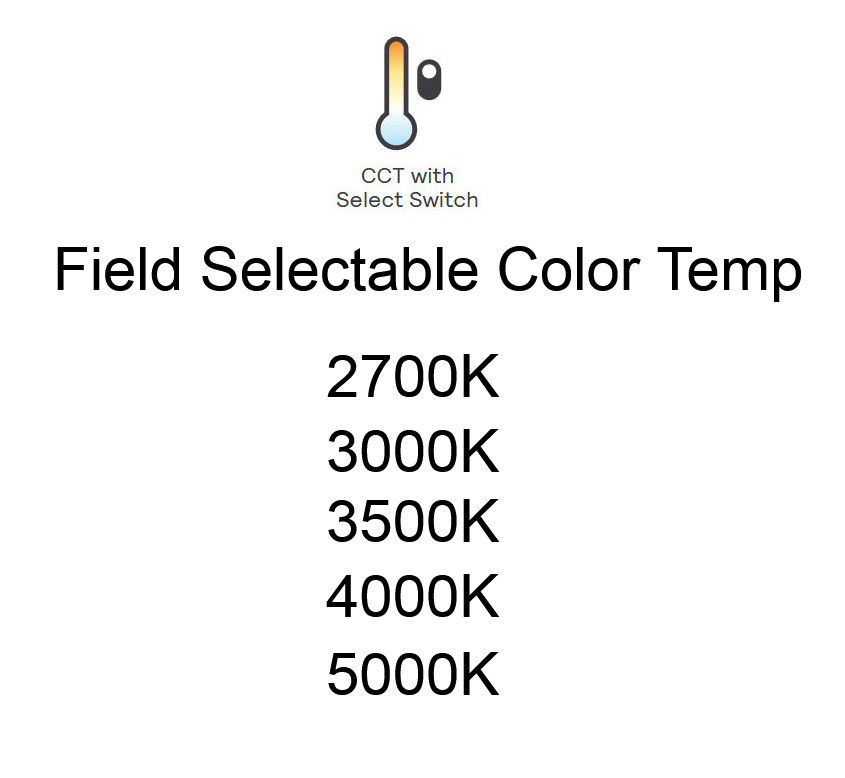

5 SELECTABLE COLOR TEMPERATURES
The fixture provides five field-selectable color temperatures:
2700K – Soft / Warm White
Warm, comfortable illumination ideal for bedrooms, living rooms, restaurants, hospitality areas and other relaxing environments.
3000K – Warm White
Clean warm illumination commonly used throughout homes, apartments, hotels and residential interiors.
3500K – Neutral White
Balanced illumination suitable for residential and light-commercial environments.
4000K – Cool / Neutral White
Crisp illumination popular in kitchens, offices, work areas and commercial spaces.
5000K – Daylight
Bright daylight-white illumination for applications where a cooler and more energetic light appearance is preferred.
The desired CCT can be selected during installation, allowing one fixture to accommodate multiple rooms and applications.
120V TRIAC DIMMING
The SD9R12ESCT1W operates on 120V and is designed for use with compatible TRIAC / phase-cut dimming controls.
This makes it especially convenient for residential installations where traditional wall-box LED dimmers are commonly used.
This is an important distinction from the similar SD9RSLMZ10SCTUW, which is designed for universal-voltage commercial applications and uses 0-10V dimming.
SURFACE-MOUNT DESIGN
The SD9R12ESCT1W provides the appearance of a recessed downlight without requiring a traditional recessed housing.
Its low-profile surface-mount design makes it particularly useful in locations where conventional recessed cans are difficult or impractical to install.
The fixture mounts to a compatible junction box, providing a clean, contemporary appearance while minimizing how far the fixture extends below the ceiling.
APPLICATIONS
Ideal for:
• Residential homes
• Apartments
• Condominiums
• Multifamily properties
• Kitchens
• Bedrooms
• Living rooms
• Family rooms
• Bathrooms
• Hallways
• Entryways
• Closets
• Home offices
• Hotels and hospitality
• Light-commercial spaces
• Offices
• Property management replacement lighting
• Remodeling projects
• New construction
• Ceilings with limited space
INSTALLATION
The SD9R12ESCT1W is a surface-mount LED downlight designed to provide the appearance of recessed lighting without requiring a traditional recessed can.
The fixture installs to a compatible junction box and operates on a 120V electrical system.
During installation, the desired 2700K, 3000K, 3500K, 4000K or 5000K color temperature can be selected.
Once installed, the fixture can be dimmed using an appropriate compatible TRIAC / phase-cut LED dimmer.
FREQUENTLY ASKED QUESTIONS
What is the SD9R12ESCT1W?
It is a 9-inch round Lightolier LED surface-mount downlight with 1200-lumen output and five selectable color temperatures.
How many lumens does it produce?
The fixture produces approximately 1200 lumens.
Is the lumen output selectable?
No. The SD9R12ESCT1W has a fixed 1200-lumen output.
What color temperatures are available?
The fixture provides 2700K, 3000K, 3500K, 4000K and 5000K settings.
Is the color temperature selectable?
Yes. The desired CCT can be selected during installation.
What is the CRI?
The fixture provides 90 CRI for high-quality color rendering.
What voltage does it use?
The SD9R12ESCT1W operates on 120V.
Is it dimmable?
Yes. The fixture supports TRIAC / phase-cut dimming with compatible controls.
Does it require a recessed can?
No. This is a surface-mount downlight and does not require a traditional recessed housing.
What size is the fixture?
It is a nominal 9-inch round surface-mount downlight.
Does it have an integrated LED?
Yes. The fixture uses an integrated LED light source.
Is it ENERGY STAR certified?
Yes.
What is the rated LED life?
Approximately 50,000 hours.
What is the product number?
The Lightolier / Signify product number is 911401883884.
What is the UPC?
The UPC is 190096196197.
What is the difference between SD9R12ESCT1W and SD9RSLMZ10SCTUW?
The SD9R12ESCT1W is the 120V TRIAC-dimming version with fixed 1200-lumen output. The SD9RSLMZ10SCTUW is the universal-voltage commercial version with selectable 900/1200-lumen output and 0-10V dimming.
Who manufactures the SD9R12ESCT1W?
The SD9R12ESCT1W is manufactured under the Lightolier brand by Signify.
