The Lightolier SD9RSLMZ10SCTUW is a versatile 9-inch round LED surface-mount downlight featuring both field-selectable lumen output and field-selectable color temperature. Its slim, low-profile design provides the clean appearance of recessed lighting without requiring a traditional recessed can, making it an excellent solution for challenging ceilings and applications with limited plenum space.
The SD9RSLMZ10SCTUW features Dual Select technology, allowing the installer to choose between 900 or 1200 lumens as well as five color temperatures: 2700K, 3000K, 3500K, 4000K or 5000K. This flexibility allows a single fixture to accommodate a wide variety of residential, multifamily, hospitality and commercial lighting applications.
The fixture provides energy-efficient integrated LED illumination with high 90 CRI, helping furnishings, finishes, merchandise and interior spaces appear natural and accurately colored.
Unlike the standard 120V version, the SD9RSLMZ10SCTUW features universal voltage and 0-10V dimming, making it especially useful for commercial, multifamily and hospitality projects requiring commercial-grade dimming controls.
The surface-mount design installs to a compatible junction box and eliminates the need for a conventional recessed housing. Its shallow profile makes it an excellent problem-solving downlight for remodeling, new construction and replacement lighting applications.
KEY FEATURES
• 9-inch round LED surface-mount downlight
• Dual Select – selectable lumens and selectable CCT
• 900 or 1200 lumen field-selectable output
• Five selectable color temperatures
• 2700K / 3000K / 3500K / 4000K / 5000K
• 90 CRI for excellent color rendering
• Universal 120-277V operation
• 0-10V dimming
• Approximately 106° wide beam angle
• Slim, low-profile design
• Surface-mount installation
• No traditional recessed can required
• Excellent solution for challenging ceilings
• Integrated LED light source
• White finish
• IC rated
• Wet-location rated
• ENERGY STAR certified
• ETL listed
• RoHS compliant
• Excellent for residential, hospitality, multifamily and commercial applications
TECHNICAL SPECIFICATIONS
Brand: Lightolier
Catalog Number: SD9RSLMZ10SCTUW
Product Number: 911401838884
UPC: 190096131822
Product Family: Surface Mount Downlight Dual Select
Product Type: LED Surface-Mount Downlight
Shape: Round
Nominal Size: 9 Inch
Lumen Output: 900 / 1200 Lumens Selectable
CCT: Field Selectable – 5CCT
Color Temperatures: 2700K / 3000K / 3500K / 4000K / 5000K
CRI: 90 Minimum
Voltage: 120-277V Universal Voltage
Dimming: 0-10V
Finish: White
Mounting: Surface Mount
Light Source: Integrated LED
Beam Angle: Approximately 106°
IC Rated: Yes
Location Rating: Wet Location
ENERGY STAR: Certified
Safety Listing: ETL Listed
RoHS: Compliant
DUAL SELECT LUMEN OUTPUT
The SD9RSLMZ10SCTUW allows the installer to select between two light-output levels:
900 Lumens – Lower Output Setting
1200 Lumens – Higher Output Setting
The selectable lumen feature allows one fixture to cover multiple lighting requirements. This flexibility can help contractors, property managers and distributors reduce the number of different fixtures they need to purchase and stock.
The higher-output setting provides substantial illumination for larger spaces, while the lower-output setting is useful where a softer light level is desired.

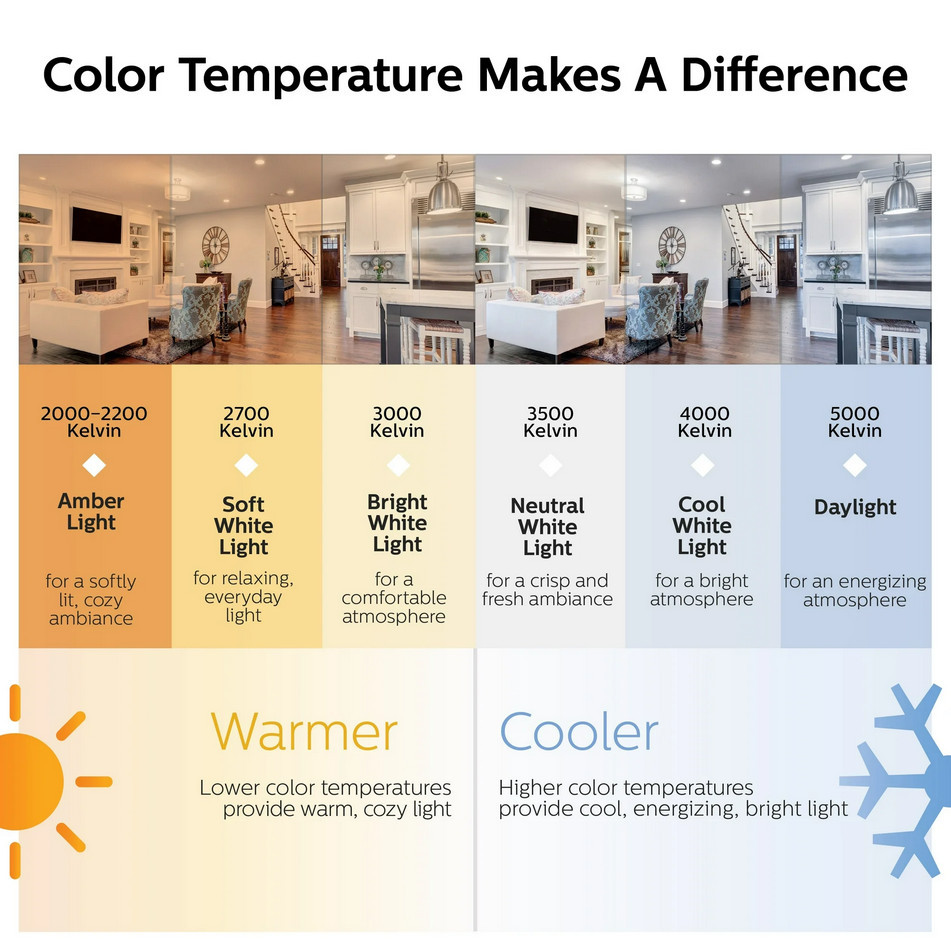

5 SELECTABLE COLOR TEMPERATURES
The SD9RSLMZ10SCTUW provides five field-selectable color temperatures:
2700K – Soft / Warm White – Warm, comfortable illumination ideal for bedrooms, living areas, restaurants and hospitality applications.
3000K – Warm White – Clean warm illumination commonly used throughout homes, apartments, hotels and residential spaces.
3500K – Neutral White – Balanced illumination suitable for both residential and commercial environments.
4000K – Cool / Neutral White – Crisp illumination popular in kitchens, offices, work areas and commercial spaces.
5000K – Daylight – Bright white daylight appearance for applications where cooler, more energetic illumination is preferred.
The selectable CCT feature allows contractors, property managers and homeowners to choose the desired light appearance during installation instead of stocking separate fixtures for each color temperature.
SURFACE-MOUNT DESIGN
The SD9RSLMZ10SCTUW provides the appearance of a recessed downlight without requiring a traditional recessed can.
Its surface-mount design installs to a compatible junction box, making it especially useful in locations where conventional recessed housings are difficult or impractical to install.
The low-profile design creates a clean, contemporary appearance while minimizing the amount the fixture projects below the ceiling.
WIDE LIGHT DISTRIBUTION
The SD9RSLMZ10SCTUW provides an approximately 106° beam angle, producing broad, even illumination throughout the space.
The wide distribution makes the fixture particularly effective for general lighting applications where smooth, uniform coverage is desired.
APPLICATIONS
Ideal for:
• Residential homes
• Apartments and condominiums
• Multifamily properties
• Hotels and hospitality
• Kitchens
• Bedrooms
• Living rooms
• Bathrooms
• Hallways
• Entryways
• Offices
• Retail spaces
• Restaurants
• Commercial buildings
• Multifamily common areas
• New construction
• Remodeling projects
• Property management replacement lighting
• Ceilings with limited plenum space
INSTALLATION
The SD9RSLMZ10SCTUW is a surface-mount LED downlight, providing the appearance of recessed lighting without requiring a conventional recessed can.
The fixture is designed to mount to a compatible junction box, making installation especially useful where ceiling construction prevents installation of a traditional recessed housing.
Both the lumen output and color temperature are field selectable, allowing the installer to configure the fixture for the specific room or application during installation.
Its 120-277V universal-voltage operation and 0-10V dimming make this model particularly suitable for commercial, multifamily and hospitality projects.
FREQUENTLY ASKED QUESTIONS
What is the SD9RSLMZ10SCTUW?
It is a 9-inch round Lightolier LED surface-mount downlight featuring selectable lumen output, five selectable color temperatures, universal voltage and 0-10V dimming.
How many lumens does it produce?
The fixture provides two field-selectable lumen settings: 900 or 1200 lumens.
Is the lumen output selectable?
Yes. This is a Dual Select model that allows the installer to select the light output during installation.
What color temperatures are available?
Five settings are available: 2700K, 3000K, 3500K, 4000K and 5000K.
Is the color temperature selectable?
Yes. Both the lumen output and color temperature are field selectable.
What is the CRI?
The fixture provides a minimum 90 CRI for excellent color rendering.
Is the SD9RSLMZ10SCTUW dimmable?
Yes. This model features 0-10V dimming.
What voltage does it operate on?
The fixture operates on 120-277V universal voltage.
Is this the TRIAC dimming version?
No. The SD9RSLMZ10SCTUW is the universal-voltage 0-10V dimming version.
Does it require a recessed can?
No. This is a surface-mount downlight and does not require a traditional recessed housing.
What size is the fixture?
It is a nominal 9-inch round surface-mount downlight.
What is the beam angle?
The beam angle is approximately 106 degrees, providing broad general illumination.
Is it IC rated?
Yes.
Can it be used in wet locations?
Yes. The fixture is rated for wet-location applications when installed according to manufacturer requirements.
Is it ENERGY STAR certified?
Yes.
What is the product number?
The product number is 911401838884.
What is the UPC?
The UPC is 190096131822.
Who manufactures the SD9RSLMZ10SCTUW?
The SD9RSLMZ10SCTUW is manufactured under the Lightolier brand.
