The Lightolier by Signify GB4R7ESCT1W is a 4-inch round adjustable LED gimbal downlight designed for residential and hospitality applications where directional lighting and installation flexibility are important. The adjustable gimbal allows the light to be aimed toward walls, artwork, architectural features, countertops and other areas where focused illumination is desired.
Producing 700 lumens while using only 11 watts, the GB4R7ESCT1W provides efficient LED illumination with 90 CRI for excellent color rendering. The fixture features five field-selectable color temperatures — 2700K, 3000K, 3500K, 4000K and 5000K — allowing the installer to select the desired light appearance during installation.
The GB4R7ESCT1W operates on 120V and features TRIAC dimming down to 5% when used with a compatible LED dimmer. Its low-profile canless design and remote junction box make it an excellent solution for new construction and remodeling applications where a traditional recessed housing may not be practical.
The fixture features a clean matte white finish and approximately 110° beam angle. It is IC rated, damp-location rated, ENERGY STAR certified, ETL listed and Title 24 compliant.
• 4-inch round adjustable LED gimbal downlight
• 700 lumen light output
• 11W LED power consumption
• Five selectable color temperatures
• 2700K / 3000K / 3500K / 4000K / 5000K
• 90 CRI for excellent color rendering
• 120V operation
• TRIAC dimming down to approximately 5%
• Adjustable gimbal design for directional lighting
• Approximately 110° beam angle
• Matte white finish
• Canless installation design
• Remote junction box
• IC rated
• Damp-location rated
• ENERGY STAR certified
• Title 24 compliant
• ETL listed
• RoHS compliant
• Approximately 50,000-hour rated LED life
Brand: Lightolier by Signify
Catalog Number: GB4R7ESCT1W
Signify Product Number: 911401837284
UPC: 190096131860
Product Family: Lightolier Gimbal LED
Fixture Type: Adjustable LED Gimbal Downlight
Nominal Size: 4 Inch
Shape: Round
Light Output: 700 Lumens
Wattage: 11 Watts
Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K
CCT Selectable: Yes – 5CCT
CRI: 90
Voltage: 120V
Dimming: TRIAC, down to approximately 5%
Beam Angle: Approximately 110°
Finish: Matte White
Housing: IC Rated
Location Rating: Damp Location
ENERGY STAR: Certified
Title 24: Compliant
ETL Listed: Yes
RoHS Compliant: Yes
Rated Life: Approximately 50,000 Hours

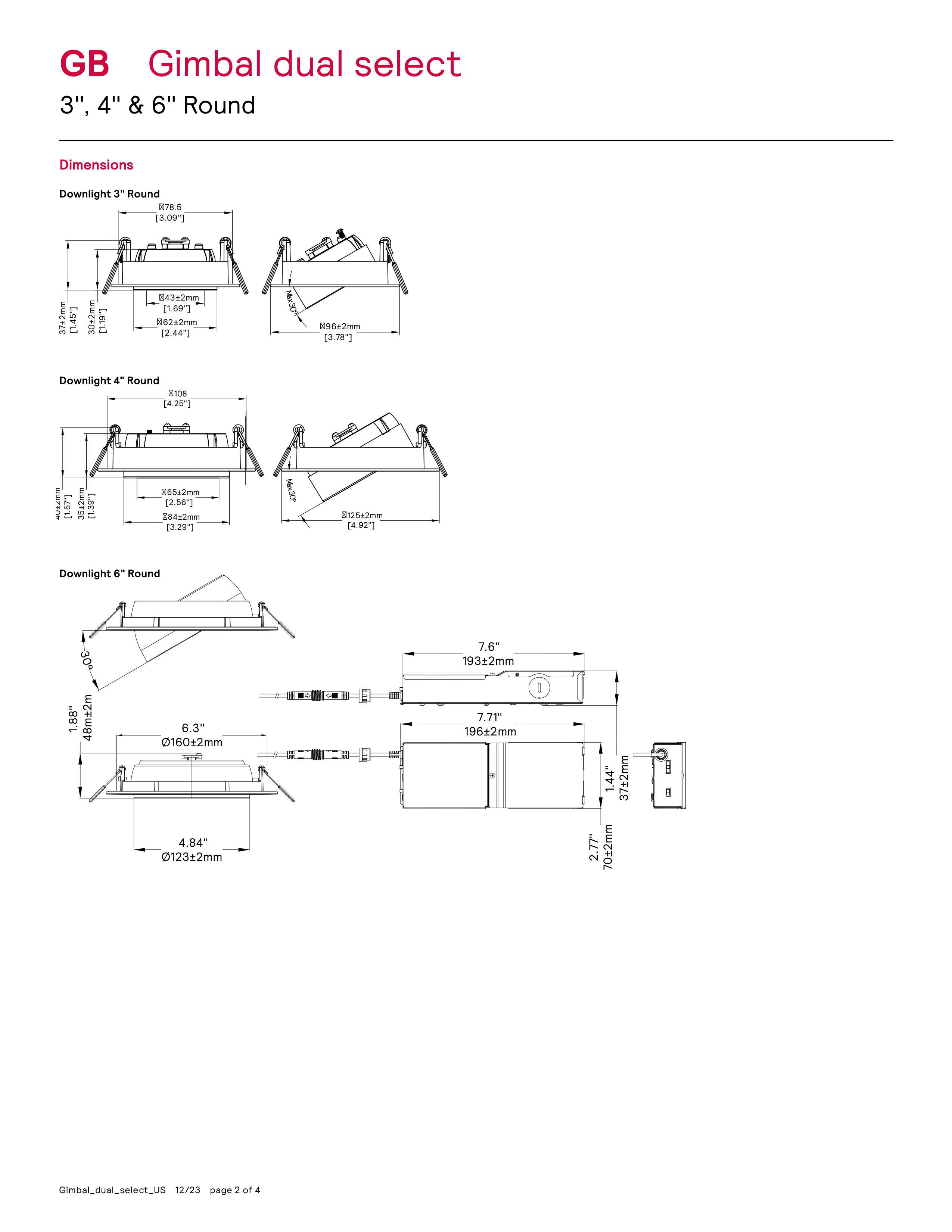

Approximate Dimensions: 4.92" diameter x 1.57" high
Unlike a standard fixed downlight, the GB4R7ESCT1W features an adjustable gimbal that allows the LED light source to be aimed toward a specific area.
This makes the fixture particularly useful for highlighting artwork, fireplaces, architectural details, cabinets, countertops, retail displays and other areas where directional illumination is preferred.
The fixture provides five field-selectable color temperatures:
2700K – Warm white similar to traditional incandescent lighting
3000K – Warm white commonly used throughout residential interiors
3500K – Balanced neutral-white appearance
4000K – Clean neutral-white illumination
5000K – Bright daylight appearance
The desired color temperature can be selected during installation, allowing one fixture to accommodate a wide range of room styles and lighting preferences.
The GB4R7ESCT1W produces approximately 700 lumens while consuming only 11 watts, providing efficient general and accent illumination.
Its high 90 CRI helps colors, furnishings, artwork and interior finishes appear natural and accurately rendered.
The low-profile LED gimbal is designed for canless installation and does not require a traditional recessed can housing.
The remote junction box provides the electrical connection while the fixture mounts directly into the ceiling opening, making it useful for both remodeling and new-construction applications.
Ideal for:
• Kitchens
• Living rooms
• Bedrooms
• Hallways
• Home offices
• Artwork and wall displays
• Accent lighting
• Architectural features
• Fireplace lighting
• Countertops
• Hospitality applications
• Hotels
• Apartments and condominiums
• Residential remodeling
• New construction
What is the GB4R7ESCT1W?
It is a 4-inch round adjustable LED gimbal downlight manufactured by Lightolier by Signify.
How many lumens does it produce?
The fixture produces 700 lumens.
How many watts does it use?
It consumes approximately 11 watts.
Is the GB4R7ESCT1W color selectable?
Yes. It offers five selectable color temperatures: 2700K, 3000K, 3500K, 4000K and 5000K.
Is the lumen output selectable?
No. This particular model has a fixed 700-lumen output.
Is the fixture adjustable?
Yes. The gimbal design allows the light to be aimed for directional and accent lighting.
What is the CRI?
The fixture provides 90 CRI.
What voltage does it use?
The GB4R7ESCT1W operates on 120V.
Is it dimmable?
Yes. It supports TRIAC dimming down to approximately 5% when used with a compatible LED dimmer.
Does it require a recessed can?
No. This is a low-profile canless downlight designed for installation without a traditional recessed can housing.
Is it IC rated?
Yes.
Is it wet-location rated?
No. This model is listed for damp locations, not wet locations.
Is it ENERGY STAR certified?
Yes.
What is the UPC?
The UPC is 190096131860.
What is the Signify product number?
The Signify product number is 911401837284.
What is the difference between GB4R7ESCT1W and GB4RSLMZ10SCTUW?

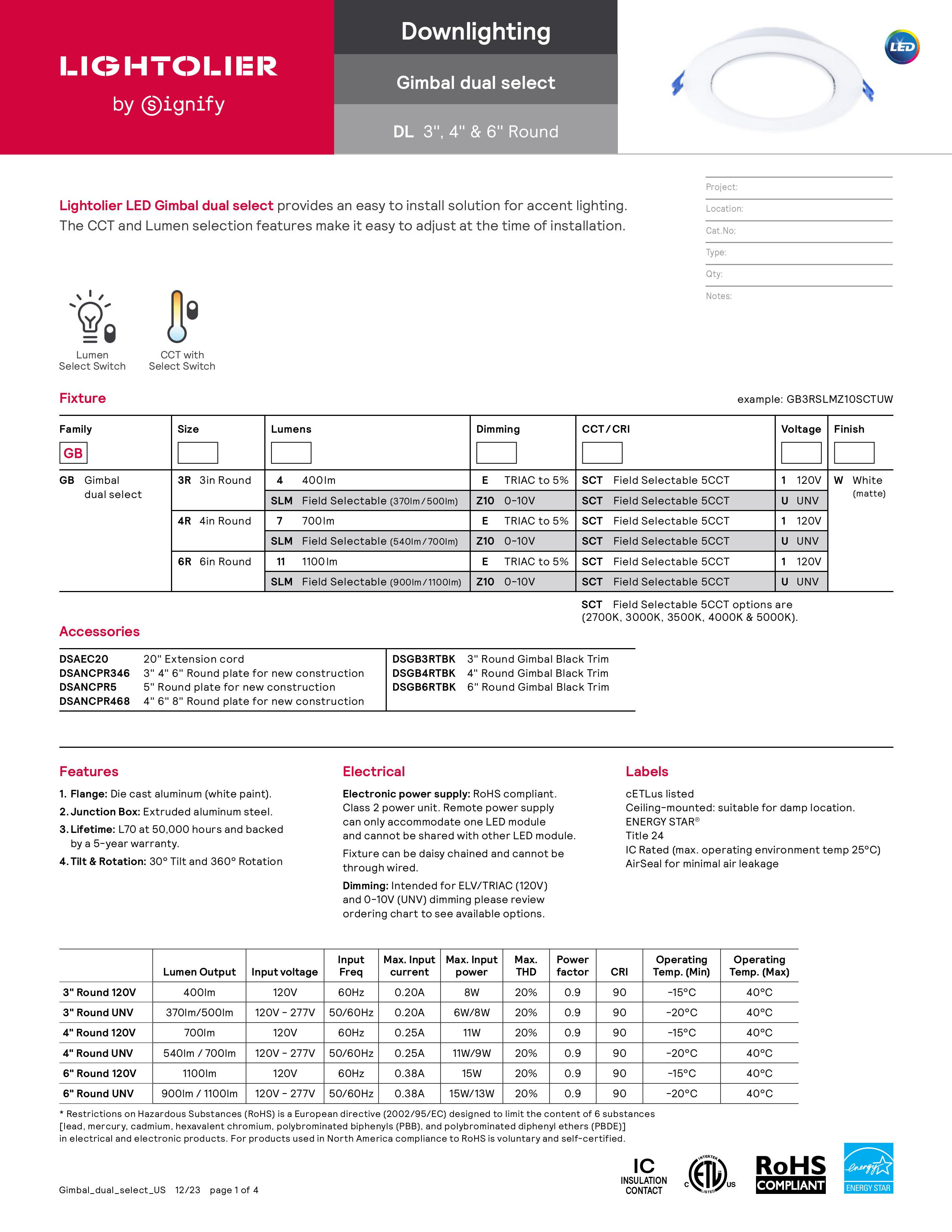

GB4R7ESCT1W provides a fixed 700-lumen output, operates on 120V and uses TRIAC dimming. GB4RSLMZ10SCTUW provides selectable 540/700-lumen output, universal voltage and 0–10V dimming.
