Lightolier by Signify DL4RSLMZ10SCTUW 4" LED Canless Downlight – 540/700 Lumens, 5CCT Selectable, 0-10V Dimmable, Universal Voltage, 90 CRI, WhiteLightolier$11.26
Loading...
Loading...
Loading...
Loading...
No reviews have been added for this product.
385 French Collins Road Conway, SC 29526
(843) 347-0408

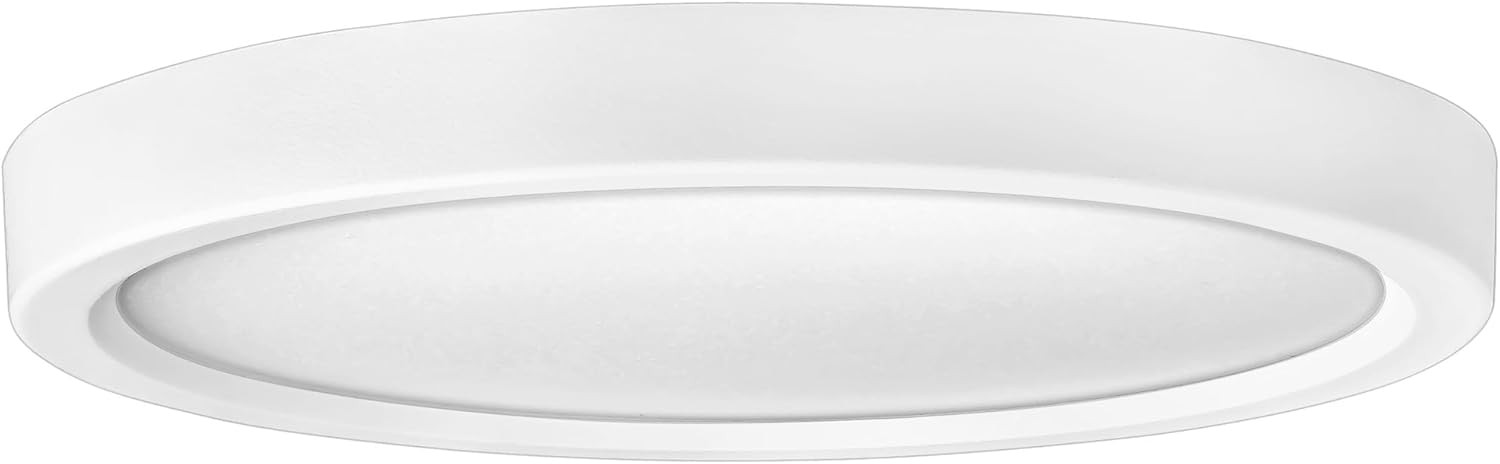

The Lightolier by Signify SD5RSLMZ10SCTUW is a versatile 5-inch round LED surface-mount downlight featuring both field-selectable lumen output and field-selectable color temperature. Its slim, low-profile design provides the clean appearance of recessed lighting without requiring a traditional recessed can, making it an excellent solution for challenging ceilings and applications with limited plenum space.
The SD5RSLMZ10SCTUW features Dual Select technology, allowing the installer to choose between 540 or 700 lumens as well as five color temperatures: 2700K, 3000K, 3500K, 4000K or 5000K. This flexibility allows a single fixture to accommodate a wide variety of residential, multifamily, hospitality and commercial lighting applications.
The fixture operates at approximately 9 watts at 540 lumens or 11 watts at 700 lumens, providing energy-efficient LED illumination. High 90 CRI delivers excellent color rendering so furnishings, finishes and interior spaces appear natural and accurately colored.
Unlike the standard 120V TRIAC version, the SD5RSLMZ10SCTUW features universal voltage and 0-10V dimming, making it especially useful for commercial and multifamily projects that require commercial-grade dimming controls.
The surface-mount design installs to a compatible junction box and eliminates the need for a conventional recessed housing. The fixture's extremely slim profile makes it an excellent problem-solving downlight for remodeling, new construction and replacement lighting applications.
• 5-inch round LED surface-mount downlight
• Dual Select – selectable lumens and selectable CCT
• 540 or 700 lumen field-selectable output
• 9W / 11W selectable operation
• Five selectable color temperatures
• 2700K / 3000K / 3500K / 4000K / 5000K
• 90 CRI for excellent color rendering
• Universal voltage operation
• 0-10V dimming
• Slim, low-profile design
• Surface-mount installation
• No traditional recessed can required
• Excellent solution for challenging ceilings
• White matte finish
• ENERGY STAR certified
• Suitable for residential, hospitality, multifamily and commercial applications
Brand: Lightolier by Signify
Catalog Number: SD5RSLMZ10SCTUW
Signify Product Number: 911401836584
UPC: 190096131792
Product Family: Surface Mount Downlight Dual Select
Product Type: LED Surface-Mount Downlight
Shape: Round
Nominal Size: 5 Inch
Lumen Output: 540 / 700 Lumens Selectable
Wattage: 9W / 11W
CCT: Field Selectable – 5CCT
Color Temperatures: 2700K / 3000K / 3500K / 4000K / 5000K
CRI: 90 Minimum
Voltage: Universal Voltage
Dimming: 0-10V
Finish: White Matte
Mounting: Surface Mount
Light Source: Integrated LED
Beam Angle: Approximately 108°
Maximum Output: Approximately 716 Delivered Lumens
Efficacy: Approximately 68 lm/W at tested configuration
ENERGY STAR: Certified
The SD5RSLMZ10SCTUW allows the installer to select between two light-output levels:
540 Lumens – Approximately 9 Watts
700 Lumens – Approximately 11 Watts
The selectable lumen feature allows one fixture to cover multiple lighting requirements and can help contractors, property managers and distributors reduce the number of different fixtures they need to stock.
The fixture also provides five field-selectable color temperatures:
2700K – Soft / Warm White – Warm, comfortable illumination ideal for bedrooms, living areas, restaurants and hospitality applications.
3000K – Warm White – Clean warm illumination commonly used throughout homes, apartments, hotels and residential spaces.
3500K – Neutral White – Balanced light suitable for both residential and commercial environments.
4000K – Cool / Neutral White – Crisp illumination popular in kitchens, offices, work areas and commercial spaces.
5000K – Daylight – Bright white daylight appearance for applications where a cooler, more energetic light is preferred.
Ideal for:
• Residential homes
• Apartments and condominiums
• Multifamily properties
• Hotels and hospitality
• Kitchens
• Bedrooms
• Living rooms
• Hallways
• Offices
• Retail spaces
• Commercial buildings
• New construction
• Remodeling projects
• Property management replacement lighting
• Ceilings with limited plenum space
The SD5RSLMZ10SCTUW is a surface-mount LED downlight, providing the appearance of recessed lighting without requiring a traditional recessed can.
Its extremely slim profile makes it particularly useful for challenging ceilings and locations where conventional recessed housings are difficult or impractical to install.
The lumen output and color temperature can be selected during installation, giving installers the flexibility to configure the fixture for the specific room or application.
What is the SD5RSLMZ10SCTUW?
It is a 5-inch round Lightolier by Signify LED surface-mount downlight featuring selectable lumen output, five selectable color temperatures, universal voltage and 0-10V dimming.
How many lumens does it produce?
The fixture provides two field-selectable lumen settings: 540 or 700 lumens.
How many watts does it use?
Depending on the selected output, the fixture operates at approximately 9 or 11 watts.
Is the lumen output selectable?
Yes. This is a Dual Select model with selectable 540/700 lumen output.
What color temperatures are available?
Five settings are available: 2700K, 3000K, 3500K, 4000K and 5000K.
What is the CRI?
The fixture provides a minimum 90 CRI for high-quality color rendering.
Is SD5RSLMZ10SCTUW dimmable?
Yes. This model features 0-10V dimming.
Is this a TRIAC dimming fixture?
No. The SD5RSLMZ10SCTUW is the 0-10V dimming version. The similar SD5R7ESCT1W is the 120V TRIAC version.
Does it require a recessed can?
No. This is a surface-mount downlight and does not require a conventional recessed housing.
Is the color temperature selectable?
Yes. Both the lumen output and CCT are field selectable.
What is the Signify product number?
The Signify product number is 911401836584.
What is the UPC?
The UPC is 190096131792.
Who manufactures SD5RSLMZ10SCTUW?
It is manufactured under the Lightolier brand by Signify.
