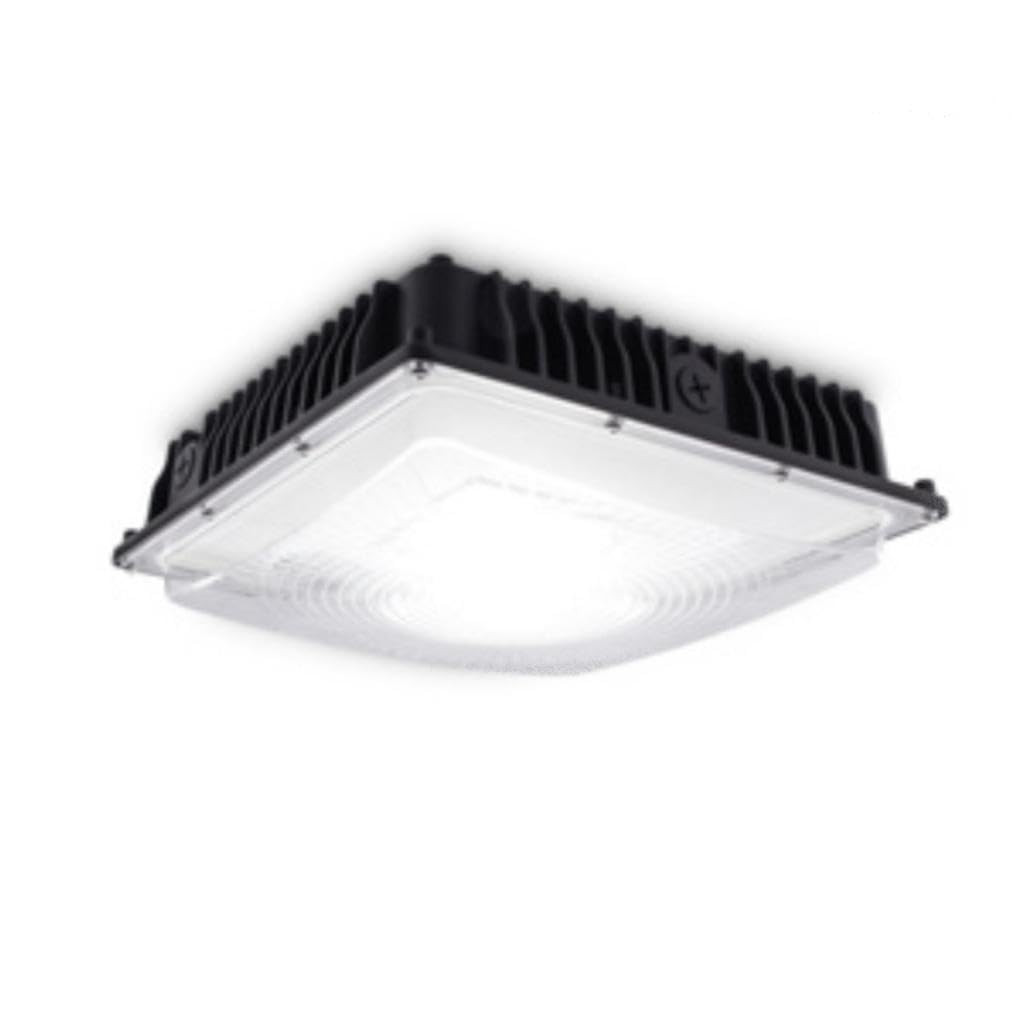

The Stonco GC90-SCT-G2-SM-5-10-BZ Garage & Canopy DualSelect is a rugged, high-output LED surface-mount canopy fixture designed for parking garages, covered walkways, building entrances, loading areas, warehouses and other commercial applications requiring dependable, uniform illumination.
The GC90 features DualSelect technology, allowing the installer to choose between 70W, 80W or 90W operation as well as three selectable color temperatures: 3000K, 4000K or 5000K. This flexibility allows one fixture to accommodate multiple commercial lighting requirements and helps reduce the number of different fixtures contractors and property managers need to stock.
Depending on the selected wattage and color temperature, the GC90 provides approximately 9,800 to 12,850 lumens, delivering substantial illumination for parking garages and commercial canopy applications.
The fixture features a rugged die-cast housing with bronze finish and a UV-stabilized frosted lens designed to provide uniform illumination while protecting the LED system and driver.
The GC90 operates on 120-347V universal voltage, allowing it to be used in a wide variety of commercial and institutional electrical systems.
An integrated motion and daylight sensor provides additional lighting-control flexibility. The fixture can respond to occupancy and available daylight, helping reduce unnecessary energy consumption in areas such as parking garages that may experience varying levels of activity throughout the day.
The fixture is IP65 rated, providing protection against dust and water intrusion for demanding covered outdoor and commercial environments.
KEY FEATURES
• LED garage and canopy light
• DualSelect selectable wattage and color temperature
• 70W / 80W / 90W selectable wattage
• 3000K / 4000K / 5000K selectable CCT
• Up to approximately 12,850 lumens
• 70 CRI
• 120-347V universal voltage
• Type V symmetric light distribution
• Integrated motion and daylight sensor
• Sensor can be disabled when continuous operation is desired
• Rugged die-cast housing
• UV-stabilized frosted lens
• Bronze finish
• IP65 rated
• Surface-mount design
• Pendant mounting capability
• Uniform wide-area illumination
• Long-life integrated LED technology
• Excellent for parking garages and covered areas
• Suitable for commercial and institutional applications
TECHNICAL SPECIFICATIONS
Brand: Stonco
Catalog Number: GC90-SCT-G2-SM-5-10-BZ
Product Number: 911401872281
UPC: 190096131327
Product Family: Garage & Canopy DualSelect
Product Type: LED Garage / Canopy Luminaire
Generation: Generation 2
Wattage: 70W / 80W / 90W Selectable
Color Temperature: 3000K / 4000K / 5000K Selectable
CRI: 70
Voltage: 120-347V
Distribution: Type V Symmetric
Mounting: Surface Mount / Pendant Mount
Housing: Die-Cast Construction
Lens: UV-Stabilized Frosted Lens
Finish: Bronze
Ingress Protection: IP65
Controls: Integrated Motion and Daylight Sensor
Light Source: Integrated LED
Rated Lumen Maintenance: L70 Greater Than 60,000 Hours
Maximum Lumen Output: Approximately 12,850 Lumens
SELECTABLE WATTAGE & LUMEN OUTPUT
The GC90 allows the installer to select from three wattage settings:
70 Watts – approximately 9,800 to 10,500 lumens, depending on selected CCT.
80 Watts – approximately 10,800 to 11,700 lumens, depending on selected CCT.
90 Watts – approximately 11,700 to 12,850 lumens, depending on selected CCT.
This field-selectable design allows a single fixture to accommodate different mounting heights and illumination requirements.
For areas requiring maximum illumination, the 90W setting provides up to approximately 12,850 lumens.
For locations requiring less light, the 70W or 80W settings allow power consumption and light output to be reduced without replacing the fixture.

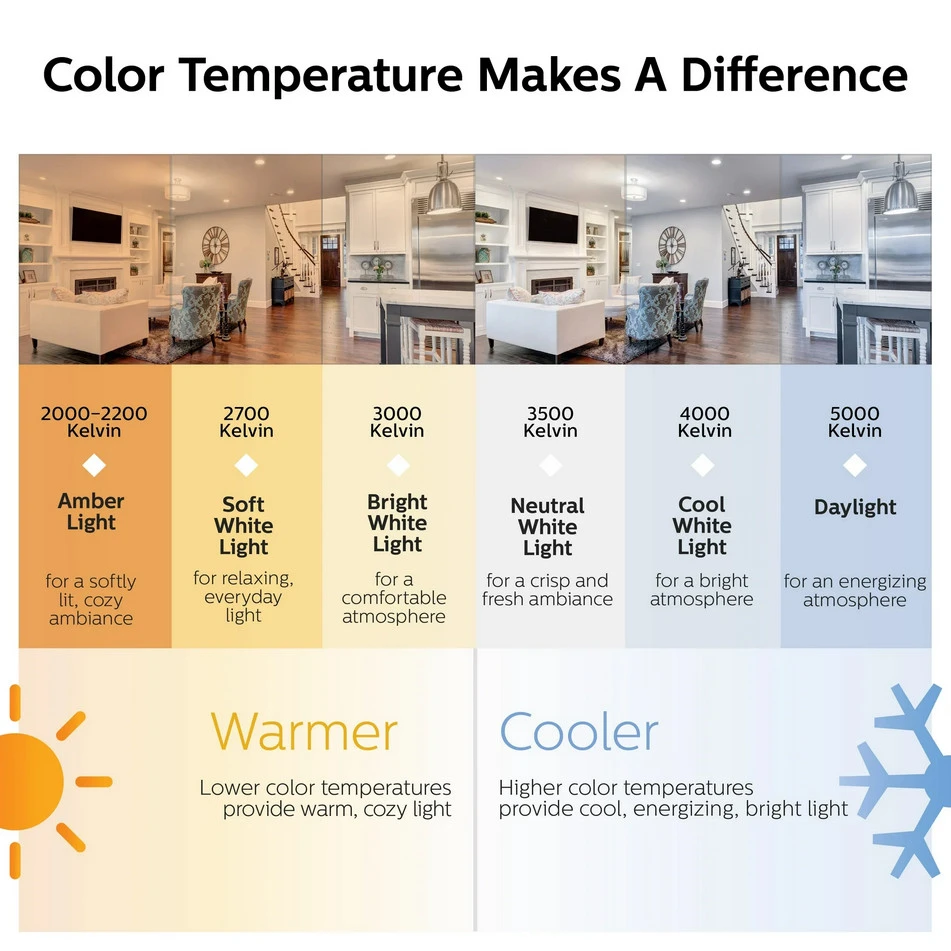

3 SELECTABLE COLOR TEMPERATURES
The GC90 provides three field-selectable color temperatures:
3000K – Warm White – Provides a warmer, more comfortable appearance suitable for hospitality areas, covered entrances and architectural applications.
4000K – Neutral White – Provides clean, balanced commercial illumination and is an excellent choice for parking garages, walkways and general commercial environments.
5000K – Daylight White – Provides crisp, bright-white illumination for applications where maximum visual clarity and a cooler appearance are preferred.
The desired color temperature can be selected during installation using the fixture's internal CCT selector.
INTEGRATED MOTION & DAYLIGHT SENSOR
The GC90 incorporates an integrated motion and daylight sensor designed to provide additional energy savings and lighting-control flexibility.
The sensor can respond to occupancy and available ambient light, making it especially useful in parking garages, covered walkways, warehouses and other areas where activity levels vary throughout the day.
The sensor can also be disabled, allowing the fixture to remain continuously illuminated when required.
TYPE V SYMMETRIC DISTRIBUTION
The fixture features a Type V symmetric distribution, designed to spread illumination broadly around the fixture.
This makes the GC90 especially effective when mounted overhead in parking garages, covered entrances, drive-through areas and commercial canopies where broad, uniform illumination is required.
RUGGED IP65 CONSTRUCTION
The GC90 is designed for demanding commercial environments.
Its die-cast housing protects the LEDs and driver, while the rugged UV-stabilized frosted lens helps provide uniform illumination and protects the internal lighting system.
The fixture carries an IP65 rating, providing protection against dust intrusion and water jets.
This rugged construction makes the fixture particularly well suited for parking garages, covered outdoor areas and other commercial environments exposed to moisture, dust and changing weather conditions.
APPLICATIONS
Ideal for:
• Parking garages
• Parking structures
• Covered parking areas
• Commercial canopies
• Covered walkways
• Building entrances

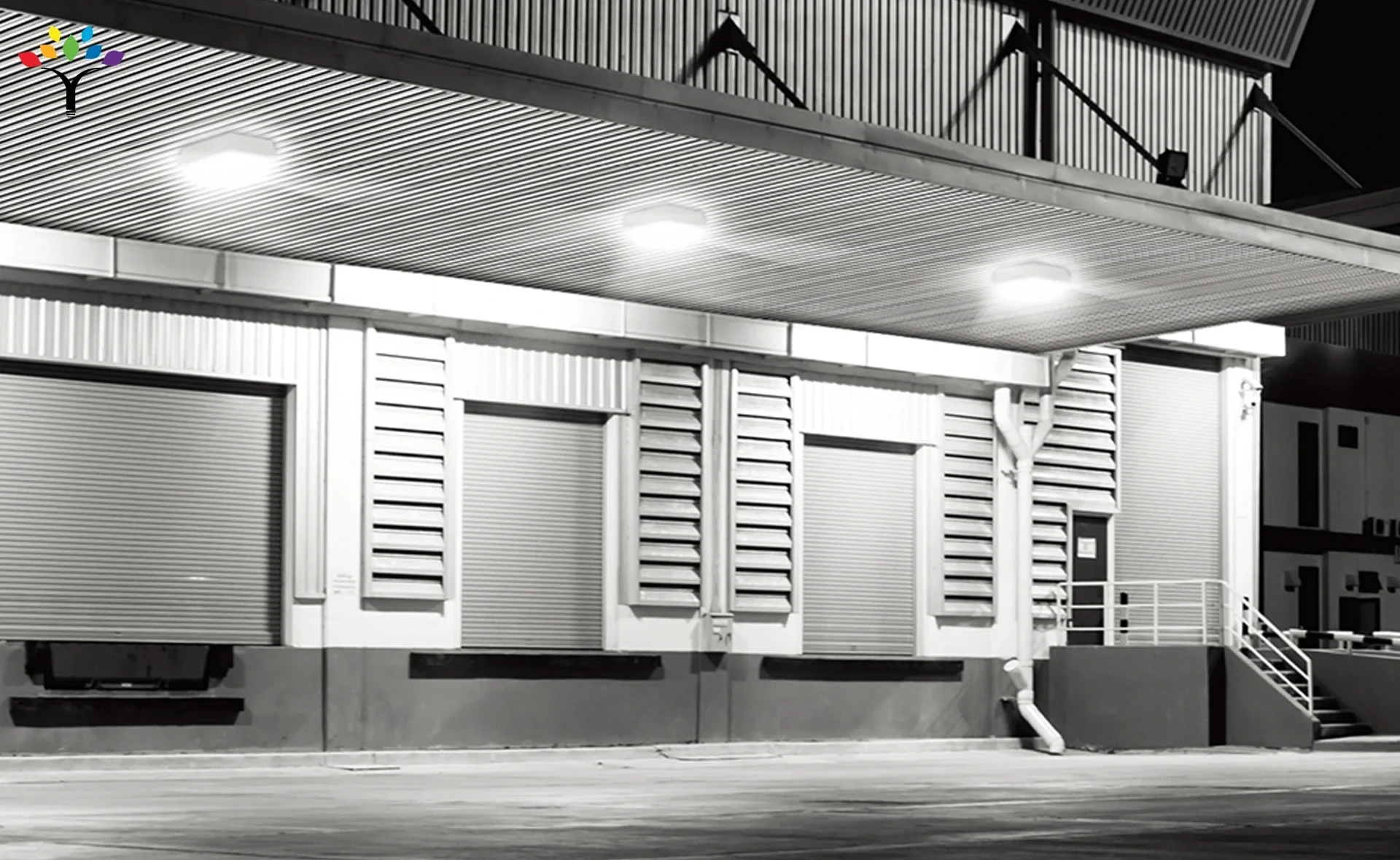

• Loading areas
• Warehouses
• Municipal buildings
• Schools and universities
• Airports
• Hospitals and healthcare facilities
• Office buildings
• Banks
• Retail stores
• Large retailers
• Hospitality properties
• Apartment and condominium parking areas
• Commercial buildings
• Institutional facilities
INSTALLATION
The GC90-SCT-G2-SM-5-10-BZ is designed primarily for surface mounting to ceilings and overhead structures and can also accommodate pendant-mount applications.
During installation, the desired 70W, 80W or 90W wattage setting can be selected along with the desired 3000K, 4000K or 5000K color temperature.
The fixture operates on 120-347V, providing compatibility with a wide range of commercial electrical systems.
For installations exposed to moisture, the mounting surface should be properly sealed according to installation requirements to maintain the fixture's weather-resistant performance.
FREQUENTLY ASKED QUESTIONS
What is the GC90-SCT-G2-SM-5-10-BZ?
It is a Stonco Generation 2 LED garage and canopy fixture featuring selectable wattage, selectable color temperature, universal voltage and integrated motion/daylight sensing.
What wattages can be selected?
The fixture provides three field-selectable settings: 70W, 80W and 90W.
How many lumens does it produce?
Depending on the wattage and color-temperature settings, output ranges from approximately 9,800 to 12,850 lumens.
What is the maximum lumen output?
Maximum output is approximately 12,850 lumens at the appropriate 90W configuration.
What color temperatures are available?
The fixture provides selectable 3000K, 4000K and 5000K settings.
Is the color temperature selectable?
Yes. The CCT can be selected during installation.
What does SCT mean?
SCT indicates the fixture has selectable color temperature.
What does G2 mean?
G2 identifies this fixture as Generation 2.
What does SM mean?
SM identifies the fixture as a surface-mount configuration.
What does the 5 indicate?
The 5 identifies the fixture's Type V symmetric light distribution.
What voltage does it operate on?
The fixture operates on 120-347V.
What color is the fixture?
This model has a bronze finish.
Does it have a motion sensor?
Yes. The fixture incorporates an integrated motion and daylight sensor.
Can the sensor be turned off?
Yes. The sensor can be disabled when continuous fixture operation is desired.
Is it weather resistant?
Yes. The fixture carries an IP65 rating.
Can it be used in parking garages?
Yes. Parking garages and covered parking structures are primary applications for this fixture.
Can it be pendant mounted?
Yes. The Garage & Canopy DualSelect family supports surface or pendant mounting.
What is the CRI?
The fixture provides 70 CRI.
What is the UPC?
The UPC is 190096131327.
What is the product number?
The product number is 911401872281.
