The Stonco SF20-SCT-G3-10-PCB-BZ SlimFlood Selectable Gen 3 is a compact, versatile commercial-grade LED floodlight designed for building façades, signs, landscaping, walkways, security lighting and general-purpose outdoor illumination.
The SF20 features field-selectable wattage, allowing the installer to choose between 10W, 15W or 20W operation. At the factory-default 4000K setting, the fixture delivers approximately 1610, 2330 or 3120 lumens, depending on the selected wattage.
The fixture also features three field-selectable color temperatures: 3000K, 4000K or 5000K, allowing one fixture to provide warm white, neutral white or daylight-white illumination.
In addition to selectable wattage and CCT, the SlimFlood Gen 3 incorporates field-adjustable optics with 55°, 75° and 90° beam-angle settings, giving installers flexibility to create narrower accent lighting or wider area illumination.
The SF20 operates on 120-347V universal voltage and supports 0-10V dimming, making it suitable for residential, commercial and institutional applications.
An integrated photocell with ON/OFF control provides automatic dusk-to-dawn operation when desired.
The fixture features a rugged single-piece die-cast aluminum housing, polycarbonate lens and durable bronze powder-coat finish. Its IP65 rating provides protection against dust and water for demanding outdoor installations.
Both knuckle and yoke mounting options are included, allowing the fixture to be mounted on the ground, wall or other suitable surfaces.
KEY FEATURES
• Stonco / Keene SlimFlood Selectable Gen 3
• Compact LED floodlight
• 10W / 15W / 20W selectable wattage
• Up to approximately 3120 lumens at 4000K
• 3000K / 4000K / 5000K selectable CCT
• 55° / 75° / 90° adjustable beam angles
• 120-347V universal voltage
• 0-10V dimming
• Integrated photocell
• Photocell ON/OFF control
• Knuckle mounting included
• Yoke mounting included
• Single-piece die-cast aluminum housing
• Polycarbonate lens
• Bronze powder-coat finish
• IP65 rated
• cULus listed for USA and Canada
• DLC 5.1 Premium
• 5-year limited warranty
• Excellent for façade, sign and landscape lighting
TECHNICAL SPECIFICATIONS
Brand: Stonco / Keene
Catalog Number: SF20-SCT-G3-10-PCB-BZ
Product Family: SlimFlood Selectable
Generation: Gen 3
Product Type: LED Floodlight
Wattage: 10W / 15W / 20W Selectable
Factory Wattage Setting: 20W
Lumen Output at 4000K: 1610 / 2330 / 3120 Lumens
Maximum Output at 4000K: Approximately 3120 Lumens
CCT: Field Selectable
Color Temperatures: 3000K / 4000K / 5000K
Factory CCT Setting: 4000K
Beam Angle: 55° / 75° / 90° Selectable
Factory Beam Setting: 90°
Voltage: 120-347V
Frequency: 50/60Hz
Dimming: 0-10V
Photocell: Integrated with ON/OFF Control
Mounting: Knuckle & Yoke Included
Housing: Die-Cast Aluminum
Lens: Polycarbonate
Finish: Bronze
Ingress Protection: IP65
DLC: DLC 5.1 Premium
Safety Listing: cULus
Surge Protection: 2.5kV
L70: Approximately 50,000 Hours
Warranty: 5-Year Limited Warranty
Signify Product Number / 12NC: 911401859687
UPC: 190096197408
The current manufacturer documentation confirms the 10/15/20W settings, with 1610/2330/3120 lumens at 4000K, and identifies 911401859687 as the SF20 product number. Signify
SELECTABLE WATTAGE & LUMEN OUTPUT
The SF20 provides three field-selectable wattage settings:
10 Watts – Approximately 1610 Lumens
15 Watts – Approximately 2330 Lumens
20 Watts – Approximately 3120 Lumens
These lumen figures are the manufacturer's published values at the 4000K test configuration.
The selectable wattage allows one fixture to handle applications ranging from lower-output accent and landscape illumination to brighter façade, sign and security lighting.

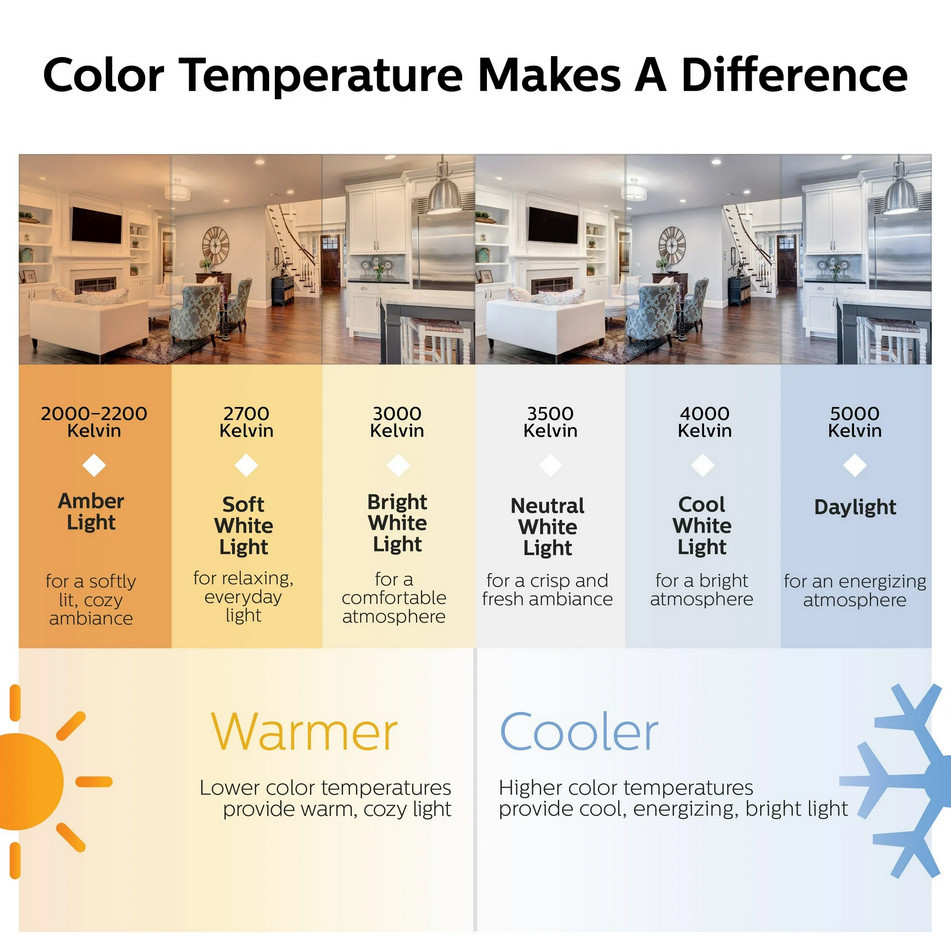

3 SELECTABLE COLOR TEMPERATURES
3000K – Warm White – Excellent for architectural façades, landscaping, hospitality areas and locations where a warmer appearance is preferred.
4000K – Neutral White – Balanced commercial illumination suitable for buildings, signs, walkways and general exterior lighting.
5000K – Daylight White – Crisp white illumination suitable for security lighting and applications where brighter-looking illumination is preferred.
SELECTABLE BEAM ANGLE
The SF20 provides three adjustable optical distributions:
55° – Narrow Flood
75° – Medium Flood
90° – Wide Flood
This is particularly useful when using the SF20 for uplighting a business façade or sign, because the beam can be adjusted to suit the height and width of the surface being illuminated.
PHOTOCELL
The SF20 includes an integrated photocell with an ON/OFF switch.
When enabled, the photocell allows automatic dusk-to-dawn operation, making the fixture well suited for exterior commercial lighting, signs, landscaping and security applications.
APPLICATIONS
Ideal for:
• Building façade uplighting
• Commercial buildings
• Retail storefronts
• Sign lighting
• Monument lighting
• Landscape lighting
• Ground-mounted uplighting
• Walkways
• Security lighting
• Banks
• Offices
• Hotels and hospitality
• Restaurants
• Schools
• Municipal buildings
• Parks and plazas
• Residential exterior lighting
• General-purpose floodlighting
INSTALLATION
The SF20 is particularly flexible because both knuckle and yoke mounting hardware are included.
The knuckle mount uses 1/2-inch NPT male threads and provides adjustable aiming.
The yoke provides an adjustable surface-mount option that works especially well for ground-mounted, wall-mounted and architectural uplighting applications.
During installation, the desired 10W, 15W or 20W wattage, 3000K, 4000K or 5000K CCT, and 55°, 75° or 90° beam angle can be selected.
FREQUENTLY ASKED QUESTIONS
What is SF20-SCT-G3-10-PCB-BZ?
It is a Stonco / Keene SlimFlood Selectable Gen 3 LED floodlight with selectable wattage, CCT and beam angle.
What wattages are selectable?
10W, 15W and 20W.
How many lumens does it produce?
At the manufacturer's 4000K test configuration, approximately 1610, 2330 or 3120 lumens, depending on wattage.
What CCT settings are available?
3000K, 4000K and 5000K.
What beam angles are available?
55°, 75° and 90°.
What voltage does it use?
120-347V, 50/60Hz.
Is it dimmable?
Yes. It supports 0-10V dimming.
Does it have a photocell?
Yes. The SF20 has an integrated photocell with ON/OFF control.
What mounts are included?
Both knuckle and yoke mounting options are included.
Can it be mounted on the ground and aimed upward?
Yes. The SlimFlood family is specifically designed to provide mounting flexibility for ground, wall and pole applications.
Is it outdoor rated?
Yes. The complete luminaire is IP65 rated.
What is the product number?
911401859687.
What is the UPC?
190096197408.
