The Stonco SF250-SCT-G3-10-PCB-BZ SlimFlood Selectable Gen 3 is a powerful commercial-grade LED floodlight designed for building facades, parking areas, security lighting, signs, warehouses, commercial properties and other demanding outdoor applications.
The SF250 features field-selectable wattage, allowing the installer to choose between 190W, 220W or 250W operation. Depending on the selected setting, the fixture delivers approximately 30,400 to 38,050 lumens, providing powerful illumination for large commercial and outdoor areas.
The fixture also features three field-selectable color temperatures: 3000K, 4000K or 5000K. This allows one fixture to provide warm white, neutral white or daylight-white illumination depending on the application.
In addition to selectable wattage and color temperature, the SlimFlood Gen 3 incorporates field-adjustable beam distribution with 55°, 75° and 90° beam-angle options. This allows installers to tailor the light pattern for narrower targeted illumination or broader area coverage.
The SF250 operates on 120-347V universal voltage and features 0-10V dimming, making it suitable for a wide variety of commercial, industrial and institutional electrical systems.
A photocell is included in the carton with the SF250, allowing dusk-to-dawn operation when desired.
The fixture features a rugged single-piece die-cast aluminum housing with bronze finish and is IP65 rated for demanding outdoor environments.
Both slipfitter and trunnion mounting options are included, providing installation flexibility for poles, walls, buildings and other structures.
KEY FEATURES
• Commercial LED floodlight
• Stonco SlimFlood Selectable Gen 3
• 190W / 220W / 250W selectable wattage
• Approximately 30,400 / 34,000 / 38,050 lumen output
• 3000K / 4000K / 5000K selectable CCT
• Three selectable beam angles
• 55° / 75° / 90° beam distribution
• 120-347V universal voltage
• 0-10V dimming
• Photocell included in carton
• Slipfitter mounting hardware included
• Trunnion mounting hardware included
• Single-piece die-cast aluminum housing
• Polycarbonate optical lens
• Bronze finish
• IP65 rated
• Wet-location suitable
• DLC Premium
• UL listed
• Long-life integrated LED technology
• 5-year limited warranty
• Ideal for large commercial outdoor areas

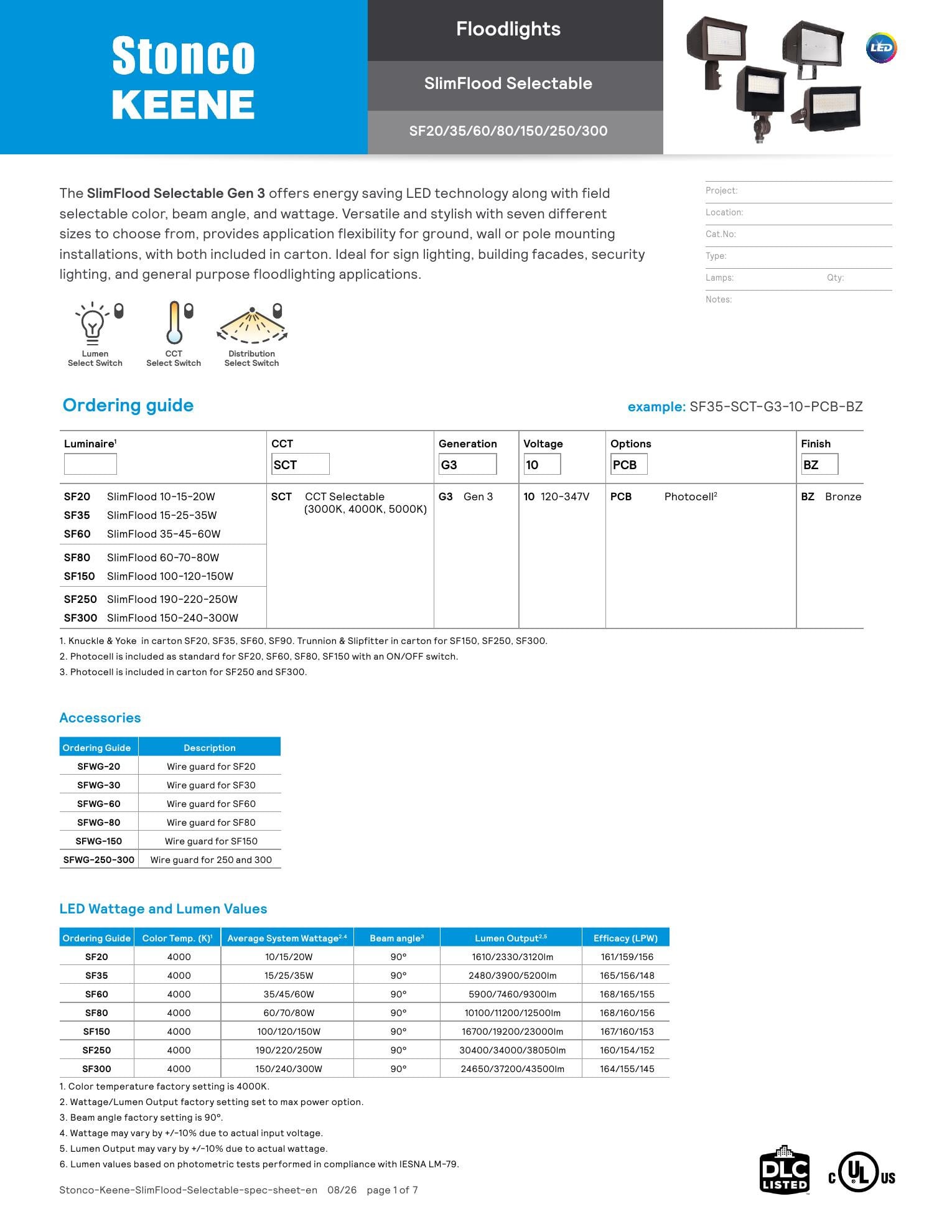

TECHNICAL SPECIFICATIONS
Brand: Stonco / Keene
Catalog Number: SF250-SCT-G3-10-PCB-BZ
Product Family: SlimFlood Selectable
Generation: Gen 3
Product Type: LED Floodlight
Wattage: 190W / 220W / 250W Selectable
Lumen Output: Approximately 30,400 / 34,000 / 38,050 Lumens
Maximum Output: Approximately 38,050 Lumens
CCT: Field Selectable
Color Temperatures: 3000K / 4000K / 5000K
Beam Angle: 55° / 75° / 90° Selectable
Voltage: 120-347V
Dimming: 0-10V
Photocell: Included in Carton
Mounting: Slipfitter / Trunnion
Housing: Die-Cast Aluminum
Lens: Polycarbonate
Finish: Bronze
Ingress Protection: IP65
Location Rating: Wet Location
DLC: DLC Premium
Safety Listing: UL Listed
Light Source: Integrated LED
L70: Approximately 50,000 Hours
Warranty: 5-Year Limited Warranty
Product Number / 12NC: 911401860187
UPC: 190096197453
SELECTABLE WATTAGE & LUMEN OUTPUT
The SF250 provides three field-selectable wattage settings:
190 Watts – Approximately 30,400 Lumens
220 Watts – Approximately 34,000 Lumens
250 Watts – Up to Approximately 38,050 Lumens
This selectable design allows one fixture to accommodate different mounting heights and illumination requirements.
For applications requiring maximum illumination, the 250W setting provides approximately 38,050 lumens.
Where less illumination is required, the fixture can be set to 190W or 220W, reducing both light output and energy consumption.
3 SELECTABLE COLOR TEMPERATURES
The SF250 provides three field-selectable color temperatures:
3000K – Warm White – Provides warmer illumination suitable for architectural applications, hospitality properties and building facades.
4000K – Neutral White – Provides clean, balanced commercial illumination suitable for parking areas, commercial properties, warehouses and general exterior lighting.
5000K – Daylight White – Provides crisp, bright-white illumination ideal for security lighting, large parking areas and applications where high visual clarity is desired.
SELECTABLE BEAM ANGLE
The SlimFlood Gen 3 offers three field-adjustable beam angles:
55° – Narrower Flood – Useful for more targeted illumination, architectural lighting and applications requiring greater throw.
75° – Medium Flood – Provides a balance between distance and area coverage.
90° – Wide Flood – Provides broad area coverage for parking lots, building exteriors and general-purpose floodlighting.
This feature gives contractors substantially more flexibility than a traditional fixed-beam floodlight.
PHOTOCELL INCLUDED
The SF250 includes a photocell in the carton.
When installed, the photocell can automatically turn the fixture on when ambient light levels become low and turn it off when daylight returns.
This makes the fixture particularly useful for parking areas, building exteriors, security lighting and commercial properties requiring automatic dusk-to-dawn operation.
RUGGED OUTDOOR CONSTRUCTION
The SF250 is designed for demanding commercial outdoor environments.
Its single-piece die-cast aluminum housing provides durability while the polycarbonate optical lens protects the LED system.
The fixture carries an IP65 rating, providing protection against dust and water intrusion.
The durable bronze finish provides a professional appearance suitable for commercial, institutional and industrial properties.

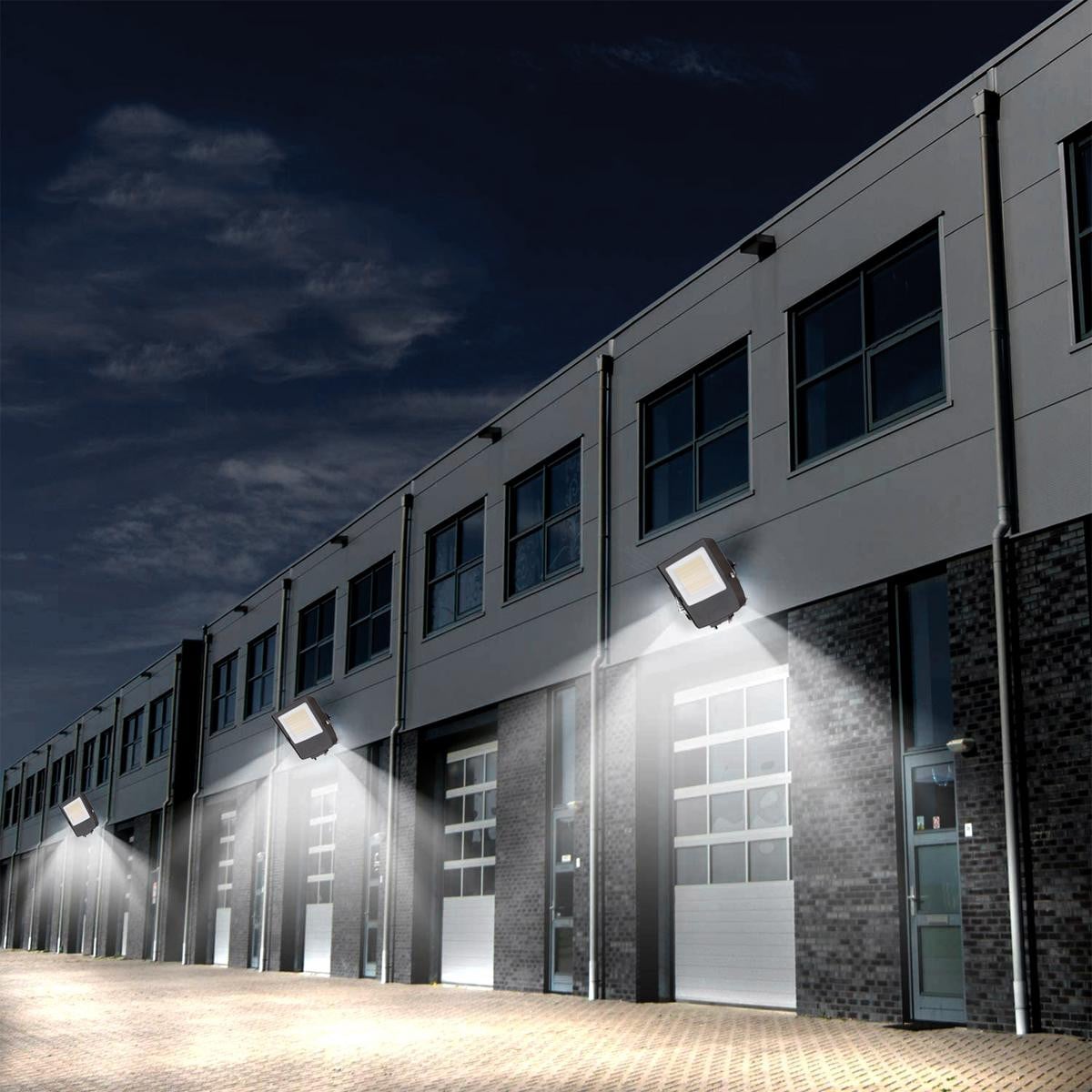

APPLICATIONS
Ideal for:
• Commercial parking areas
• Parking lots

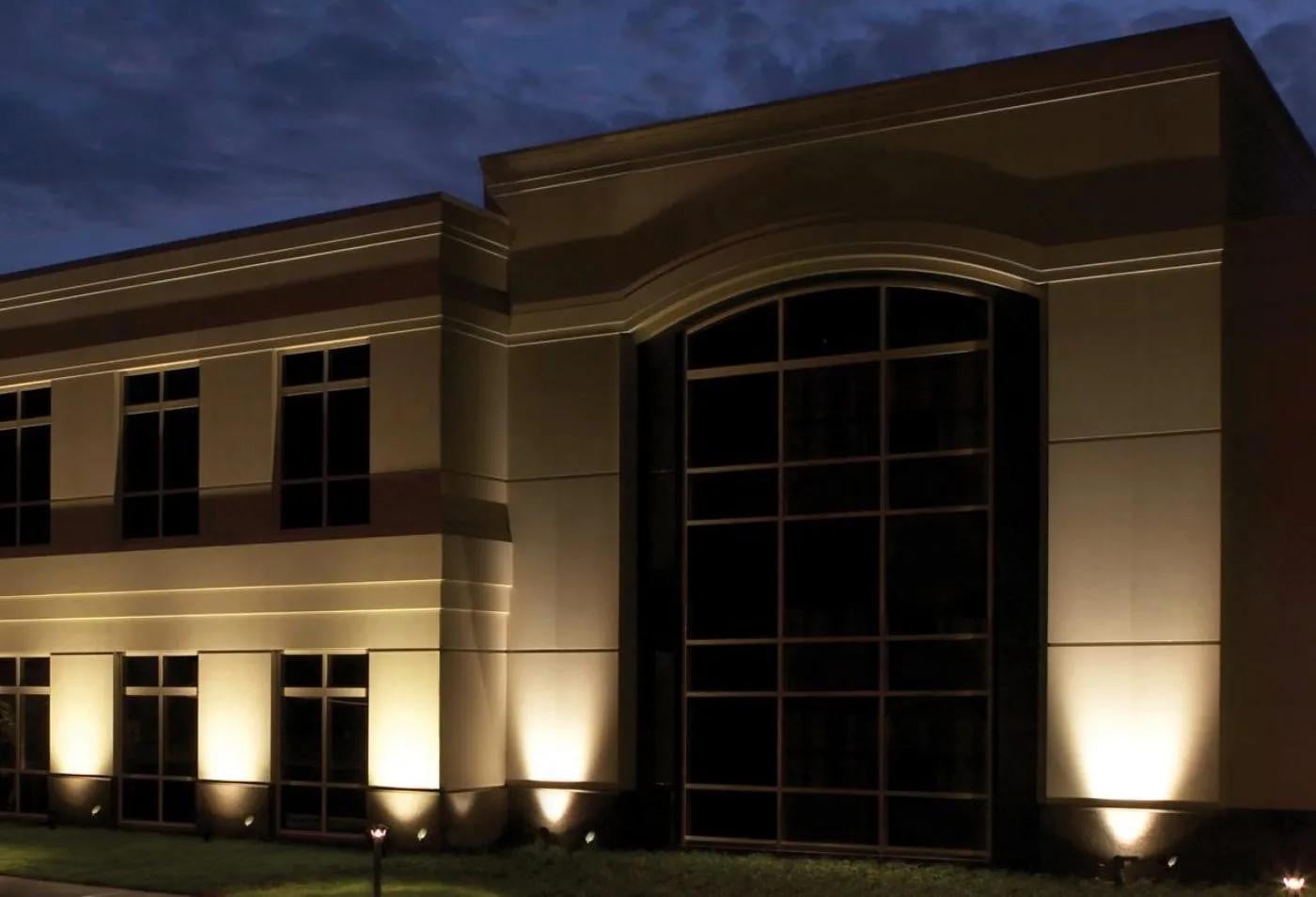

• Building facades
• Warehouses
• Distribution centers
• Security lighting
• Sign lighting
• Schools and universities
• Hospitals
• Municipal buildings
• Office buildings
• Retail stores
• Shopping centers
• Large retailers
• Hotels and hospitality
• Industrial facilities
• Loading areas
• Walkways
• Parks and plazas
• Banks
• Commercial properties
• General-purpose outdoor floodlighting
INSTALLATION

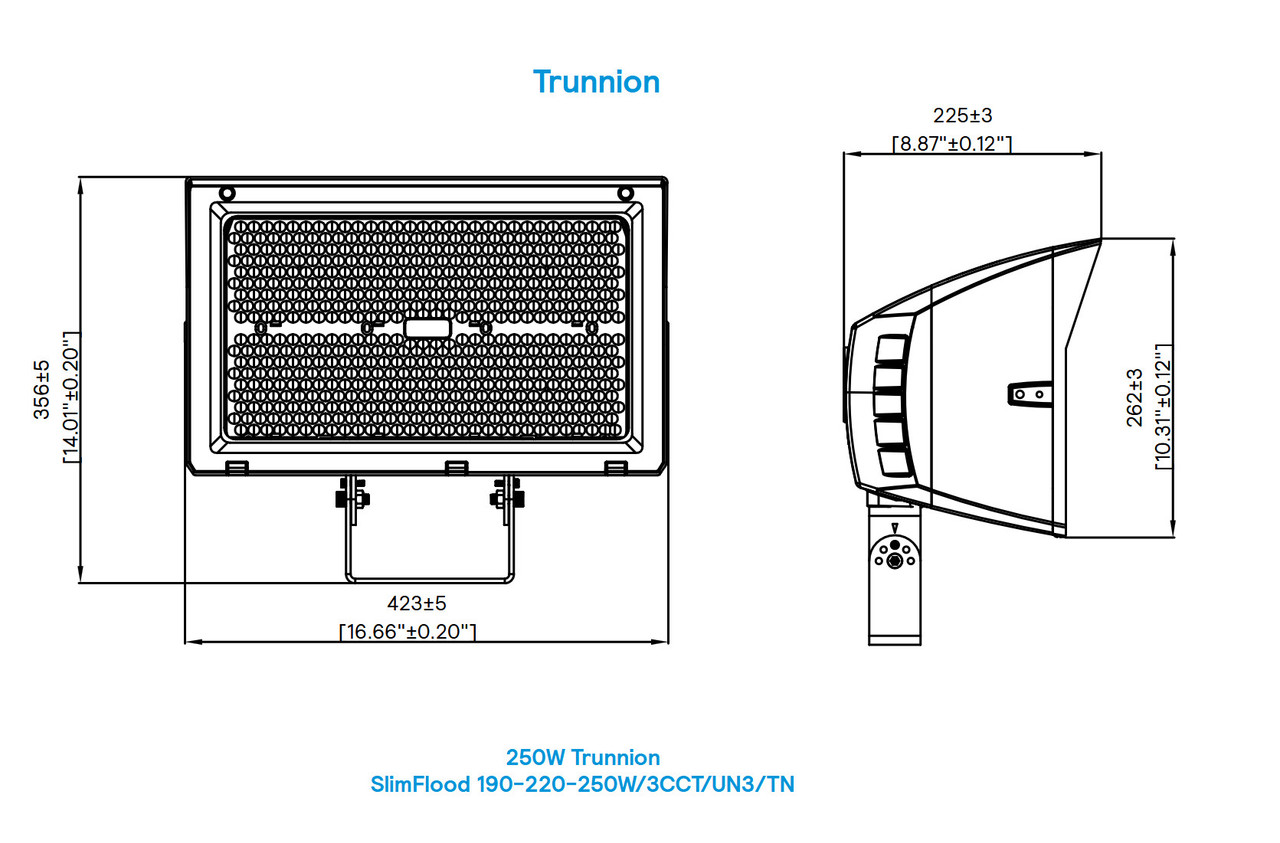

The SF250-SCT-G3-10-PCB-BZ provides flexible mounting options for a variety of commercial installations.
Both slipfitter and trunnion mounting options are included, allowing the fixture to be installed on poles, structures and other appropriate mounting surfaces.
During installation, the desired 190W, 220W or 250W wattage can be selected along with the desired 3000K, 4000K or 5000K color temperature.
The beam distribution can also be adjusted between 55°, 75° and 90°, allowing the installer to tailor the light pattern to the application.
The fixture operates on 120-347V and supports 0-10V dimming.
FREQUENTLY ASKED QUESTIONS
What is the SF250-SCT-G3-10-PCB-BZ?
It is a Stonco SlimFlood Selectable Gen 3 commercial LED floodlight with selectable wattage, selectable color temperature and adjustable beam distribution.
What wattages can be selected?
The fixture provides 190W, 220W and 250W settings.
How many lumens does it produce?
Depending on the selected wattage, output is approximately 30,400 to 38,050 lumens.
What is the maximum light output?
Maximum output is approximately 38,050 lumens.
What color temperatures are available?
The fixture provides 3000K, 4000K and 5000K selectable settings.
Is the color temperature selectable?
Yes. The CCT is field selectable.
Can the beam angle be changed?
Yes. The fixture provides 55°, 75° and 90° selectable beam angles.
What voltage does it operate on?
The SF250 operates on 120-347V.
Is it dimmable?
Yes. The fixture supports 0-10V dimming.
Does it include a photocell?
Yes. A photocell is included in the carton with the SF250.
What color is the fixture?
The fixture has a bronze finish.
What mounting options are included?
Both slipfitter and trunnion mounting options are included.
Is it suitable for outdoor use?
Yes. The fixture is IP65 rated and suitable for wet locations.
Is it DLC listed?
Yes. The SF250 is DLC Premium.
What is the product number?
The product number is 911401860187.
What is the UPC?
The UPC is 190096197453.
What does SCT mean?
SCT identifies the fixture's selectable color-temperature capability.
What does G3 mean?
G3 identifies this fixture as Generation 3 of the SlimFlood family.
What does BZ mean?
BZ indicates the bronze finish.
