Product Description
The Chloride by Signify CSUL8LW is a commercial-grade LED emergency lighting unit designed and approved for City of Chicago code requirements. Featuring two adjustable LED lamp heads delivering a total of 800 lumens, this durable emergency light provides reliable illumination during power outages and emergency conditions.
Built with a rugged 20-gauge steel housing, the CSUL8LW is designed for demanding commercial, institutional, industrial, and multi-family applications where dependable emergency lighting is required.
The unit operates on universal 120-277V AC, 50/60Hz input and includes a maintenance-free 6.4V LiFePO4 (lithium iron phosphate) battery. During a loss of normal AC power, the battery provides a minimum of 90 minutes of emergency illumination.
The CSUL8LW also provides up to 3 watts of 6V DC remote capacity, allowing compatible Chloride remote emergency lamp heads to be connected when additional emergency coverage is needed.
A built-in LED power/charge indicator and push-to-test switch make routine emergency-lighting inspections simple. Low-voltage battery disconnect protection helps prevent damage caused by excessive battery discharge during extended power failures.
Key Features
- Manufacturer: Chloride by Signify
- Model / Catalog Number: CSUL8LW
- Product Type: LED emergency lighting unit
- Chicago Code Approved: Yes
- Light Output: 800 lumens
- Lamp Heads: 2 adjustable LED heads
- Input Voltage: 120-277V AC
- Frequency: 50/60Hz
- Maximum Power Consumption: 4.5W
- Emergency Runtime: Minimum 90 minutes
- Battery: Maintenance-free LiFePO4 lithium iron phosphate
- Battery Rating: 6.4V, 3200mAh
- Recharge Time: Approximately 24 hours
- Remote Capacity: 6V DC, up to 3W
- Housing: Durable 20-gauge steel
- Housing Color: White
- Lamp Head Lens: Polycarbonate
- Mounting: Wall / junction-box mounting
- Operating Temperature: 41°F to 113°F (5°C to 45°C)
- Location Rating: UL Listed for damp locations
- UL Standard: UL 924
- Code Compliance: NFPA 101 Life Safety Code, NFPA 70 National Electrical Code, and City of Chicago requirements
- Warranty: 5-year limited warranty on electronics, LEDs, and battery
Applications
The Chloride CSUL8LW is ideal for emergency egress lighting in:
- Commercial buildings
- Office buildings
- Apartment and condominium buildings
- Schools and educational facilities
- Hotels and hospitality properties
- Retail stores
- Warehouses
- Industrial facilities
- Healthcare and institutional buildings
- Chicago-area projects requiring Chicago Code compliant emergency lighting

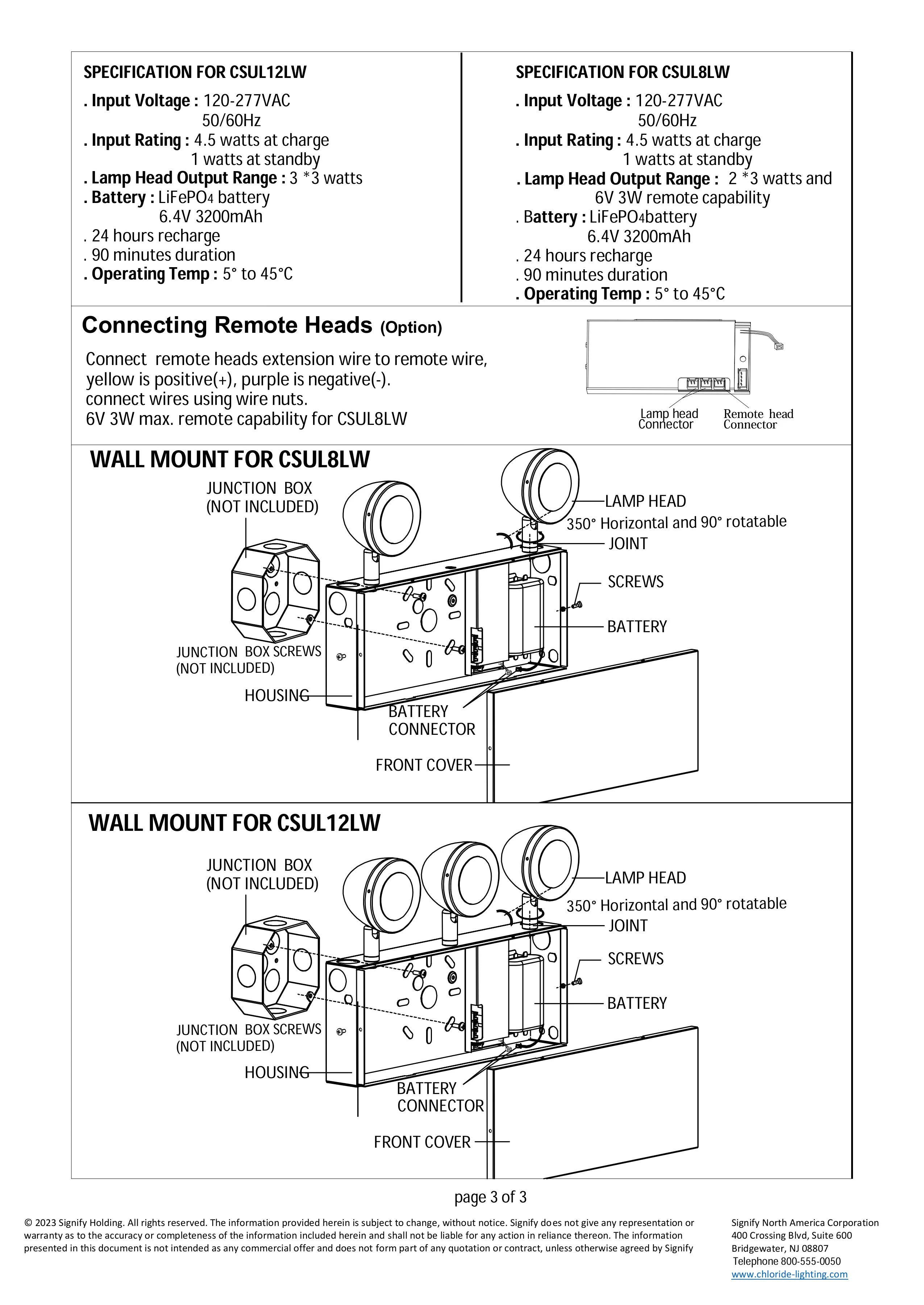

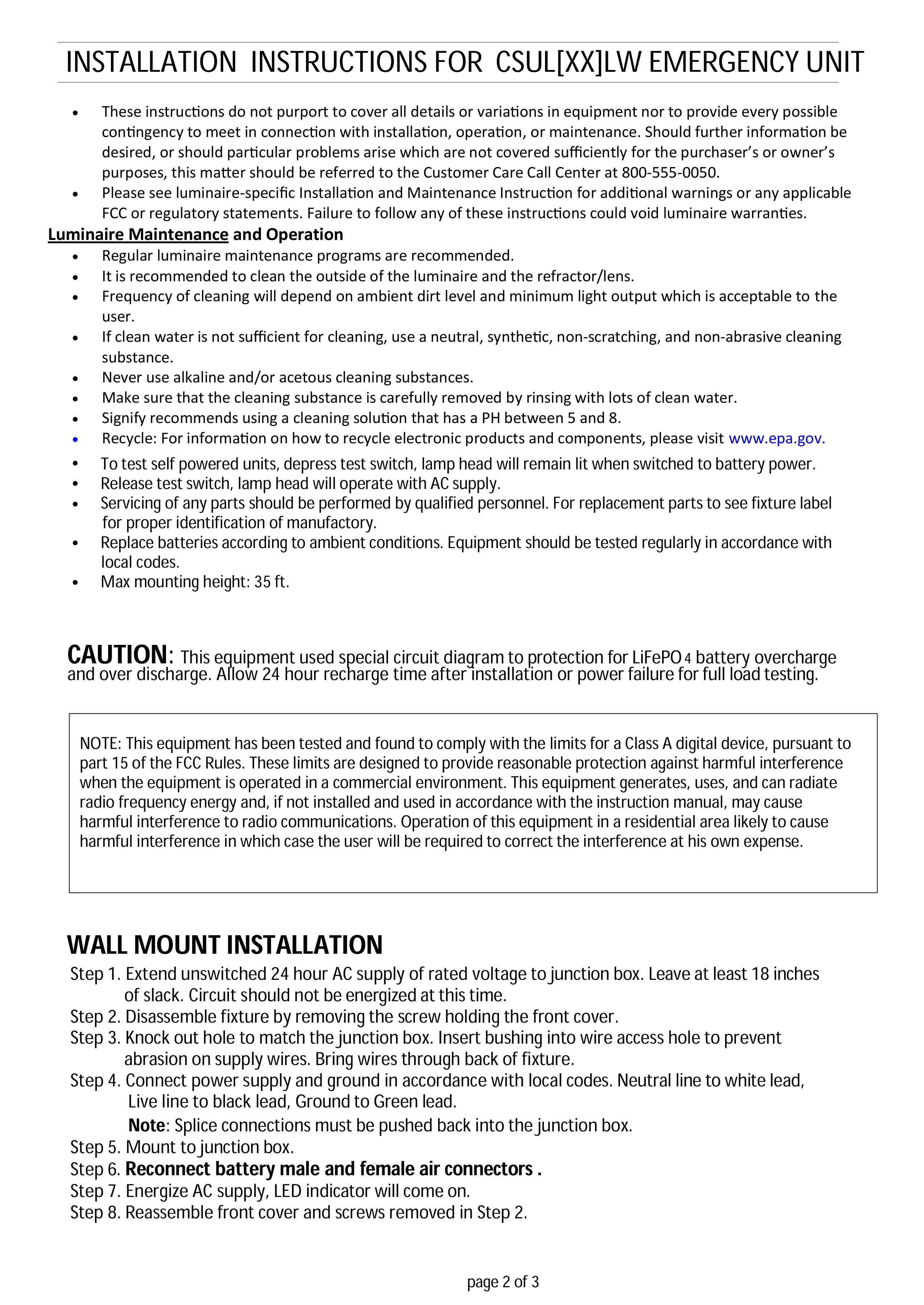

Installation & Mounting
The CSUL8LW includes universal-pattern knockouts on the back plate for direct mounting to a junction box. Removable knockouts accommodate mounting to a standard 4-inch junction box, and additional knockouts are provided for conduit connections.
The two LED lamp heads can be adjusted to direct emergency illumination toward corridors, exits, stairways and other required egress areas.
The unit features a fully automatic charger designed to recharge the battery within approximately 24 hours following an emergency discharge.
Remote Head Capability
The CSUL8LW provides up to 3 watts of 6V DC remote capacity for adding compatible remote emergency lamp heads.
Compatible Chloride remote heads include:
CSUL1RW – Single LED remote lamp head, 1.5W
CSUL2RW – Dual LED remote lamp heads, 3W
Do not exceed the unit's maximum 3W remote-head capacity.
Frequently Asked Questions
Is the Chloride CSUL8LW Chicago Code approved?
Yes. The CSUL8LW is specifically designed as a City of Chicago approved steel emergency lighting unit.
How many lumens does the CSUL8LW produce?
The CSUL8LW produces 800 total lumens from its two LED emergency lamp heads.
How many emergency light heads does it have?
The CSUL8LW has two adjustable LED lamp heads.
How long will the emergency light operate during a power outage?
The internal battery provides a minimum of 90 minutes of emergency illumination when normal AC power is lost.
What type of battery does the CSUL8LW use?
It uses a maintenance-free 6.4V 3200mAh LiFePO4 lithium iron phosphate battery.
How long does the battery take to recharge?
The automatic charger is designed to recharge the battery within approximately 24 hours.
What voltage does the CSUL8LW operate on?
The unit accepts 120-277V AC universal input at 50/60Hz, making it suitable for many commercial electrical systems.
How much power does the unit consume?
Maximum input power is approximately 4.5 watts.
Can I connect additional remote emergency lights?
Yes. The CSUL8LW provides 6V DC remote capability up to 3 watts.
Compatible options include the Chloride CSUL1RW 1.5W single remote head or CSUL2RW 3W dual remote-head assembly.
Is the CSUL8LW wet-location rated?
No. The CSUL8LW is UL Listed for damp locations, not wet locations. Its specified operating range is 41°F to 113°F (5°C to 45°C).
Is the housing plastic or metal?
The main housing is constructed from durable 20-gauge steel with a white finish. The lamp-head lenses are polycarbonate.
Does the CSUL8LW have a test button?
Yes. The unit includes a push-to-test switch along with an LED indicator for AC power/charging status.
Does the CSUL8LW have low-voltage battery protection?
Yes. Low Voltage Battery Disconnect helps protect the battery against damaging deep discharge during extended power outages.
Is this an EXIT sign?
No. The CSUL8LW is an emergency lighting unit, not an illuminated EXIT sign. It provides emergency illumination from two adjustable LED lamp heads.
Can the CSUL8LW be mounted directly to a junction box?
Yes. Universal-pattern knockouts are provided on the back plate for direct junction-box mounting, including removable knockouts for mounting to a 4-inch J-box.
What is the difference between CSUL8LW and CSUL12LW?
The CSUL8LW is the 800-lumen, two-head version. The CSUL12LW is the higher-output 1,200-lumen, three-head version.
What does CSUL8LW mean?
The catalog number identifies the configuration:
CSUL – CSU LED Series Chicago Approved Steel Emergency Unit
8L – 800-lumen version
W – White housing
Who manufactures the CSUL8LW?
The CSUL8LW is manufactured under the Chloride brand by Signify.
