The Chloride by Signify CSE1RWW is a commercial-grade LED steel EXIT sign specifically designed to meet City of Chicago code requirements. This AC-only model features durable 20-gauge white steel construction, highly visible 6-inch red EXIT lettering on a white background, and universal 120/277VAC operation.
Designed for commercial, institutional, industrial and multifamily applications, the CSE1RWW is supplied as a single-face, no-arrow configuration and can be wall, ceiling or end mounted. Energy-efficient LED illumination provides long-lasting, uniform EXIT sign visibility while consuming a maximum of only 4 watts.
IMPORTANT: The CSE1RWW is AC only and does not include emergency battery backup. For the battery-backup version, use Chloride model CSEE1RWW.
KEY FEATURES
• Chicago Code approved LED steel EXIT sign
• AC-only configuration – no battery backup
• Durable 20-gauge steel housing
• Single-face, no-arrow standard configuration
• 6-inch red EXIT letters on white background
• Universal 120/277VAC, 50/60Hz operation
• Energy-efficient LED illumination – maximum 4 watts
• Wall, ceiling or end mounting
• Universal mounting canopy included
• UL 924 Listed and suitable for damp locations
• 41°F to 113°F (5°C to 45°C) operating temperature
• Designed to meet NFPA 101, NFPA 70, OSHA and City of Chicago requirements
• 5-year limited warranty

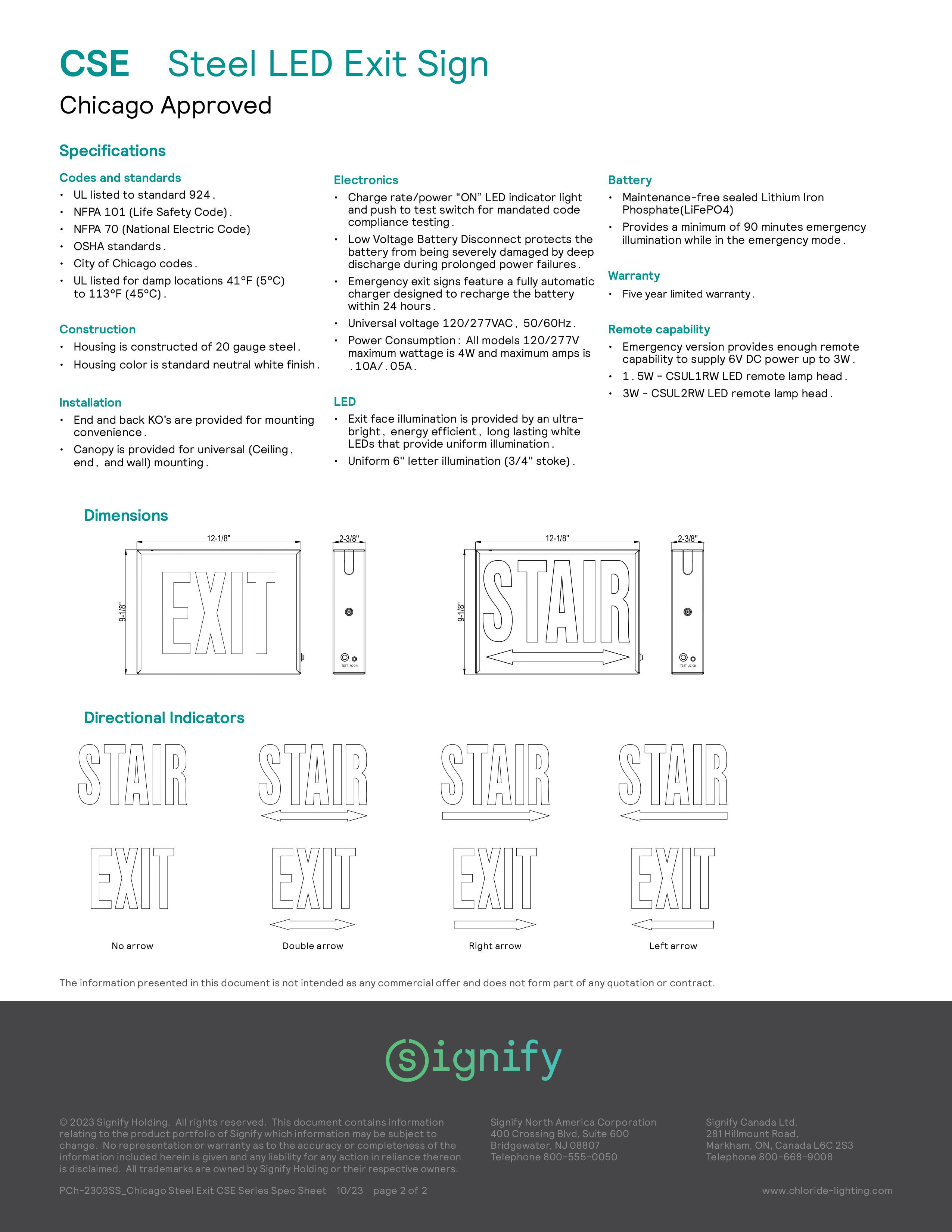

TECHNICAL SPECIFICATIONS
Brand: Chloride by Signify
Model: CSE1RWW
Product Type: LED Steel EXIT Sign
Chicago Code Approved: Yes
Power Configuration: AC Only
Battery Backup: No
Face Configuration: Single Face
Directional Arrow: No Arrow
Letter Color: Red
Background: White
Letter Height: 6 Inches
Letter Stroke: 3/4 Inch
Housing: 20-Gauge Steel
Housing Color: White
Light Source: LED
Input Voltage: 120/277VAC
Frequency: 50/60Hz
Maximum Power: 4 Watts
Mounting: Wall / Ceiling / End
Location Rating: Damp Location
UL Listing: UL 924
Warranty: 5-Year Limited Warranty
APPLICATIONS
Ideal for commercial buildings, offices, apartments, condominiums, hotels, schools, retail stores, warehouses, industrial facilities, healthcare and institutional buildings, commercial corridors and other properties requiring Chicago-approved emergency egress signage.
INSTALLATION & MOUNTING
The CSE1RWW provides flexible wall, ceiling or end mounting. A universal mounting canopy is included, with end and back knockouts provided for installation flexibility.

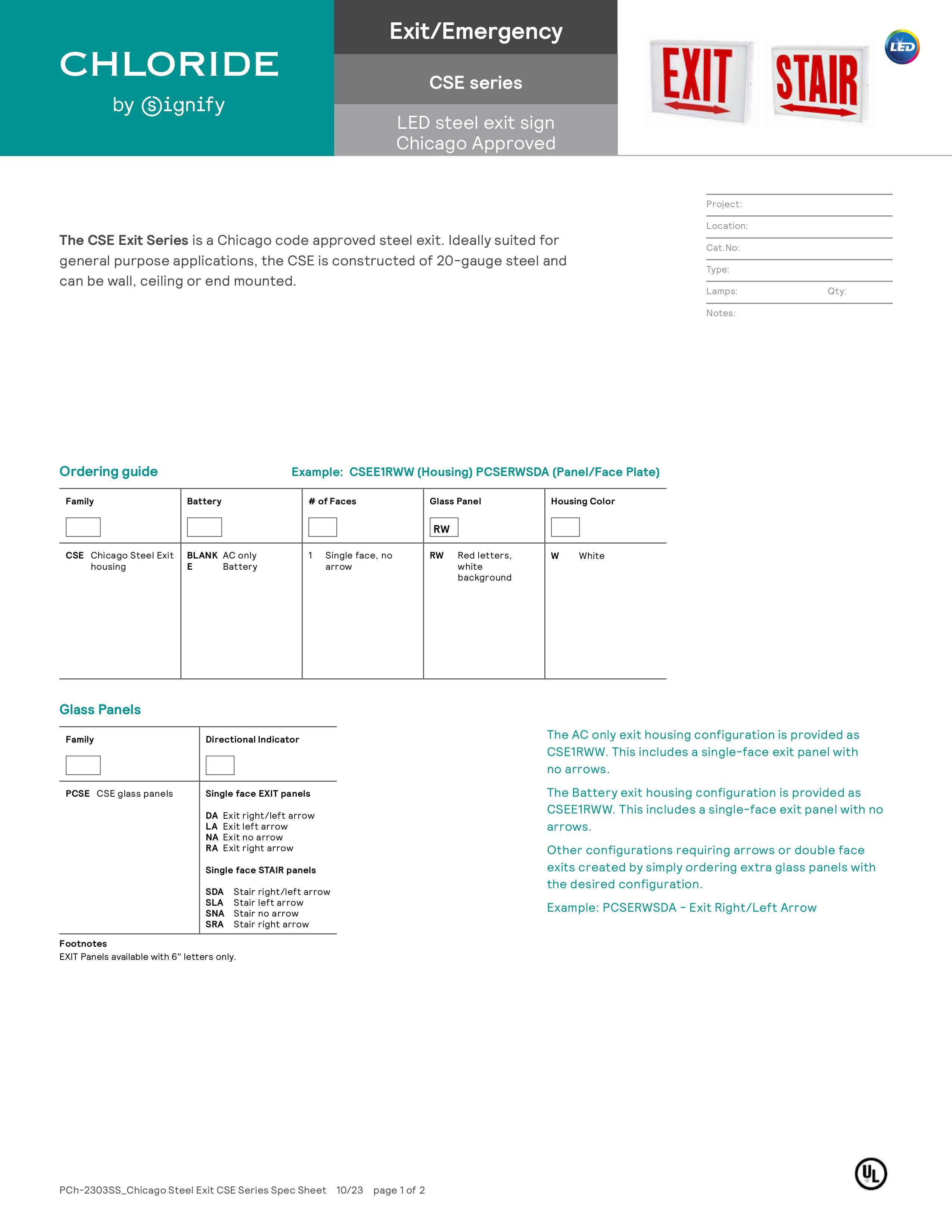

The CSE Series uses interchangeable glass EXIT panels. Optional panels can be ordered separately for left-arrow, right-arrow and double-arrow configurations. An additional compatible panel can also be used for applications requiring a double-face EXIT sign.
FREQUENTLY ASKED QUESTIONS
Is the CSE1RWW Chicago Code approved?
Yes. The Chloride CSE Series is specifically designed to meet City of Chicago requirements for steel EXIT signage.
Does the CSE1RWW have battery backup?
No. The CSE1RWW is AC only and does not contain an emergency battery. For battery backup, use the Chloride CSEE1RWW.
What is the difference between CSE1RWW and CSEE1RWW?
CSE1RWW is AC only. CSEE1RWW includes an emergency battery for backup EXIT illumination during a loss of normal AC power.
Is CSE1RWW single face or double face?
The standard CSE1RWW is supplied as a single-face EXIT sign. An additional compatible panel can be ordered for double-face applications.
Does CSE1RWW have a directional arrow?
The standard configuration has no arrow. Optional interchangeable panels are available for left, right and double-arrow configurations.
What voltage does CSE1RWW operate on?
The CSE1RWW operates on universal 120/277VAC, 50/60Hz input.
Can CSE1RWW be ceiling mounted?
Yes. The fixture supports wall, ceiling and end mounting.
Is CSE1RWW wet-location rated?
No. The CSE Series is UL Listed for damp locations and should not be advertised as wet-location rated.
Is the housing metal or plastic?
The CSE1RWW uses durable 20-gauge steel construction with a white finish.
Is CSE1RWW LED?
Yes. Energy-efficient LEDs provide uniform illumination across the EXIT face.
What codes and standards does CSE1RWW meet?
The CSE Series is designed to meet UL 924, NFPA 101 Life Safety Code, NFPA 70 National Electrical Code, applicable OSHA standards and City of Chicago requirements.
Who manufactures CSE1RWW?
The CSE1RWW is manufactured under the Chloride brand by Signify.
