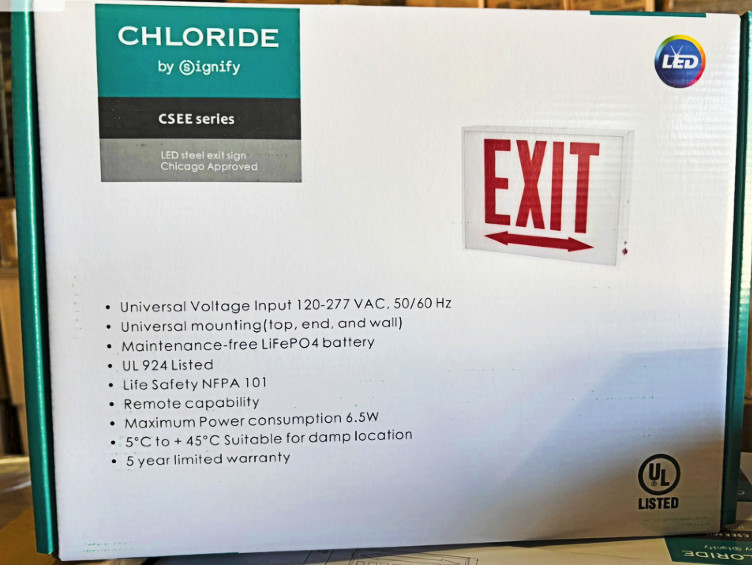

The Chloride CSEE1RWW is a commercial-grade LED steel EXIT sign with emergency battery backup, specifically designed to meet City of Chicago code requirements. Its durable steel construction, highly visible red EXIT lettering and dependable emergency operation make it an excellent choice for commercial, institutional, industrial and multifamily buildings.
The CSEE1RWW features a rugged 20-gauge steel housing with a neutral white finish. The standard configuration includes a single-face EXIT panel with no directional arrow, featuring highly visible 6-inch red EXIT lettering on a white background.
Energy-efficient, long-lasting white LEDs provide uniform illumination across the EXIT face while consuming a maximum of approximately 4 watts.
The fixture operates on 120/277VAC, 50/60Hz universal voltage, making it suitable for a wide variety of commercial electrical systems.
Unlike the AC-only CSE1RWW, the CSEE1RWW includes emergency battery backup. The maintenance-free lithium iron phosphate (LiFePO4) battery provides a minimum of 90 minutes of emergency illumination during a loss of normal AC power.
A fully automatic charger is designed to recharge the battery after emergency operation, while a low-voltage battery disconnect helps protect the battery from damage caused by excessive discharge.
The CSEE1RWW provides flexible installation options and can be wall, ceiling or end mounted. A universal mounting canopy is provided, and end and back knockouts help simplify installation.
KEY FEATURES
• Chicago Code approved LED EXIT sign
• Emergency battery-backup configuration
• Minimum 90-minute emergency operation
• Maintenance-free LiFePO4 battery
• Durable 20-gauge steel housing
• Neutral white housing finish
• Single-face standard configuration
• No directional arrow standard configuration
• 6-inch red EXIT lettering
• White EXIT panel background
• Energy-efficient LED illumination
• Maximum approximately 4-watt power consumption
• 120/277VAC universal voltage
• 50/60Hz operation
• Wall mounting
• Ceiling mounting
• End mounting
• Universal mounting canopy included
• Interchangeable glass panels
• Charge / power ON LED indicator
• Push-to-test switch
• Automatic battery charger
• Low-voltage battery disconnect
• UL 924 listed
• Suitable for damp locations
• Designed for City of Chicago code requirements
TECHNICAL SPECIFICATIONS
Brand: Chloride
Catalog Number: CSEE1RWW
Product Family: CSE Series
Product Type: LED Steel EXIT Sign
Application: Emergency Egress / EXIT Signage
Chicago Code Approved: Yes
Battery Backup: Yes
Battery Type: Lithium Iron Phosphate (LiFePO4)
Emergency Runtime: Minimum 90 Minutes
Housing Material: 20-Gauge Steel
Housing Color: White
Face Configuration: Single Face Standard
Directional Arrow: No Arrow Standard
Legend: EXIT
Letter Color: Red
Background: White
Letter Height: 6 Inches
Letter Stroke: 3/4 Inch
Light Source: LED
Voltage: 120/277VAC
Frequency: 50/60Hz
Maximum Wattage: Approximately 4 Watts
Mounting: Wall / Ceiling / End
Canopy: Universal Mounting Canopy Included
Location Rating: Damp Location
UL Listing: UL 924
Model / Product Number: 912401592271
Warranty: 5-Year Limited Warranty
EMERGENCY BATTERY BACKUP
The CSEE1RWW includes an integrated emergency battery system designed to keep the EXIT sign illuminated when normal AC power is lost.
The maintenance-free LiFePO4 battery provides a minimum of 90 minutes of emergency illumination, helping maintain visible egress identification during power failures.
A fully automatic charging system recharges the battery following emergency operation.
The fixture also incorporates a low-voltage battery disconnect, which helps protect the battery from damage caused by deep discharge during an extended power failure.
CHICAGO CODE STEEL CONSTRUCTION
The CSEE1RWW is specifically designed for applications requiring Chicago-approved steel EXIT signage.
The housing is constructed from durable 20-gauge steel and finished in neutral white for a clean commercial appearance.
The standard EXIT panel features 6-inch red letters with a 3/4-inch stroke on a white background, providing excellent visibility for emergency egress identification.
INTERCHANGEABLE EXIT PANELS

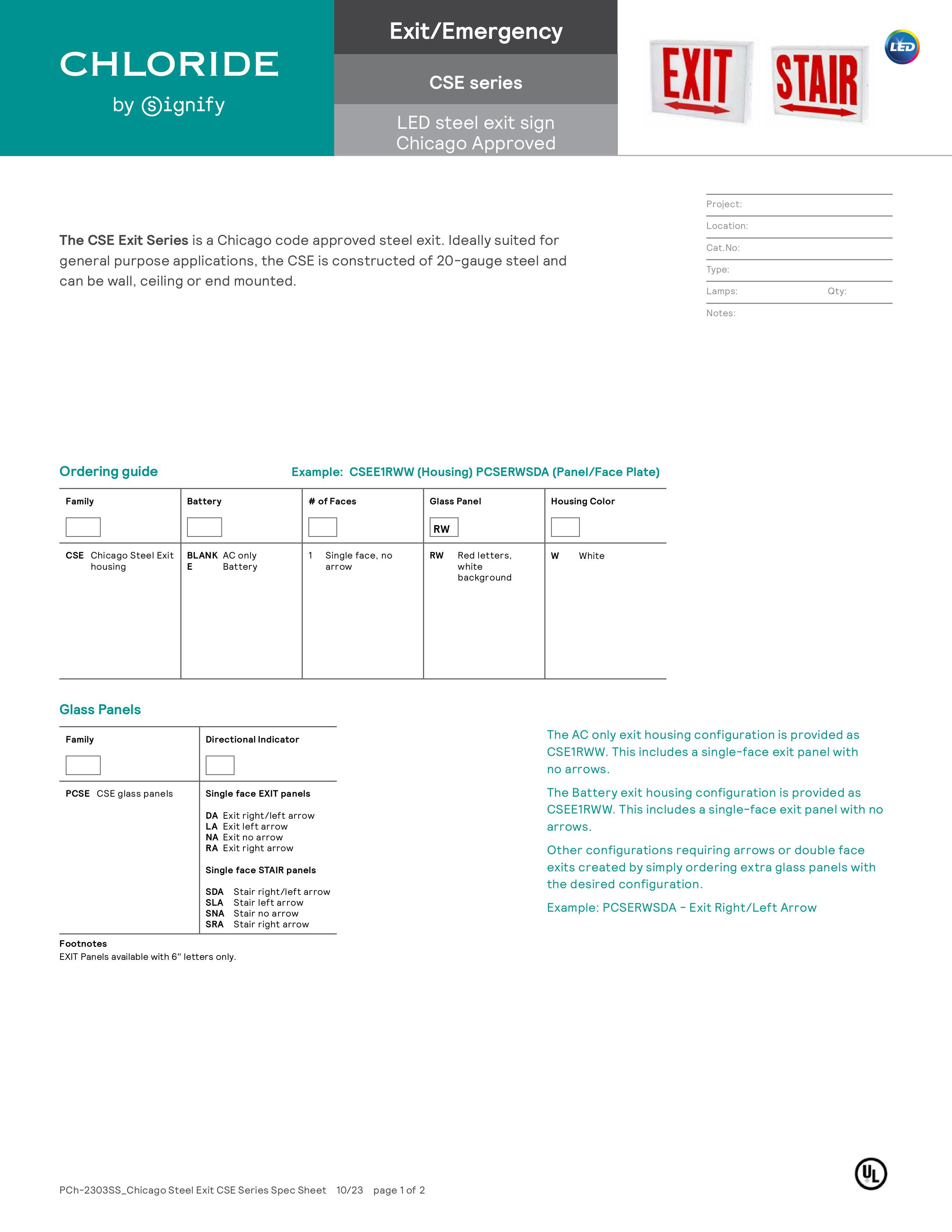

The standard CSEE1RWW configuration is supplied as a single-face EXIT sign with no directional arrow.
The CSE Series uses interchangeable glass panels, allowing other configurations to be created using compatible optional panels.
Optional panels can accommodate:
• Left directional arrow
• Right directional arrow
• Right / left directional arrows
• Additional EXIT face
• STAIR configurations
An additional compatible panel can also be added for applications requiring a double-face EXIT sign.
APPLICATIONS
Ideal for:
• Commercial buildings
• Chicago-area commercial properties
• Office buildings
• Apartments and condominiums
• Multifamily properties
• Hotels
• Schools
• Universities
• Healthcare facilities
• Retail stores
• Restaurants
• Warehouses
• Industrial facilities
• Government buildings
• Institutional facilities
• Commercial corridors
• Emergency egress routes
• New construction
• Commercial renovation projects
INSTALLATION
The CSEE1RWW provides flexible mounting options for a wide range of commercial installations.
The fixture can be installed using wall, ceiling or end mounting. A universal mounting canopy is included, while end and back knockouts provide additional installation flexibility.
The standard configuration includes a single EXIT face with no directional arrow. Optional compatible glass panels can be ordered separately when directional arrows or double-face configurations are required.
FREQUENTLY ASKED QUESTIONS
What is the CSEE1RWW?
The CSEE1RWW is a Chicago Code approved LED steel EXIT sign featuring red EXIT lettering, a white steel housing and emergency battery backup.
Does the CSEE1RWW have battery backup?
Yes. The CSEE1RWW includes an emergency backup battery.
How long will the battery operate during a power outage?
The battery provides a minimum of 90 minutes of emergency illumination.
What type of battery does it use?
The fixture uses a maintenance-free lithium iron phosphate (LiFePO4) battery.
What is the difference between CSE1RWW and CSEE1RWW?
The CSE1RWW is AC only and does not include emergency battery backup. The CSEE1RWW includes emergency battery backup.
Is the CSEE1RWW Chicago Code approved?
Yes. The CSE Series is specifically designed for City of Chicago code requirements.
What voltage does it operate on?
The CSEE1RWW operates on 120/277VAC, 50/60Hz universal voltage.
How much power does it consume?
Maximum power consumption is approximately 4 watts.
What color are the EXIT letters?
The standard configuration features red EXIT letters on a white background.
How large are the EXIT letters?
The EXIT letters are approximately 6 inches high with a 3/4-inch stroke.
Is it single face or double face?
The standard CSEE1RWW is supplied as a single-face EXIT sign. An additional compatible panel can be ordered for double-face applications.
Does it have a directional arrow?
The standard CSEE1RWW has no directional arrow. Optional interchangeable panels are available for directional configurations.
Can it be ceiling mounted?
Yes. The fixture can be wall, ceiling or end mounted.
Is it suitable for damp locations?
Yes. The CSEE1RWW is suitable for damp-location applications.
Is it UL listed?
Yes. The CSE Series is UL 924 listed.
What is the housing made from?
The housing is constructed from durable 20-gauge steel.
What is the product number?
The product number is 912401592271.
Who manufactures the CSEE1RWW?
The CSEE1RWW is manufactured under the Chloride brand.
