PRODUCT DESCRIPTION

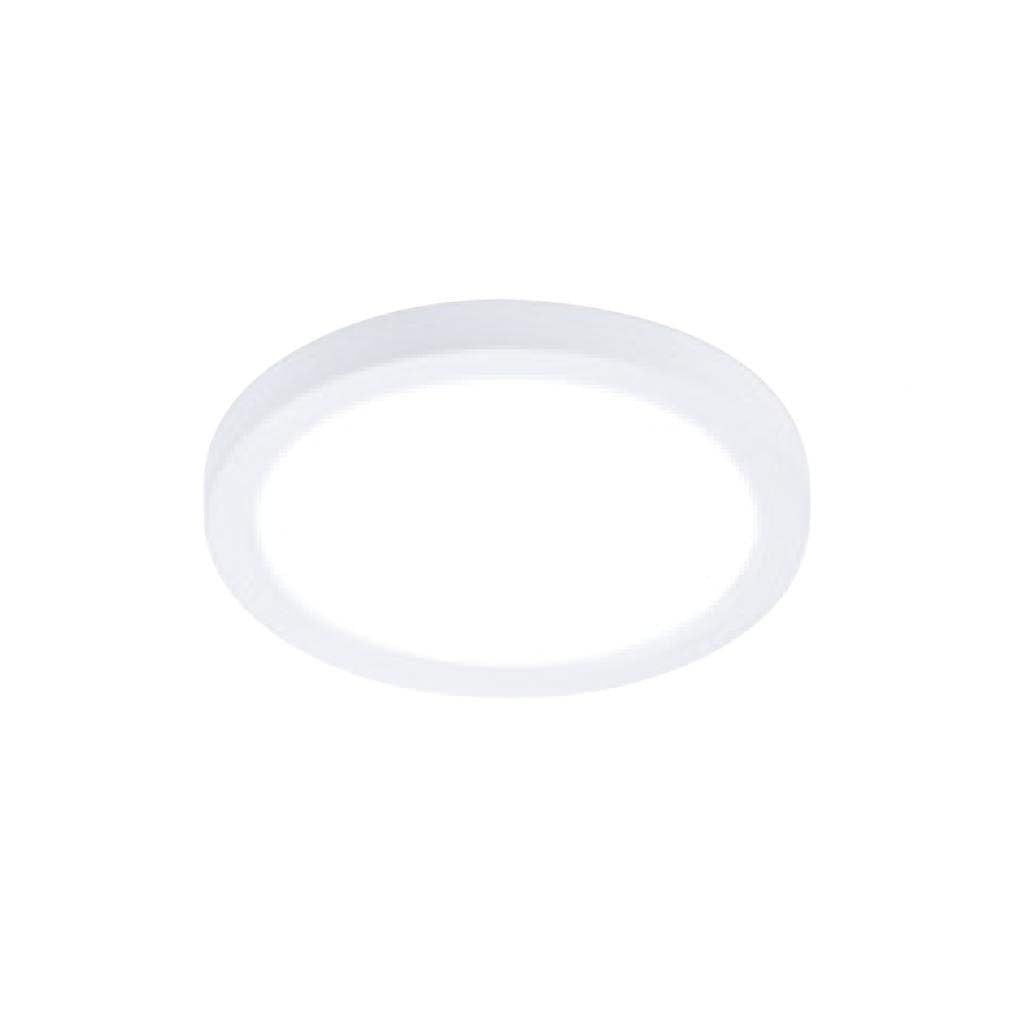

The Lightolier by Signify SD7R10ESCT1W is a versatile 7-inch round LED surface mount downlight designed to provide high-quality, energy-efficient illumination without the need for a traditional recessed can.
Producing 1,000 lumens while consuming only 14 watts, this low-profile LED fixture is an excellent solution for residential, multifamily, hospitality and light commercial lighting applications.
The built-in 5CCT selectable technology allows the installer to choose from five color temperatures — 2700K, 3000K, 3500K, 4000K or 5000K — from warm white through daylight. This allows a single SKU to accommodate a wide variety of room designs and customer lighting preferences.
The SD7R10ESCT1W operates on 120V AC and features TRIAC/phase-cut dimming, allowing light output to be adjusted when paired with an appropriate compatible dimmer.
With 90+ CRI, the fixture provides excellent color rendering for more natural and accurate-looking colors. Its broad light distribution makes it well suited for kitchens, hallways, bedrooms, living areas, offices, apartments, hotels and other general illumination applications.

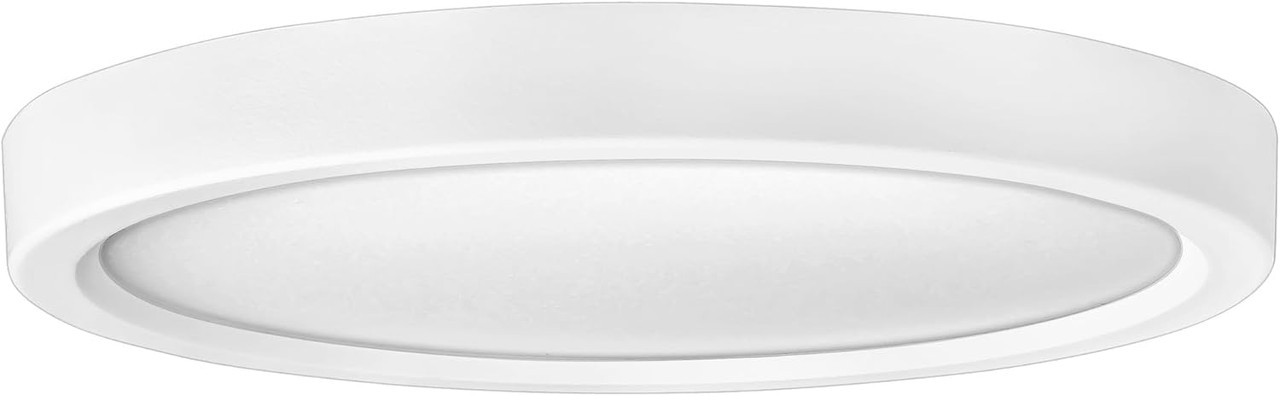

The fixture features a clean white finish and low-profile surface-mount design for a modern appearance while simplifying installation compared with traditional recessed lighting.
With an estimated 50,000-hour L70 LED life, ENERGY STAR certification, Title 24/JA8 compliance and a 5-year limited warranty, the Lightolier SD7R10ESCT1W provides a dependable, flexible and energy-efficient surface-mount lighting solution.
KEY FEATURES & SPECIFICATIONS
- Brand: Lightolier by Signify
- Catalog Number: SD7R10ESCT1W
- Signify Product Number: 911401836684
- UPC: 190096131808
- Product Type: LED Surface Mount Downlight
- Shape: Round
- Nominal Size: 7 Inch
- Light Output: 1,000 Lumens
- Wattage: 14 Watts
- CCT Selectable: Yes – 5CCT
- Color Temperatures: 2700K / 3000K / 3500K / 4000K / 5000K
- CRI: 90+
- Voltage: 120V AC
- Dimmable: Yes
- Dimming Type: TRIAC / Phase-Cut
- Rated LED Life: 50,000 Hours L70
- Finish: White
- Mounting: Surface / Flush Mount
- Location Rating: Suitable for Damp Locations
- ENERGY STAR: Certified
- Title 24 / JA8: Compliant
- Warranty: 5-Year Limited Warranty
- Beam Angle: Approximately 110°
- Power Factor: ≥0.9

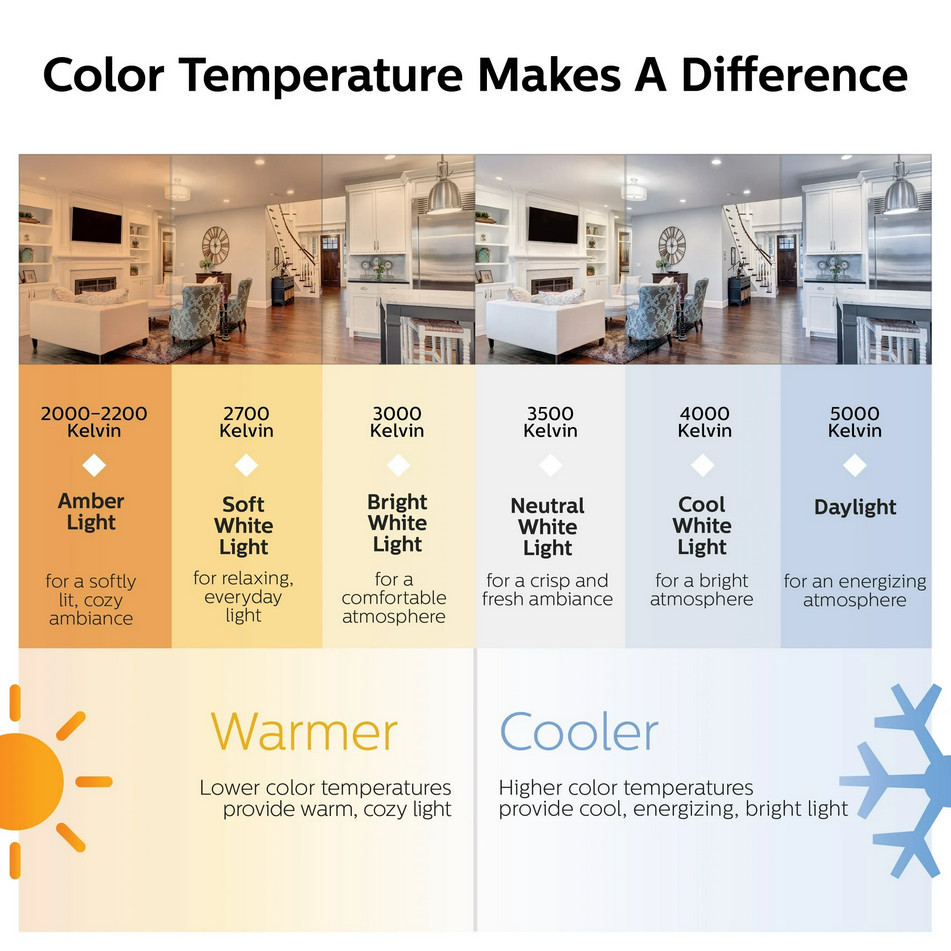

5 SELECTABLE COLOR TEMPERATURES
One fixture provides five selectable white-light settings:
2700K – Soft / Warm White
Creates a warm, comfortable atmosphere ideal for bedrooms, living rooms, hotels and residential spaces.
3000K – Warm White
Provides clean, warm illumination commonly used in homes, apartments, restaurants and hospitality environments.
3500K – Neutral White
Offers a balanced appearance between warm and cool light and works well in both residential and commercial environments.
4000K – Cool / Neutral White
Provides crisp, clean illumination popular in kitchens, offices, work areas and commercial spaces.
5000K – Daylight
Produces a bright, daylight-like white light for applications where maximum visual clarity and a cooler appearance are desired.
PRODUCT HIGHLIGHTS
APPLICATIONS
The Lightolier SD7R10ESCT1W is an excellent choice for:
- Kitchens
- Living rooms
- Bedrooms
- Hallways
- Closets
- Apartments
- Condominiums
- Multifamily properties
- Hotels
- Hospitality spaces
- Offices
- Residential remodeling
- New construction
- Light commercial applications
- Property management replacement lighting
FREQUENTLY ASKED QUESTIONS
What is the Lightolier SD7R10ESCT1W?
The SD7R10ESCT1W is a 7-inch round LED surface mount downlight manufactured by Lightolier by Signify. It provides 1,000 lumens, 5 selectable color temperatures and TRIAC dimming.
How many lumens does the SD7R10ESCT1W produce?
The fixture produces 1,000 lumens.
How many watts does it use?
The SD7R10ESCT1W consumes approximately 14 watts.
Is the lumen output selectable?
No. This model produces 1,000 lumens. The color temperature is selectable, but the lumen output is not.
What color temperatures are available?
The fixture provides five selectable CCT settings:
2700K, 3000K, 3500K, 4000K and 5000K.
Is this a 5CCT fixture?
Yes. The SD7R10ESCT1W allows the installer to select one of five color temperatures.
Can the color temperature be changed?
Yes. The fixture incorporates a selectable CCT switch that allows the desired color temperature to be chosen from the five available settings.
Is the SD7R10ESCT1W dimmable?
Yes. It is designed for TRIAC/phase-cut dimming with a compatible LED dimmer.
Is this a 0-10V dimming fixture?
No. The SD7R10ESCT1W is a 120V TRIAC dimming model. It should not be confused with the universal-voltage Z10 version, which uses 0-10V dimming.
What voltage does it operate on?
The SD7R10ESCT1W operates on 120V AC.
Does this light require a recessed can?
No. This is a surface-mount/flush-mount LED downlight and does not require a traditional recessed can housing.

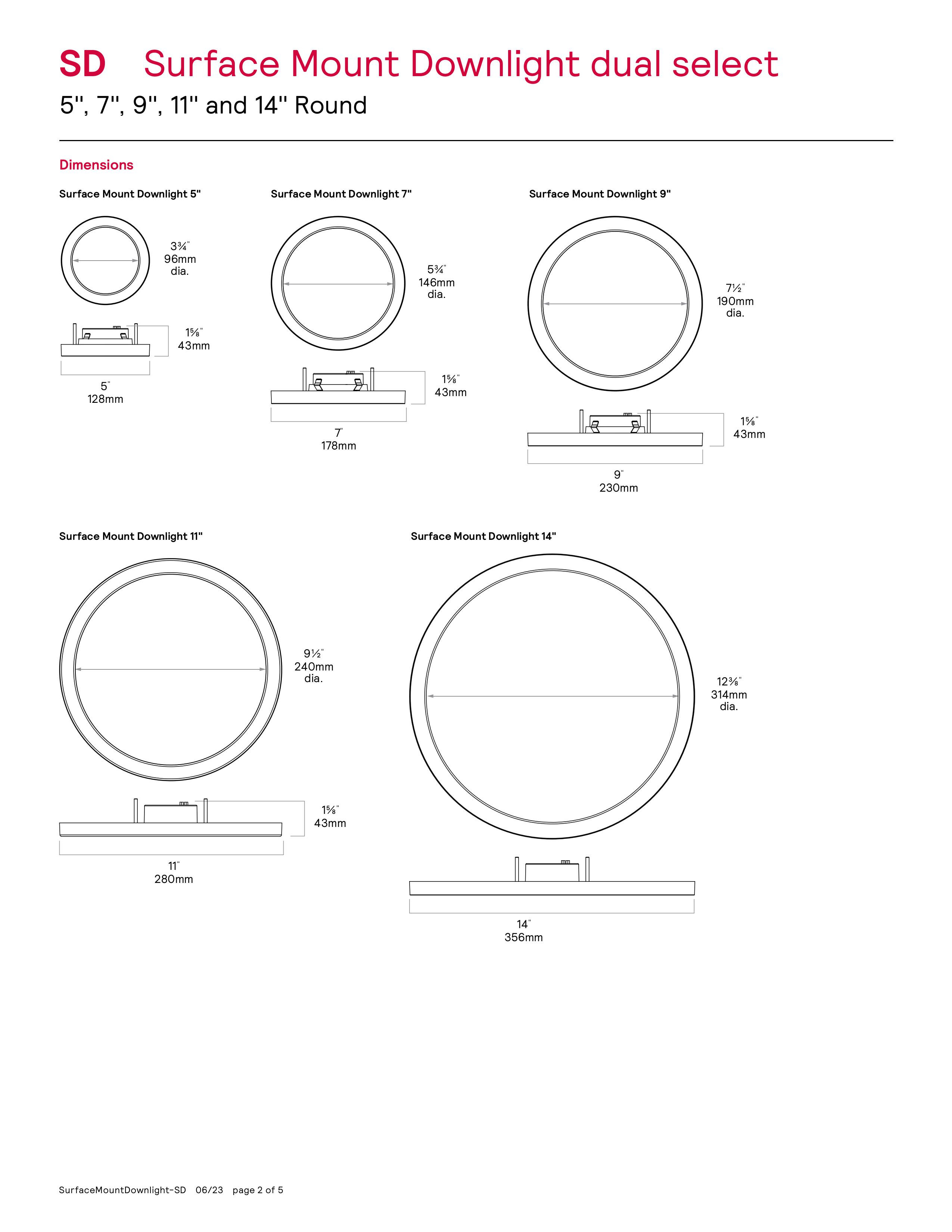

What size is the fixture?
This is the 7-inch round model.
What is the CRI?
The fixture provides 90+ CRI, helping objects and interior finishes appear natural and accurately colored.
Is it suitable for damp locations?
Yes. The SD7R10ESCT1W is listed as suitable for damp locations.
Is the SD7R10ESCT1W wet-location rated?
The manufacturer's current documentation identifies this model as damp-location rated. It should not be advertised as wet-location rated unless the specific installation and current product labeling indicate otherwise.
Can I use it in a bathroom?
It can be used in appropriate damp-location applications. Areas directly exposed to water may require a specifically wet-location-rated fixture depending on the installation and applicable electrical code.
How long does the LED last?
The integrated LED system has an estimated L70 rated life of approximately 50,000 hours.
Is it ENERGY STAR certified?
Yes. The fixture is ENERGY STAR certified.
Is it Title 24 / JA8 compliant?
Yes. The SD7R10ESCT1W is listed as meeting applicable California Title 24 / JA8 requirements.
What is the beam angle?
The fixture provides a broad beam of approximately 110 degrees, making it well suited for general room illumination.
What color is the fixture?
The SD7R10ESCT1W has a white finish.
What is the UPC?
The manufacturer-listed UPC is:
190096131808
What is the Signify product number?
The Signify product number is:
911401836684
Who manufactures the SD7R10ESCT1W?
The fixture is manufactured under the Lightolier brand by Signify.
Is this fixture good for replacing older ceiling lights?
Yes. Its low-profile surface-mount design makes it an excellent option for many remodeling and replacement applications where a clean LED downlight appearance is desired without installing a traditional recessed can.
IMPORTANT MODEL DIFFERENCE
Do not confuse:
SD7R10ESCT1W
- 1,000 Lumens
- 14 Watts
- 120V
- TRIAC Dimming
- 5CCT Selectable
