The Lightolier by Signify THPJ109SCTWH Performance LED Track Head is a versatile commercial-grade track lighting solution designed for retail displays, accent lighting, task lighting, hospitality, offices and other indoor applications. This model features a Juno J-type track adapter, making it an excellent LED track head for compatible Juno-style track systems.
The THPJ109SCTWH delivers approximately 1,000 lumens while consuming only 11 watts, providing efficient, focused LED illumination. Its field-selectable color temperature allows the installer or end user to choose between 2700K, 3000K, 3500K or 4000K, making one track head suitable for a wide variety of environments.
With 90 CRI, the fixture provides excellent color rendering, making it especially useful for retail displays, artwork, merchandise, hospitality spaces and other applications where accurate and attractive color appearance is important.
A major advantage of the Performance Track Head is its beam flexibility. The fixture includes both 24° Narrow Flood and 36° Wide Flood beam options, allowing the light distribution to be tailored to the application.
The adjustable track-head design allows the light to be aimed where it is needed, making the THPJ109SCTWH an excellent solution for accent, display and task lighting applications.
Finished in matte white, the fixture provides a clean, modern appearance that integrates well with compatible white track systems and commercial interiors.
KEY FEATURES
• Lightolier by Signify Performance LED Track Head
• Juno J-type track adapter
• 1,000 lumen light output
• Energy-efficient 11W integrated LED
• 4 selectable color temperatures
• 2700K / 3000K / 3500K / 4000K
• 90 CRI for excellent color rendering
• 24° Narrow Flood beam included
• 36° Wide Flood beam included
• 120V operation
• Dimmable
• Adjustable track-head design
• Matte white finish
• Integrated LED light source
• Ideal for display, accent and task lighting
• Excellent for retail and commercial applications
• Long-life LED technology

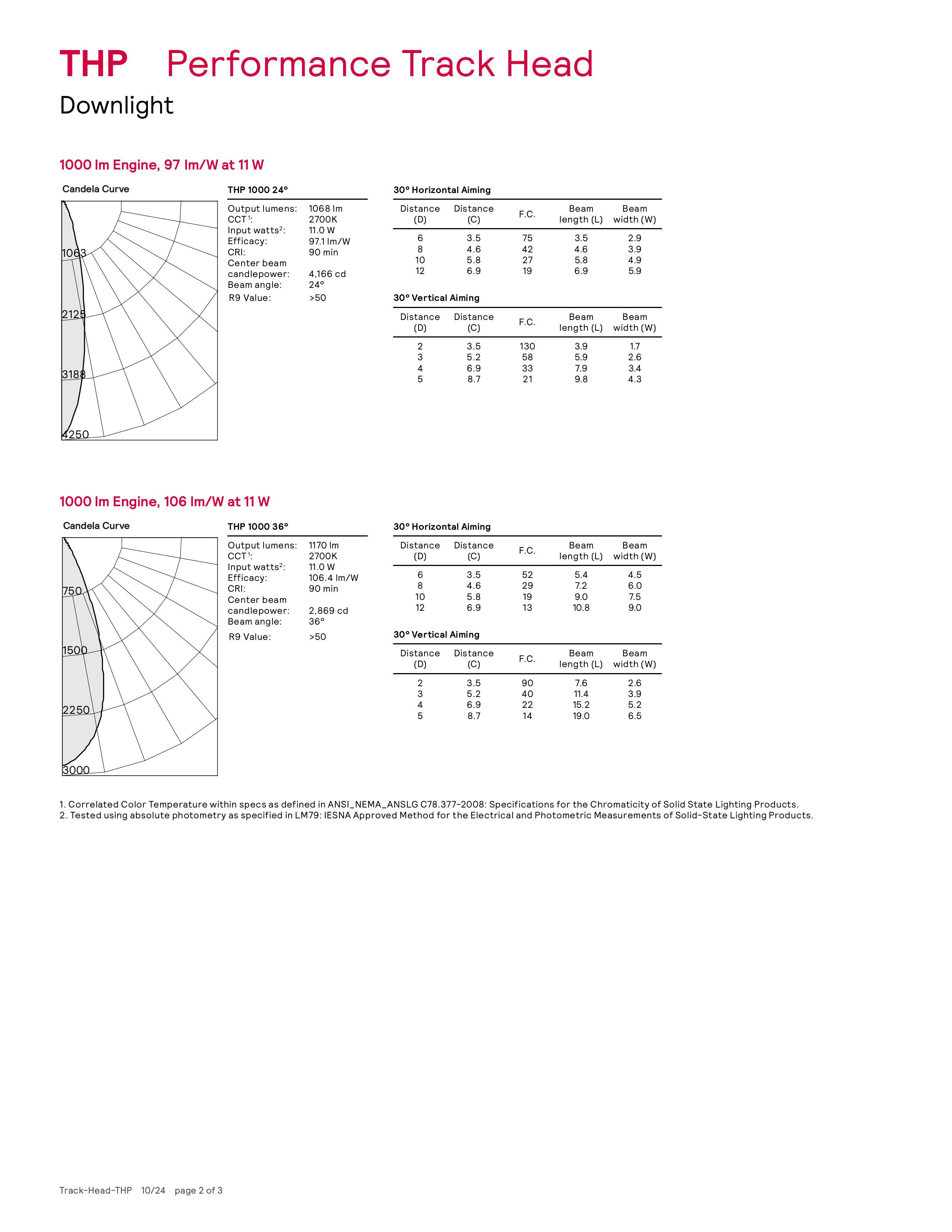

TECHNICAL SPECIFICATIONS
Brand: Lightolier by Signify
Catalog Number: THPJ109SCTWH
Product Family: Performance Track Head / THP
Product Type: LED Track Head
Track Adapter: Juno J-Type
Light Source: Integrated LED
Luminous Flux: 1,000 Lumens
Wattage: 11 Watts
Color Temperature: Field Selectable
CCT Settings: 2700K / 3000K / 3500K / 4000K
CRI: 90
Voltage: 120V
Dimming: TRIAC / Phase-Cut
Beam Options: 24° Narrow Flood and 36° Wide Flood
Finish: Matte White
Application: Indoor Track Lighting
Fixture Style: Adjustable Cylinder Track Head
Rated Life: Approximately 50,000 Hours
Warranty: 5-Year Limited Warranty
SELECTABLE COLOR TEMPERATURE
The THPJ109SCTWH provides four field-selectable color temperatures:
2700K – Warm White – Creates a warm, inviting atmosphere ideal for hospitality, restaurants, residential-style retail displays and decorative applications.
3000K – Warm / Neutral White – A popular choice for retail stores, galleries, hospitality and general accent lighting.
3500K – Neutral White – Provides a balanced appearance suitable for commercial spaces, offices and modern retail environments.
4000K – Cool / Neutral White – Crisp, clean illumination ideal for commercial displays, workspaces and applications where a whiter appearance is preferred.
TWO BEAM OPTIONS INCLUDED
The Performance Track Head provides additional flexibility by including two beam-angle options:
24° Narrow Flood – Produces a more concentrated beam for highlighting merchandise, artwork, architectural features and specific display areas.
36° Wide Flood – Provides broader light distribution for general display, accent and task lighting.
This allows the same fixture to be adapted to different mounting heights and lighting requirements.

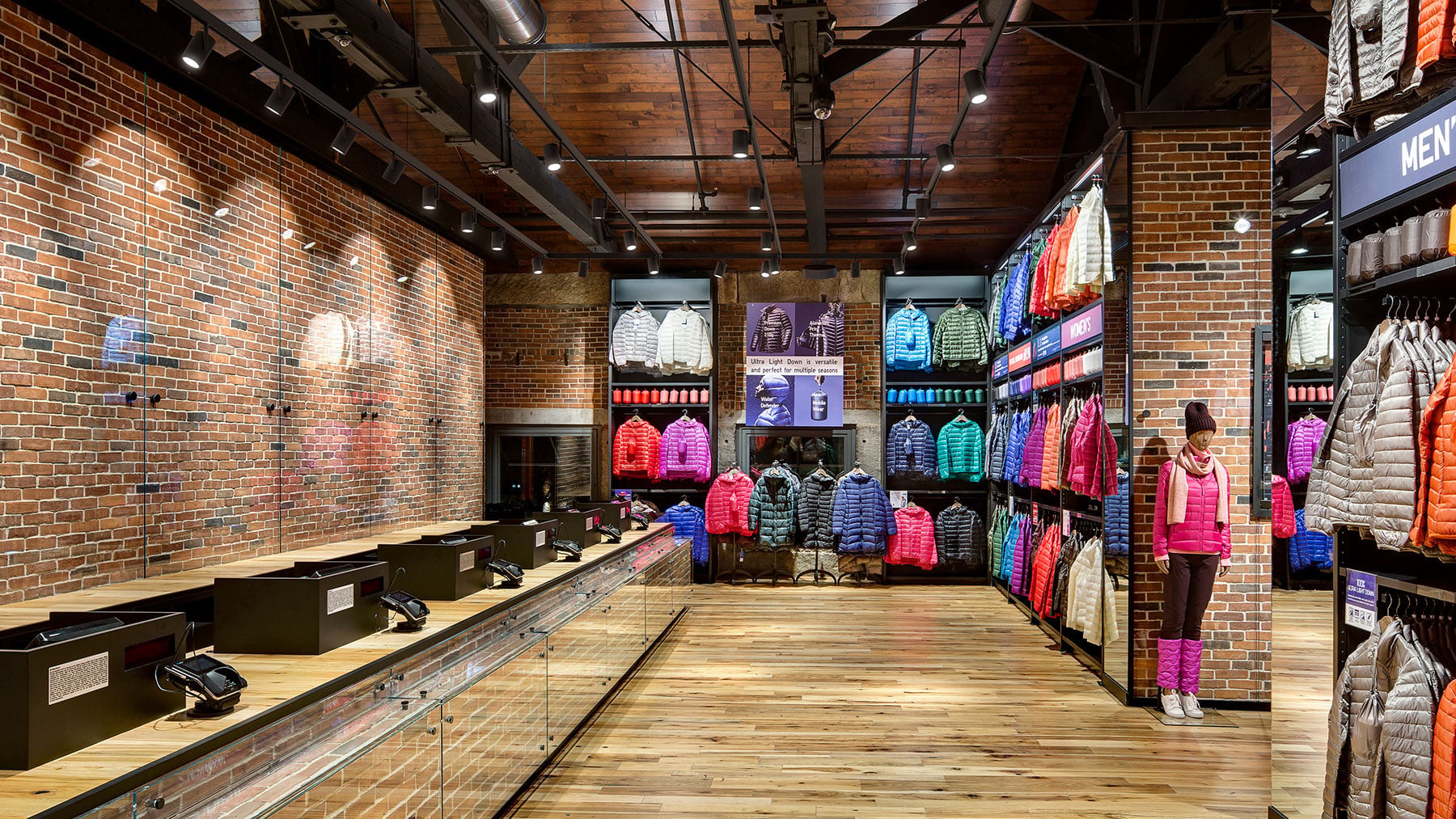

APPLICATIONS
Ideal for:
• Retail stores
• Merchandise displays
• Showrooms
• Art galleries
• Museums
• Hospitality
• Hotels
• Restaurants
• Offices
• Commercial interiors
• Accent lighting
• Display lighting
• Task lighting
• Architectural highlighting
INSTALLATION
The THPJ109SCTWH is equipped with a Juno J-type track adapter and is designed for use with compatible Juno-style track systems.

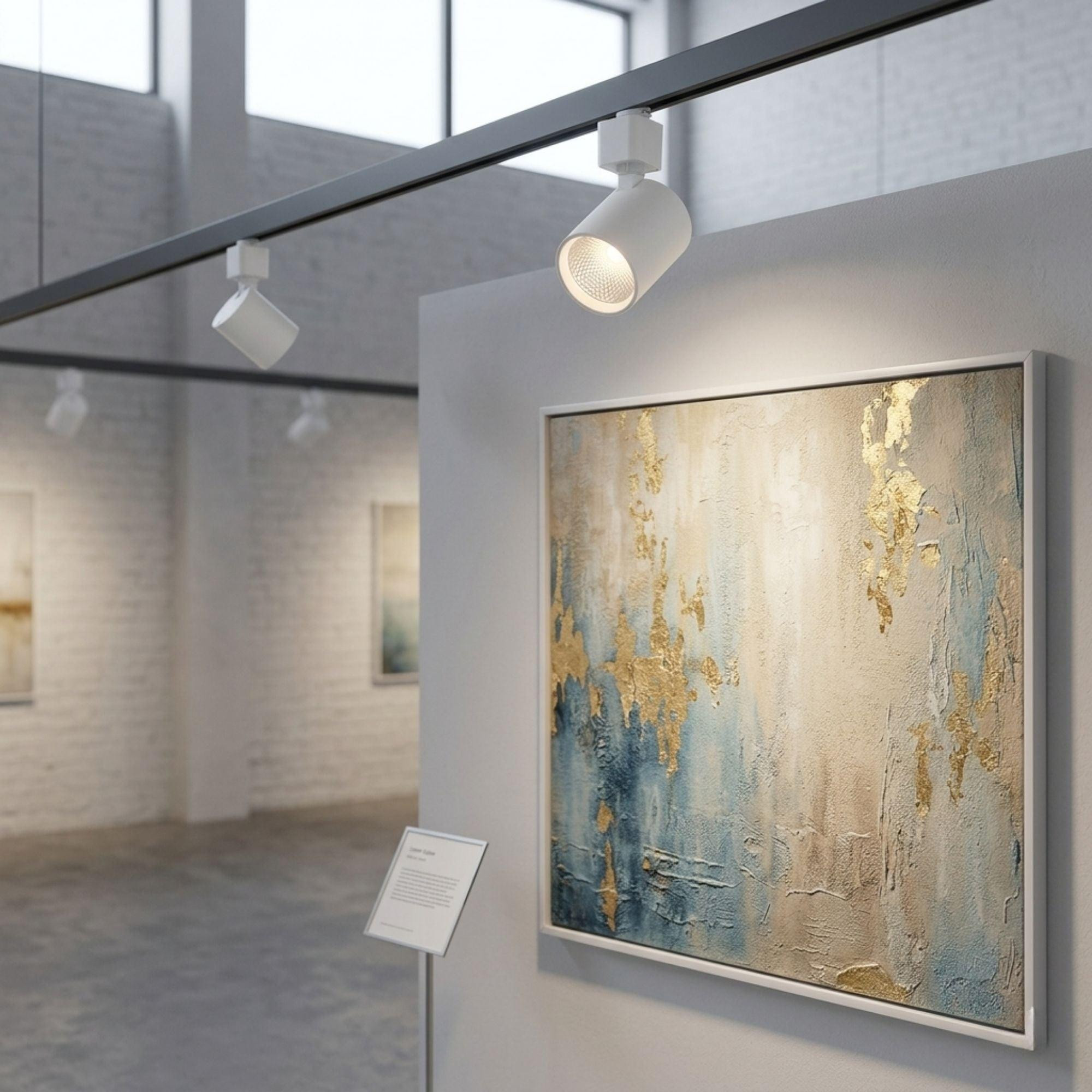

The adjustable fixture allows the beam to be aimed toward merchandise, artwork, architectural features, work surfaces or other areas requiring focused illumination.
Always verify track compatibility before installation, particularly when replacing an existing track head, because different track systems and adapter types are not necessarily interchangeable.
FREQUENTLY ASKED QUESTIONS
What is the THPJ109SCTWH?
It is a Lightolier by Signify Performance LED track head featuring a Juno J-type track adapter, 1,000-lumen output, selectable CCT and interchangeable beam options.
How many lumens does it produce?
The THPJ109SCTWH produces approximately 1,000 lumens.
How many watts does it use?
The fixture uses approximately 11 watts.
What color temperatures are available?
The fixture is field selectable between 2700K, 3000K, 3500K and 4000K.
Is this a 5CCT fixture?
No. This model provides four selectable CCT settings: 2700K, 3000K, 3500K and 4000K.
What is the CRI?
The fixture provides 90 CRI for excellent color rendering.
What type of track does it fit?
The J in THPJ identifies the Juno J-type adapter. It is intended for compatible Juno-style track systems.
Does it fit Lightolier track?
This particular THPJ configuration uses the Juno adapter. The corresponding THPL configuration uses the Lightolier adapter. Always match the adapter to the existing track system.
What beam angle does it have?
The Performance Track Head includes both 24° Narrow Flood and 36° Wide Flood beam options.
Is it dimmable?
Yes. The 120V fixture is designed for dimming with appropriate compatible controls.
What voltage does it operate on?
The fixture operates on 120V.
What color is the fixture?
This WH configuration has a matte white finish.
Is the LED replaceable?
The fixture uses an integrated LED light source rather than a conventional replaceable lamp.
Where is this track head typically used?
Typical applications include retail displays, showrooms, galleries, hospitality spaces, offices, accent lighting and task lighting.
Who manufactures THPJ109SCTWH?
It is manufactured under the Lightolier brand by Signify.
