The Day-Brite CFI by Signify VTS450L840-UN3-DIM VTS Sealed Strip is a rugged 4-foot LED vapor-tight / sealed strip light designed for demanding indoor and outdoor environments where moisture, dust and contaminants may be present. Delivering 5,000 lumens at 4000K while consuming approximately 44 watts, this fixture provides efficient, dependable illumination for commercial and industrial applications.

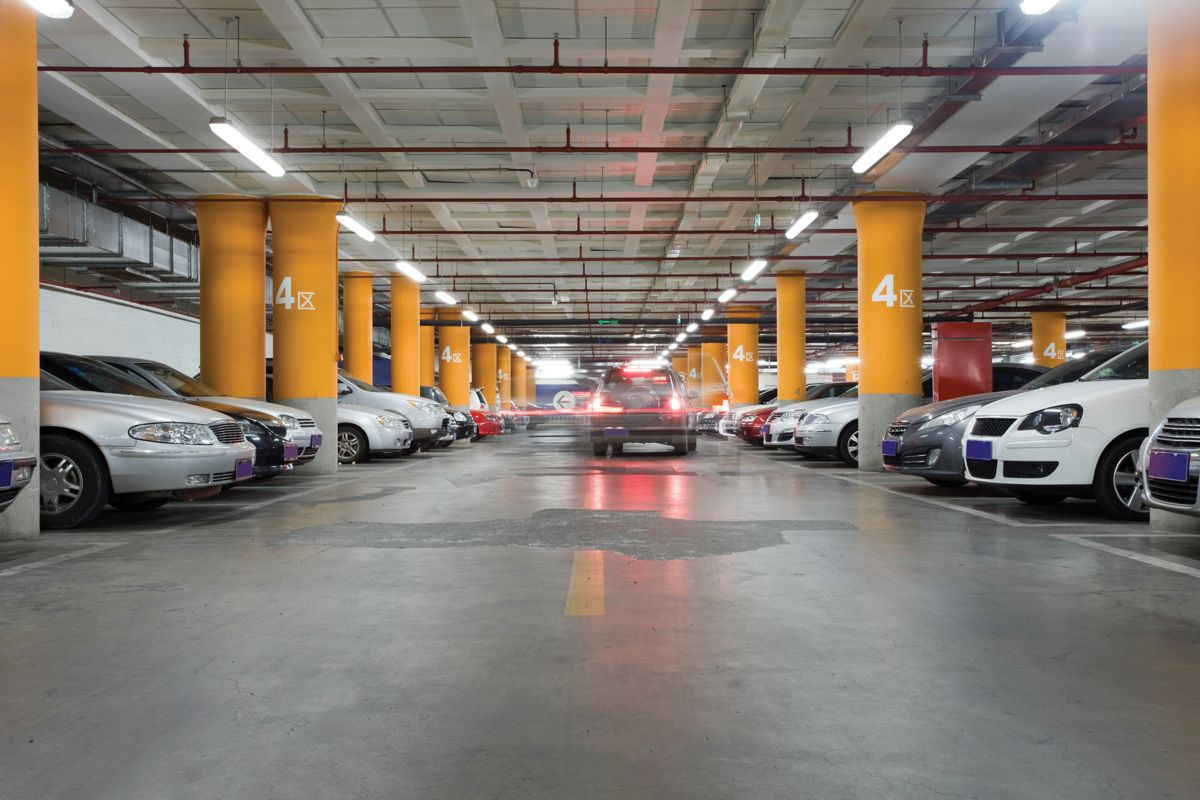

Built with a durable sealed housing, gasketed construction and a frosted polycarbonate lens, the VTS Sealed Strip helps protect the LED components from harsh environmental conditions. The fixture carries an IP66 rating and is suitable for wet locations, making it an excellent lighting solution for parking garages, refrigerated and cold-storage areas, industrial facilities, canopies and other demanding locations.
The VTS450L840-UN3-DIM operates on 120–347V universal voltage and includes a 0–10V dimming driver, allowing it to work across a wide range of commercial electrical systems while providing compatible dimming control.
Unlike the selectable-lumen and selectable-CCT versions in the VTS family, the VTS450L840-UN3-DIM is a fixed-output model providing 5,000 lumens at 4000K with greater than 80 CRI.
The fixture can be surface mounted to ceilings or walls or suspended using appropriate mounting hardware. Wraparound mounting brackets are included for convenient installation.
KEY FEATURES
• 4-foot LED sealed strip / vapor-tight fixture
• 5,000 lumen light output
• Approximately 44W power consumption
• Fixed 4000K neutral/cool white color temperature
• Greater than 80 CRI
• 120–347V universal voltage
• 0–10V dimmable
• IP66 rated
• NEMA 4X rated
• Suitable for wet locations
• Frosted polycarbonate lens
• Durable polycarbonate housing
• Gasketed construction provides a tight seal between lens and housing
• Stainless steel latches
• Surface, wall or suspended mounting capability
• Wraparound mounting brackets included
• DLC 5.1 Standard
• NSF Listed for Splash and Non-Food Zones
• Suitable for indoor and outdoor applications
• 5-year limited manufacturer warranty
TECHNICAL SPECIFICATIONS
Brand: Day-Brite CFI by Signify
Series: VTS Sealed Strip
Catalog Number: VTS450L840-UN3-DIM
Signify Product Number: 911401825085
UPC: 190096196524
Fixture Type: LED Sealed Strip / Vapor-Tight Fixture
Fixture Length: 4 Foot
Light Output: 5,000 Lumens
Wattage: Approximately 44W
Efficacy: Approximately 115 lm/W
Color Temperature: 4000K
CCT Selectable: No – Fixed 4000K
CRI: >80
Voltage: 120–347V
Dimming: 0–10V
Lens: Frosted Polycarbonate
Location Rating: Wet Location
IP Rating: IP66
NEMA Rating: NEMA 4X
Mounting: Surface, Wall or Suspended
DLC: DLC 5.1 Standard
NSF: Listed for Splash and Non-Food Zones
Warranty: 5-Year Limited Warranty
RUGGED SEALED CONSTRUCTION
The VTS450L840-UN3-DIM is designed for environments where conventional strip lights may be exposed to moisture, dust and other contaminants. A gasket provides a tight seal between the polycarbonate housing and frosted polycarbonate lens.
Its IP66 and NEMA 4X ratings make the VTS an excellent choice for demanding commercial and industrial environments.
5000 LUMENS / 4000K
This model delivers approximately 5,000 lumens at a fixed 4000K color temperature.
4000K produces a clean neutral-white light commonly used in commercial, industrial, warehouse, parking and utility applications where visibility and clarity are important.
UNIVERSAL VOLTAGE & 0-10V DIMMING
The VTS450L840-UN3-DIM operates from 120 through 347 volts, allowing the same fixture to be used across a wide range of commercial electrical systems.
The included 0–10V dimming driver provides compatible lighting-control capability when connected to an appropriate 0–10V control.
APPLICATIONS
Ideal for:
• Parking garages
• Parking structures
• Refrigerated areas
• Cold-storage facilities
• Industrial facilities
• Warehouses
• Utility areas
• Maintenance areas
• Canopies
• Covered outdoor areas
• Commercial facilities
• Manufacturing facilities
• Damp and wet environments
• Indoor and outdoor applications
INSTALLATION & MOUNTING
The VTS Sealed Strip provides flexible mounting options. It can be surface mounted to ceilings or walls or suspended using appropriate brackets, chain or cable.
Wraparound mounting brackets are included with the fixture along with screws and expansion bolts.
FREQUENTLY ASKED QUESTIONS
What is the VTS450L840-UN3-DIM?
It is a 4-foot Day-Brite CFI VTS LED sealed strip / vapor-tight fixture designed for demanding indoor and outdoor commercial applications.
How many lumens does it produce?
The fixture produces approximately 5,000 lumens.
What wattage is it?
The fixture consumes approximately 44 watts.
What color temperature is it?
The VTS450L840-UN3-DIM has a fixed 4000K color temperature.
Is the color temperature selectable?
No. This particular model is fixed at 4000K.
Is the lumen output selectable?
No. The VTS450L840-UN3-DIM is the fixed 5,000-lumen version.
What voltage does it operate on?
It operates from 120–347V.
Is it dimmable?
Yes. It includes a 0–10V dimming driver.
Is VTS450L840-UN3-DIM wet-location rated?
Yes. The VTS family is suitable for wet locations.
What is the IP rating?
The fixture is IP66 rated.
What does IP66 mean?
IP66 indicates a high level of protection against dust and powerful water jets, making the fixture appropriate for demanding environments when properly installed.
Can it be used outdoors?
Yes. Signify identifies the VTS Sealed Strip for both indoor and outdoor applications when properly installed.
Can it be used in a parking garage?
Yes. Parking garages are one of the applications specifically identified by Signify for the VTS family.
Can it be used in refrigerated or cold-storage areas?
Yes. Signify specifically identifies refrigerated cold-storage applications as an intended use.
What type of lens does it have?
It uses a frosted polycarbonate lens.
How can it be mounted?
The fixture can be surface mounted on a ceiling or wall or suspended with appropriate brackets, chain or cable.
What is the UPC?
The UPC is 190096196524.
What is the Signify product number?
The Signify product number is 911401825085.
