Day-Brite CFI RHG Round LED High Bay – Selectable Lumens & CCT
The Day-Brite CFI RHG Round LED High Bay by Signify combines high-output LED performance, field-selectable settings and a modern round design for commercial and industrial high-bay lighting applications.
Designed for mid- to high-ceiling installations, the RHG LED high bay is an excellent lighting solution for warehouses, commercial buildings, large-format retail stores, high-ceiling common areas and other large indoor spaces.
Field-Selectable Lumen Output
The RHG series allows installers to select the appropriate light output in the field, providing multiple lumen packages from a single fixture.
The RHG1020L8CST-UN3-DIM offers three selectable lumen settings:
- 10,000 lumens
- 14,000 lumens
- 20,000 lumens
This flexibility allows one LED high bay to accommodate different mounting heights and lighting requirements while reducing the number of individual fixture configurations that contractors and facilities need to stock.

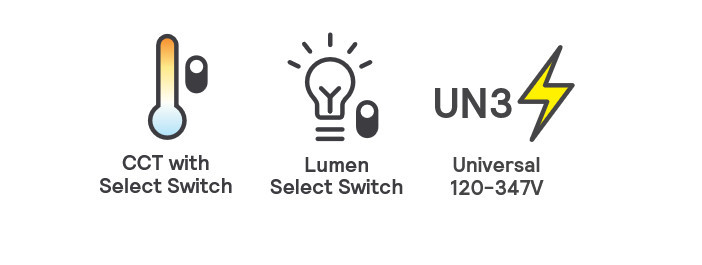

3 Selectable Color Temperatures
The RHG also features field-selectable CCT, allowing the installer to choose:
- 3000K – Warm White
- 3500K – Neutral White
- 4000K – Cool White
The factory default setting is 4000K.
Universal 120-347V Operation
The Day-Brite CFI RHG operates on 120-347V universal voltage, making it suitable for a wide range of commercial and industrial electrical systems.
0-10V Dimming
Standard 0-10V dimming provides additional lighting control and energy-saving capability when connected to a compatible dimming system.
High-Efficiency LED Performance
The RHG series is designed to provide excellent light output while reducing energy consumption compared with traditional HID high-bay fixtures. Depending on the selected configuration, the RHG family can achieve efficacy of up to approximately 176 lumens per watt.
3D-Printed Reflector Technology
The RHG is powered by advanced additive manufacturing technology and is available with a 3D-printed clear tufted reflector designed to provide attractive appearance and glare control.
The 3D-printed components are manufactured using materials containing at least 75% recycled or mass-balanced bio-circular content.
Product Features
- Brand: Day-Brite CFI
- Manufacturer: Signify / Genlyte Solutions
- Series: RHG
- Fixture Type: Round LED High Bay
- Model: RHG1020L8CST-UN3-DIM
- Selectable Lumens: 10,000 / 14,000 / 20,000
- Selectable CCT: 3000K / 3500K / 4000K
- CRI: 80
- Voltage: 120-347V
- Dimming: 0-10V
- Field-selectable lumen output
- Field-selectable color temperature
- Sensor ready
- Clear polycarbonate optical cover
- High-efficiency LED technology
- cULus listed
- RoHS compliant
- 5-year limited manufacturer warranty
Applications
The Day-Brite CFI RHG Round LED High Bay is ideal for:
- Warehouses
- Distribution and storage facilities
- Commercial buildings
- Large-format retail stores
- High-ceiling common areas
- Manufacturing facilities
- Industrial spaces
- Other mid- and high-ceiling applications
Why Choose the Day-Brite CFI RHG LED High Bay?
Instead of purchasing separate high-bay fixtures for different lumen outputs and color temperatures, the RHG1020L8CST-UN3-DIM provides multiple lighting configurations from a single fixture.
With selectable 10,000, 14,000 or 20,000 lumen output, selectable 3000K, 3500K or 4000K color temperature, universal 120-347V operation and standard 0-10V dimming, the Day-Brite CFI RHG provides a flexible LED high-bay solution for contractors, facilities and commercial lighting projects.
Frequently Asked Questions – Day-Brite CFI RHG LED Round High Bay
What is the Day-Brite CFI RHG LED Round High Bay?
The Day-Brite CFI RHG is a commercial and industrial LED round high bay manufactured by Signify. It is designed for warehouses, manufacturing facilities, retail spaces, distribution centers and other applications with mid- to high ceilings.
How many lumens does the RHG1020L8CST-UN3-DIM produce?
The RHG1020L8CST-UN3-DIM features field-selectable lumen output. The fixture can be set to approximately 10,000, 14,000 or 20,000 lumens, allowing one high bay to accommodate several different lighting requirements.
What color temperatures are available?
The Day-Brite RHG features three field-selectable color temperatures: 3000K, 3500K and 4000K. This allows the desired light color to be selected during installation.
Is the Day-Brite RHG high bay dimmable?
Yes. The RHG1020L8CST-UN3-DIM features 0-10V dimming for use with compatible commercial lighting controls.
What voltage does the RHG1020L8CST-UN3-DIM operate on?
The fixture operates on 120-347V universal voltage, making it suitable for a wide variety of commercial and industrial electrical systems.
What is the CRI of the Day-Brite RHG?
The RHG1020L8CST-UN3-DIM has an 80 CRI, providing good color rendering for warehouses, commercial facilities and industrial environments.
What types of buildings can use the Day-Brite RHG high bay?
The RHG is designed for applications such as warehouses, distribution centers, manufacturing facilities, large retail stores, storage facilities, commercial buildings and other spaces with mid- to high ceilings.
Can the lumen output be changed in the field?
Yes. One of the major advantages of the RHG1020L8CST-UN3-DIM is its field-selectable lumen output. The installer can select 10,000, 14,000 or 20,000 lumens to better match the mounting height and lighting requirements of the space.
Can the color temperature be changed in the field?
Yes. The fixture allows the installer to select 3000K, 3500K or 4000K color temperature in the field.
Is the RHG suitable for replacing traditional HID high bays?
The Day-Brite RHG can be used in many applications where traditional HID high-bay fixtures were previously installed. Its LED technology provides high lumen output with lower wattage, while also offering selectable output and 0-10V dimming.
Is the Day-Brite RHG sensor ready?
Yes. The RHG is sensor ready, allowing compatible lighting controls or sensors to be incorporated into the installation.
Is the Day-Brite RHG UL listed?
The RHG series is cULus listed and is also RoHS compliant.
What warranty does the Day-Brite RHG have?
The Day-Brite CFI RHG LED Round High Bay is covered by Signify's 5-year limited luminaire warranty, subject to the manufacturer's warranty terms and conditions.
Who manufactures the RHG LED Round High Bay?
The RHG is manufactured by Day-Brite CFI, part of Signify's professional lighting portfolio.
What is the model number of this fixture?
The model featured on this listing is RHG1020L8CST-UN3-DIM, a field-selectable Day-Brite CFI Round LED High Bay with selectable lumen output and selectable color temperature.
