The Day-Brite / CFI 2FGXG43L840-4-RS-UNV-DIM FluxGrid Gen 2 is a high-performance 2-foot x 4-foot recessed LED troffer designed to provide efficient, comfortable and uniform illumination for commercial, educational, healthcare and institutional environments.
The fixture delivers approximately 4300 lumens while consuming only 31 watts, providing excellent energy efficiency for general commercial illumination. It is an ideal LED solution for replacing traditional fluorescent 2x4 troffers in both new construction and renovation projects.
The 2FGXG43L840-4-RS-UNV-DIM provides a 4000K cool/neutral white color temperature with 80+ CRI, producing clean, crisp illumination that works especially well in offices, classrooms, healthcare facilities, retail stores and other professional environments.

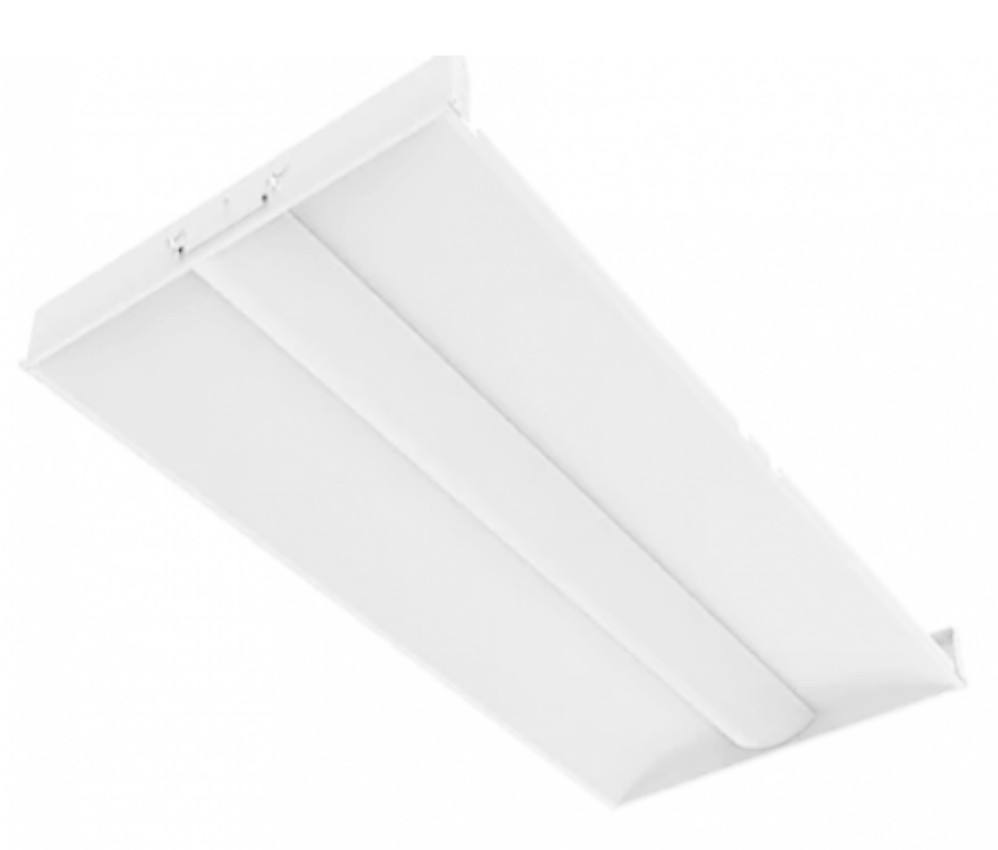

The fixture features a Diffuse Round Smooth (RS) center lens designed to provide broad, comfortable illumination while minimizing direct visibility of the LED light source. The architectural center-basket appearance creates a more attractive ceiling than a traditional flat fluorescent troffer.
The fixture operates on 120-277V universal voltage and includes 0-10V dimming, allowing light output to be adjusted when connected to compatible commercial dimming controls.
Its low-profile housing measures approximately 3-1/8 inches deep, minimizing penetration into the ceiling plenum. This is particularly useful in commercial buildings where ductwork, conduit, plumbing and other equipment can limit available space above the ceiling.
The FluxGrid Gen 2 is designed for convenient long-term serviceability. The LED boards and driver can be accessed from below the ceiling, helping simplify maintenance without requiring removal of the entire fixture.
KEY FEATURES
• 2-foot x 4-foot recessed LED troffer
• Day-Brite / CFI FluxGrid Gen 2 series
• Approximately 4300 lumen output
• Energy-efficient 31-watt LED operation
• 4000K cool / neutral white color temperature
• 80+ CRI
• Diffuse Round Smooth center lens
• Architectural center-basket design
• 120-277V universal voltage
• 0-10V dimmable
• Low-profile 3-1/8-inch housing
• Designed for standard grid ceilings
• Integral T-bar grid clips
• LED boards accessible from below
• LED driver accessible from below
• Matte white polyester powder-coat finish
• IC rated
• Suitable for damp locations
• DLC Premium listed
• Long-life integrated LED technology
• Excellent for offices, schools, healthcare and commercial interiors
TECHNICAL SPECIFICATIONS
Brand: Day-Brite / CFI
Catalog Number: 2FGXG43L840-4-RS-UNV-DIM
Product Family: FluxGrid Gen 2
Product Type: Recessed LED Troffer
Fixture Size: 2 ft x 4 ft
Nominal Lumens: 4300 Lumens
Wattage: Approximately 31 Watts
Color Temperature: 4000K
Light Color: Cool / Neutral White
CRI: 80+
Diffuser: Diffuse Round Smooth
Diffuser Code: RS
Voltage: 120-277V Universal Voltage
Dimming: 0-10V
Mounting: Recessed Grid Ceiling
Light Source: Integrated LED
Finish: Matte White Polyester Powder Coat
Length: Approximately 47.75 Inches
Width: Approximately 23.75 Inches
Height: Approximately 3.13 Inches
IC Rated: Yes
Location Rating: Damp Location
DLC: DLC Premium
Rated Lumen Maintenance: Greater than 100,000 Hours L70
Warranty: 5-Year Limited Warranty
Model Number: 912401608001
UPC: 784197707880
4300 LUMEN LED OUTPUT
The 2FGXG43L840-4-RS-UNV-DIM delivers approximately 4300 lumens while consuming only 31 watts.
This combination provides efficient commercial illumination while reducing energy consumption compared with traditional fluorescent 2x4 troffers.
The broad light distribution helps provide smooth, even general illumination throughout offices, classrooms and other commercial spaces.

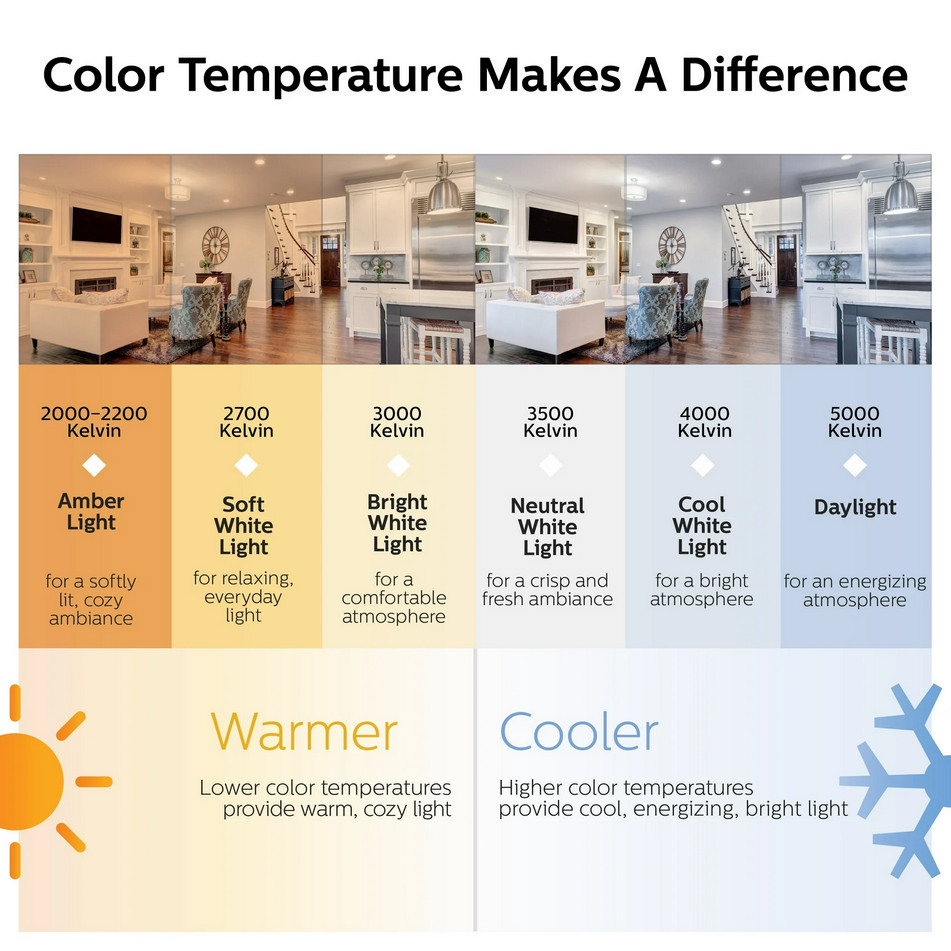

4000K COOL / NEUTRAL WHITE
This model provides a fixed 4000K color temperature.
4000K produces crisp, clean white illumination that is widely used in commercial and institutional environments.
It is particularly well suited for offices, classrooms, medical facilities, retail stores, work areas and other spaces where bright, professional-looking illumination is desired.
ROUND SMOOTH DIFFUSER
The RS designation identifies the fixture's Diffuse Round Smooth center lens.
The rounded diffuser creates an architectural center-basket appearance while helping distribute light broadly and comfortably throughout the space.
The smooth opal-style diffuser helps reduce direct visibility of the LED light source while maintaining efficient light output.
LOW-PROFILE FLUXGRID GEN 2 DESIGN
The FluxGrid Gen 2 features a low-profile housing measuring approximately 3-1/8 inches deep.
This shallow design minimizes penetration into the ceiling plenum, making the fixture particularly useful in commercial buildings where HVAC systems, electrical conduit and other equipment may restrict available ceiling space.
The LED boards and driver are accessible from below the ceiling, helping simplify future maintenance and service.
APPLICATIONS
Ideal for:

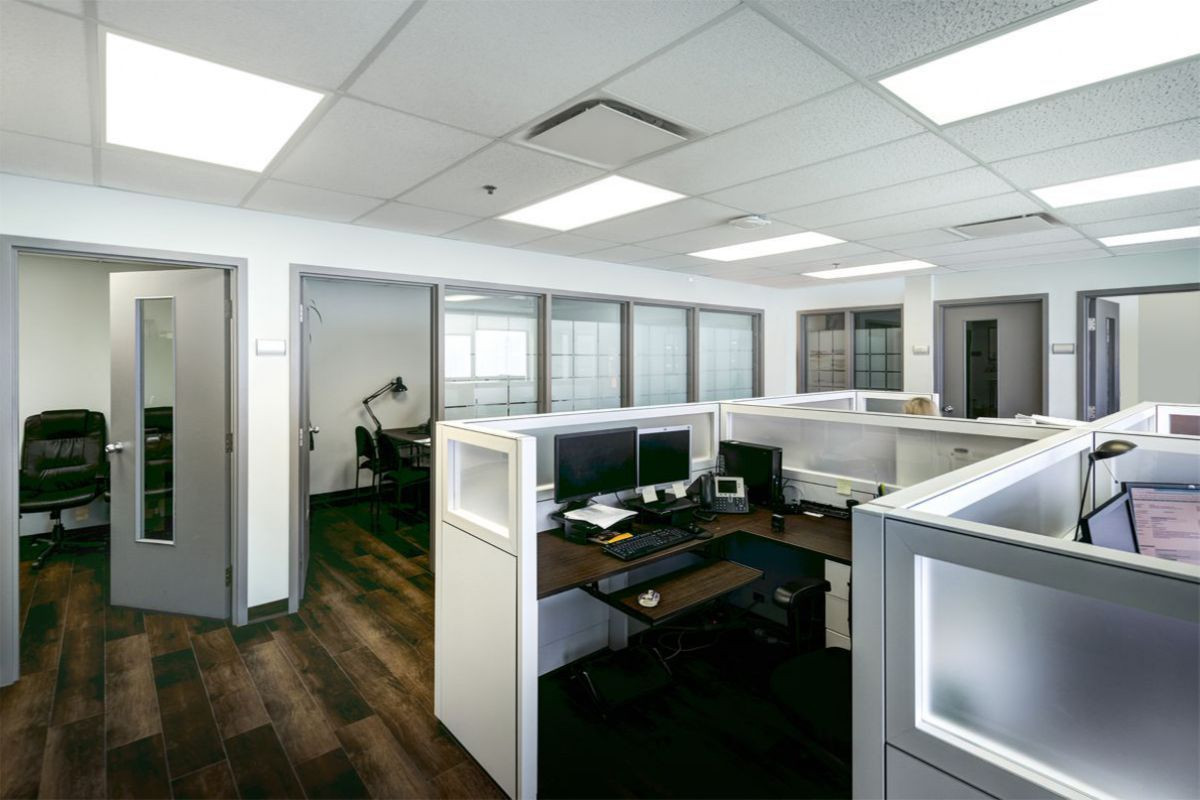

• Commercial offices
• Corporate buildings
• Conference rooms
• Schools

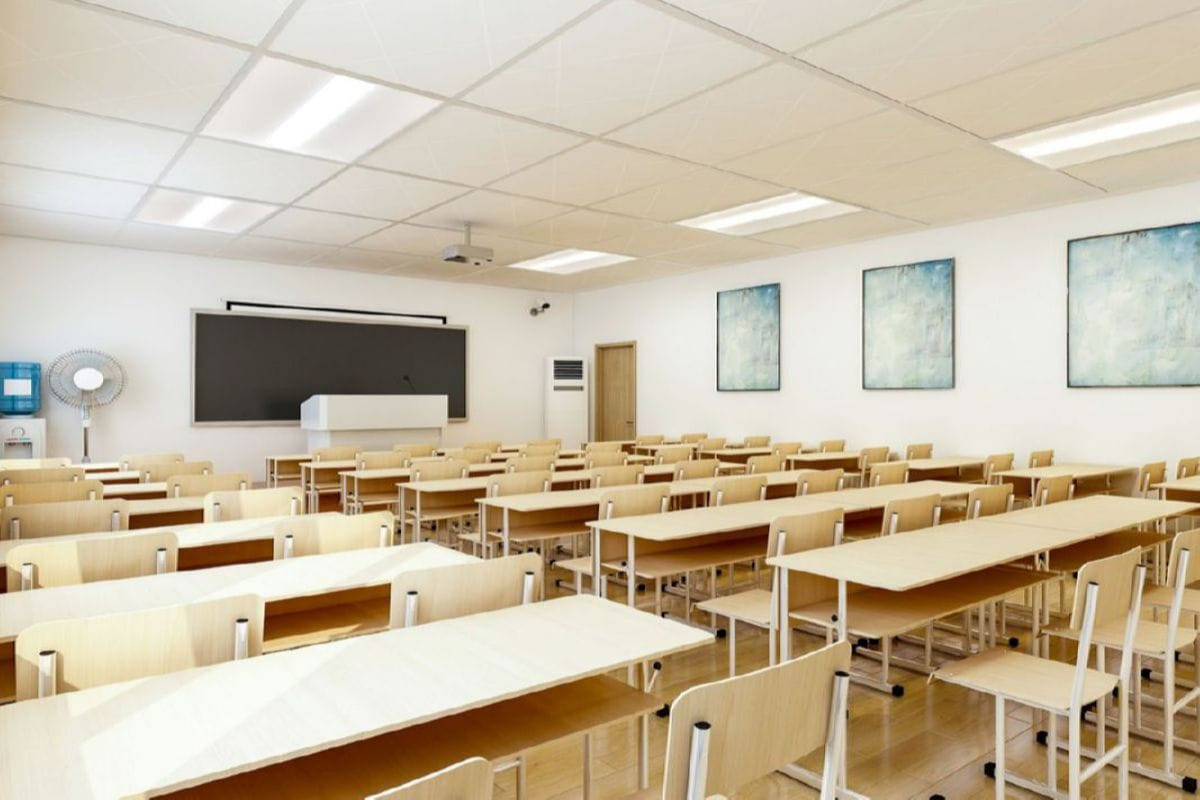

• Classrooms
• Universities
• Healthcare facilities
• Hospitals
• Medical offices
• Retail stores
• Showrooms
• Banks
• Government buildings
• Libraries
• Reception areas
• Hallways and corridors
• Multifamily common areas
• Commercial renovations
• New construction
• General commercial lighting
INSTALLATION
The 2FGXG43L840-4-RS-UNV-DIM is designed primarily for recessed installation in standard T-bar grid ceiling systems.
Integral T-bar grid clips are incorporated into the fixture body to help simplify installation.
The low-profile approximately 3.13-inch housing reduces the amount of ceiling-plenum space required compared with many traditional commercial troffers.
The fixture operates on 120-277V universal voltage and utilizes 0-10V dimming, allowing it to integrate with compatible commercial lighting controls.
The LED boards and driver can be accessed from below the ceiling for convenient servicing.
FREQUENTLY ASKED QUESTIONS
What is the 2FGXG43L840-4-RS-UNV-DIM?
It is a Day-Brite / CFI FluxGrid Gen 2 2x4 recessed LED troffer designed for commercial grid-ceiling applications.
How many lumens does it produce?
The fixture produces approximately 4300 lumens.
How many watts does it use?
The fixture consumes approximately 31 watts.
What color temperature is it?
This model provides a fixed 4000K cool/neutral white color temperature.
Is the color temperature selectable?
No. This particular configuration is a fixed 4000K fixture.
What is the CRI?
The fixture provides 80+ CRI.
What does RS mean in the model number?
RS means Diffuse Round Smooth, identifying the style of center diffuser used in this fixture.
What voltage does it operate on?
The fixture operates on 120-277V universal voltage.
Is it dimmable?
Yes. The fixture features 0-10V dimming.
What size is the fixture?
It is a nominal 2-foot x 4-foot recessed commercial luminaire.
What are the approximate dimensions?

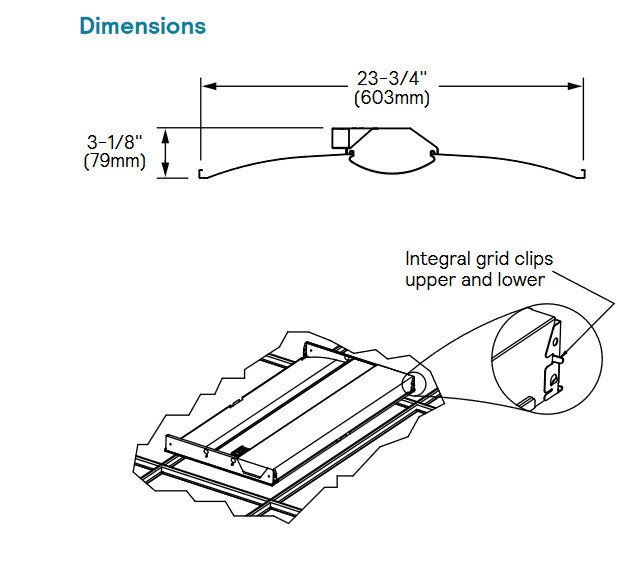

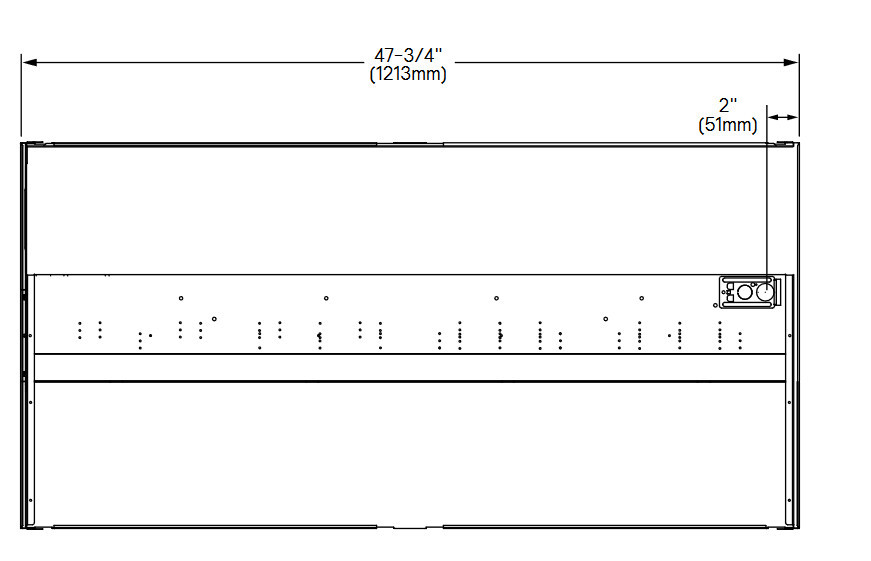

The fixture measures approximately 47.75 inches long x 23.75 inches wide x 3.13 inches high.
Can it be installed in a standard grid ceiling?
Yes. It is designed for installation in standard T-bar grid ceiling systems.
Can the driver be accessed from below the ceiling?
Yes. The LED boards and driver are designed to be accessible from below.
Is it IC rated?
Yes.
Is it suitable for damp locations?
Yes. The fixture is suitable for damp-location applications.
Is it DLC listed?
Yes. This configuration is DLC Premium listed.
What is the expected LED life?
The LED system has a projected L70 lumen maintenance greater than 100,000 hours.
What is the model number?
The model number is 912401608001.
What is the UPC?
The UPC is 784197707880.
Who manufactures this fixture?
The fixture is manufactured under the Day-Brite / CFI brand.
