The Day-Brite by Signify 2FGXG42B835-4-FS-UNV-DIM FluxGrid Gen 2 is a high-performance 2-foot by 4-foot recessed LED luminaire designed to deliver comfortable, efficient and uniform illumination for commercial and institutional environments.
The fixture produces approximately 4200 lumens while consuming only 30 watts, providing an energy-efficient alternative to traditional fluorescent troffers. Its modern low-profile design and diffuse flat smooth center lens create a clean architectural appearance while providing broad, evenly distributed illumination.
The 2FGXG42B835-4-FS-UNV-DIM provides a 3500K neutral-white color temperature with 80 CRI, making it an excellent choice for offices, classrooms, healthcare facilities, retail environments and other commercial spaces where comfortable general illumination is required.
The fixture operates on 120-277V universal voltage and includes 0-10V dimming, allowing light levels to be adjusted when connected to compatible commercial lighting controls.
The FluxGrid Gen 2 design has a low-profile housing measuring approximately 3-1/8 inches deep, minimizing penetration into the plenum space. The LED boards and driver are accessible from below by removing the diffuser and integral wireway cover, simplifying future service and maintenance.
KEY FEATURES
• 2-foot x 4-foot recessed LED troffer
• Day-Brite / CFI FluxGrid Gen 2 series
• Approximately 4200 lumen light output
• Energy-efficient 30-watt LED operation
• 3500K neutral-white color temperature
• 80 CRI
• Diffuse flat smooth center lens
• 120-277V universal voltage
• 0-10V dimmable
• Low-profile approximately 3-1/8-inch-deep housing
• Designed for standard grid ceilings
• Integral T-bar grid clips
• Driver and LED boards accessible from below
• Matte white polyester powder-coat finish
• Broad, comfortable general illumination
• DLC Premium listed
• Long-life integrated LED technology
• Excellent for offices, schools, healthcare, retail and commercial interiors
TECHNICAL SPECIFICATIONS
Brand: Day-Brite / CFI by Signify
Catalog Number: 2FGXG42B835-4-FS-UNV-DIM
Signify Model Number: 912401607992
UPC: 784197707842
Product Family: FluxGrid Gen 2
Product Type: Recessed LED Troffer
Fixture Size: 2 ft x 4 ft
Nominal Length: 48 Inches
Nominal Width: 24 Inches
Actual Length: Approximately 47.75 Inches
Actual Width: Approximately 23.75 Inches
Height: Approximately 3.13 Inches
Lumen Output: 4200 Lumens
Wattage: 30 Watts
Color Temperature: 3500K
Light Color: Neutral White
CRI: 80
Voltage: 120-277V Universal Voltage
Dimming: 0-10V
Lens: Diffuse Flat Smooth
Mounting: Recessed Grid Ceiling
Light Source: Integrated LED
Finish: Matte White
Air Function: Static
DLC: DLC Premium
Rated LED Life: Greater than 100,000-hour L70 projection
Warranty: 5-Year Limited Warranty

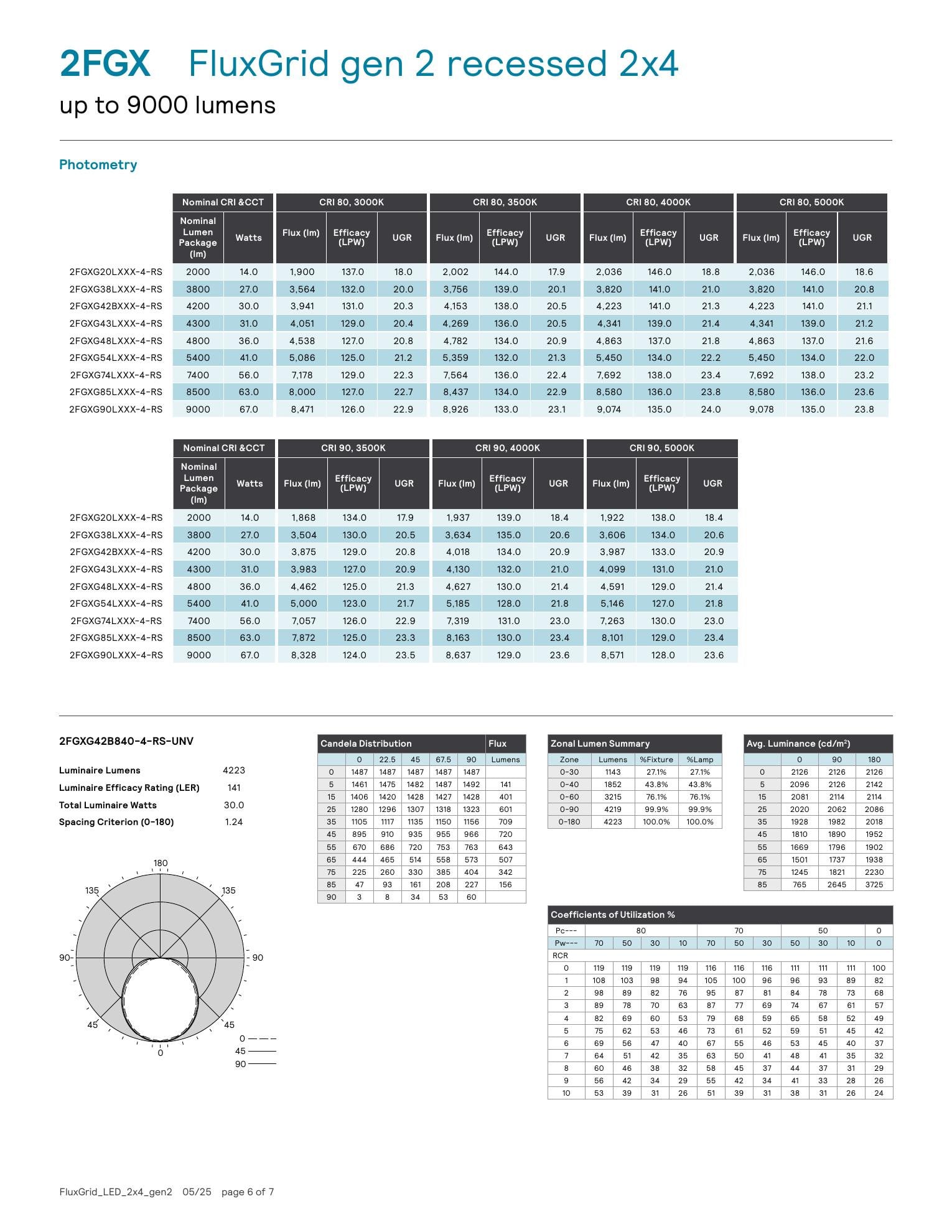

4200 LUMEN LED OUTPUT
The 2FGXG42B835-4-FS-UNV-DIM produces approximately 4200 lumens while consuming only 30 watts.
This provides an excellent balance of light output and energy efficiency for commercial applications and makes the FluxGrid Gen 2 an attractive LED replacement for traditional fluorescent 2x4 troffers.
The fixture's broad distribution helps provide smooth, uniform general illumination throughout the space.

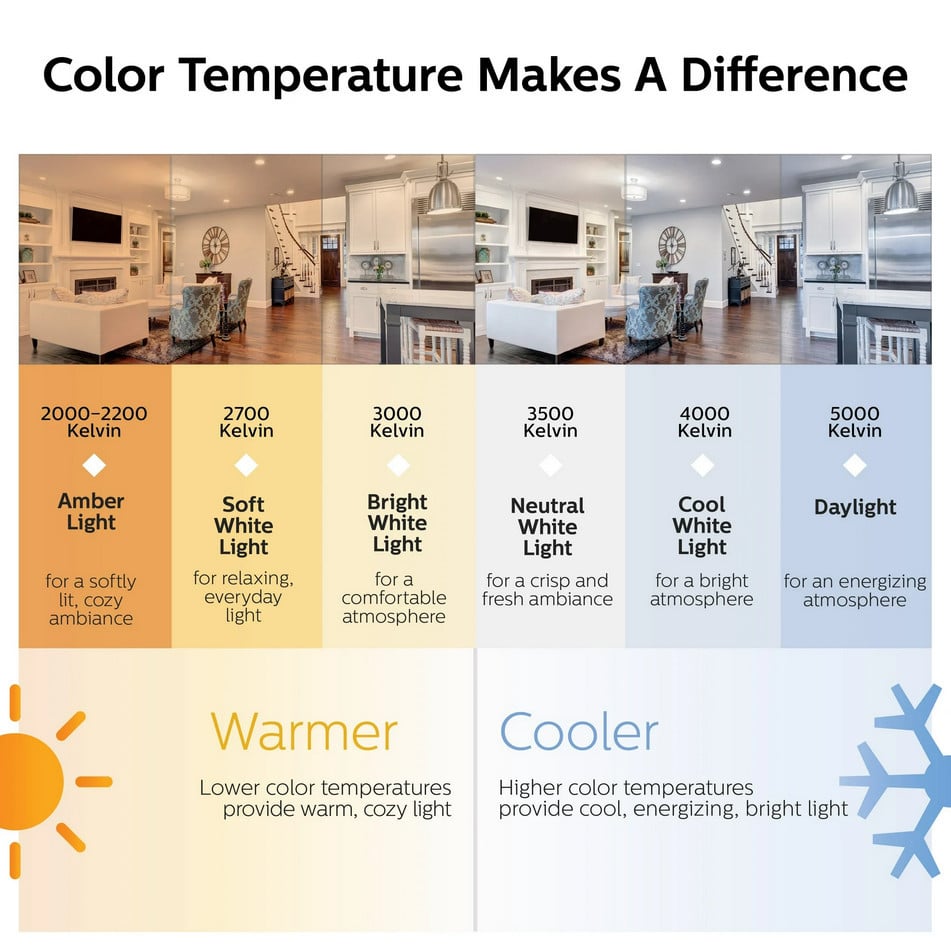

3500K NEUTRAL WHITE
The fixture provides a 3500K neutral-white color temperature.
3500K offers a balanced appearance between warm and cool white light and is commonly specified for commercial interiors where comfortable but clean illumination is desired.
It is particularly well suited for offices, classrooms, healthcare environments, conference rooms and commercial workspaces.
DIFFUSE FLAT SMOOTH LENS
The FS designation identifies the fixture's Diffuse Flat Smooth center lens.
The smooth diffuser helps reduce direct visibility of the LED light source while creating broad, comfortable and evenly distributed illumination.
Its clean architectural appearance allows the fixture to blend easily into standard commercial grid ceilings.
LOW-PROFILE FLUXGRID GEN 2 DESIGN
The FluxGrid Gen 2 features an approximately 3-1/8-inch-deep low-profile housing, minimizing penetration into the ceiling plenum.
This low-profile construction can be especially useful in commercial buildings where HVAC systems, conduit, plumbing and other equipment limit available space above the ceiling.
The diffuser can be removed from below without complicated frames or fasteners, providing convenient access to the internal LED boards and driver.

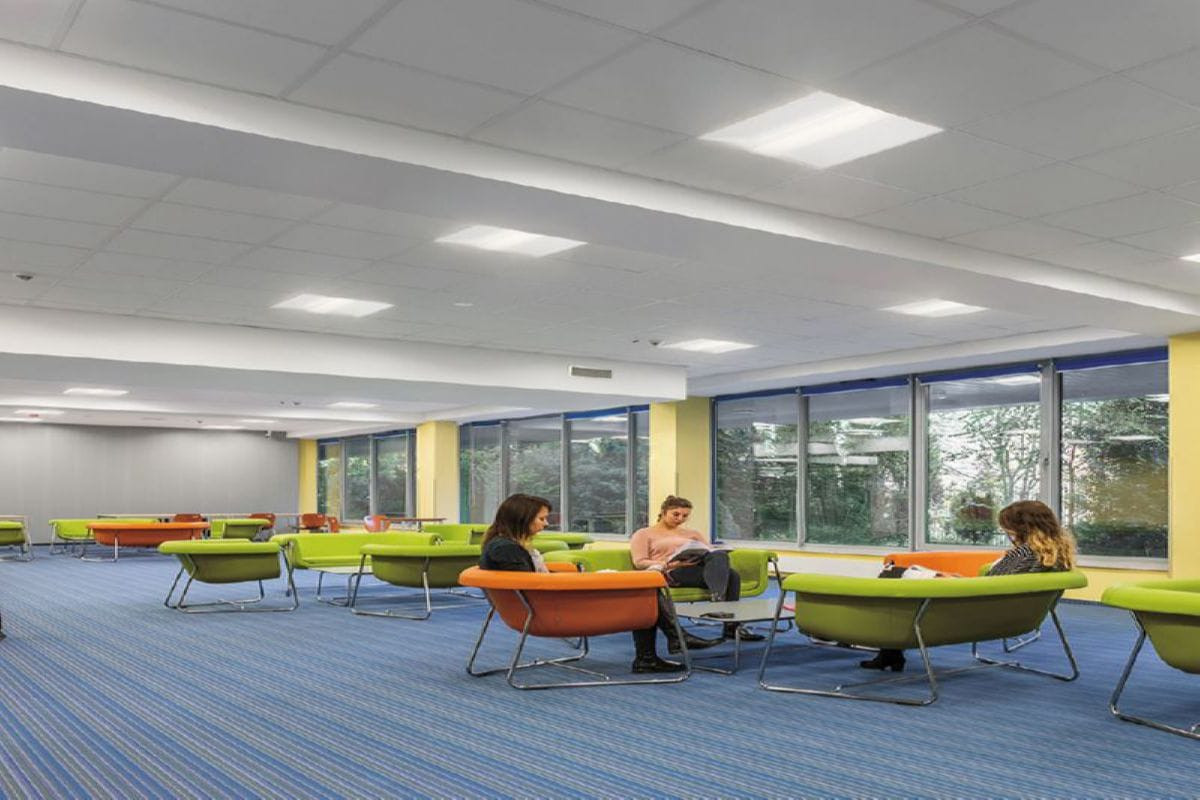

APPLICATIONS
Ideal for:
• Commercial offices
• Corporate buildings
• Conference rooms
• Schools
• Classrooms
• Universities
• Healthcare facilities
• Medical offices
• Retail stores
• Showrooms
• Banks
• Government buildings
• Libraries
• Hallways and corridors
• Reception areas
• Multifamily common areas
• Commercial renovations
• New construction
• General commercial lighting
INSTALLATION
The 2FGXG42B835-4-FS-UNV-DIM is designed primarily for recessed installation in standard T-bar grid ceilings.
Integral T-bar grid clips are incorporated into the fixture body to help simplify installation.
The low-profile approximately 3.13-inch housing reduces the amount of ceiling-plenum space required compared with many traditional commercial troffers.
Electrical components, including the LED driver and LED boards, can be accessed from below the ceiling by removing the diffuser and integral wireway cover.
FREQUENTLY ASKED QUESTIONS
What is the 2FGXG42B835-4-FS-UNV-DIM?
It is a Day-Brite by Signify FluxGrid Gen 2 2x4 recessed LED commercial troffer designed for grid-ceiling applications.
How many lumens does it produce?
The fixture produces approximately 4200 lumens.
How many watts does it use?
The fixture consumes approximately 30 watts.
What color temperature is it?
This model provides a fixed 3500K neutral-white color temperature.
Is the color temperature selectable?
No. This particular model is a fixed 3500K fixture.
What is the CRI?
The fixture provides 80 CRI.
What does FS mean in the model number?
FS stands for Diffuse Flat Smooth, describing the fixture's center diffuser/lens.
What voltage does it operate on?
The fixture operates on 120-277V universal voltage.
Is it dimmable?
Yes. The fixture features 0-10V dimming.
What size is the fixture?
It is a nominal 2-foot x 4-foot commercial recessed luminaire.
How deep is the fixture?
The FluxGrid Gen 2 housing is approximately 3.13 inches deep.
Can it be installed in a standard grid ceiling?
Yes. It is designed for recessed installation in standard T-bar grid ceiling systems.
Can the driver be accessed from below the ceiling?
Yes. The LED driver and LED boards can be accessed from below by removing the diffuser and integral wireway cover.
Is this fixture DLC listed?
Yes. This configuration is listed as DLC Premium.
What is the Signify model number?
The Signify model number is 912401607992.
What is the UPC?
The UPC is 784197707842.
Who manufactures this fixture?
It is manufactured under the Day-Brite / CFI brand by Signify.
