Product Description
Quantity of 4
AL70-NW-G2-AR-3-8-FAWS-TLRD3-BZ

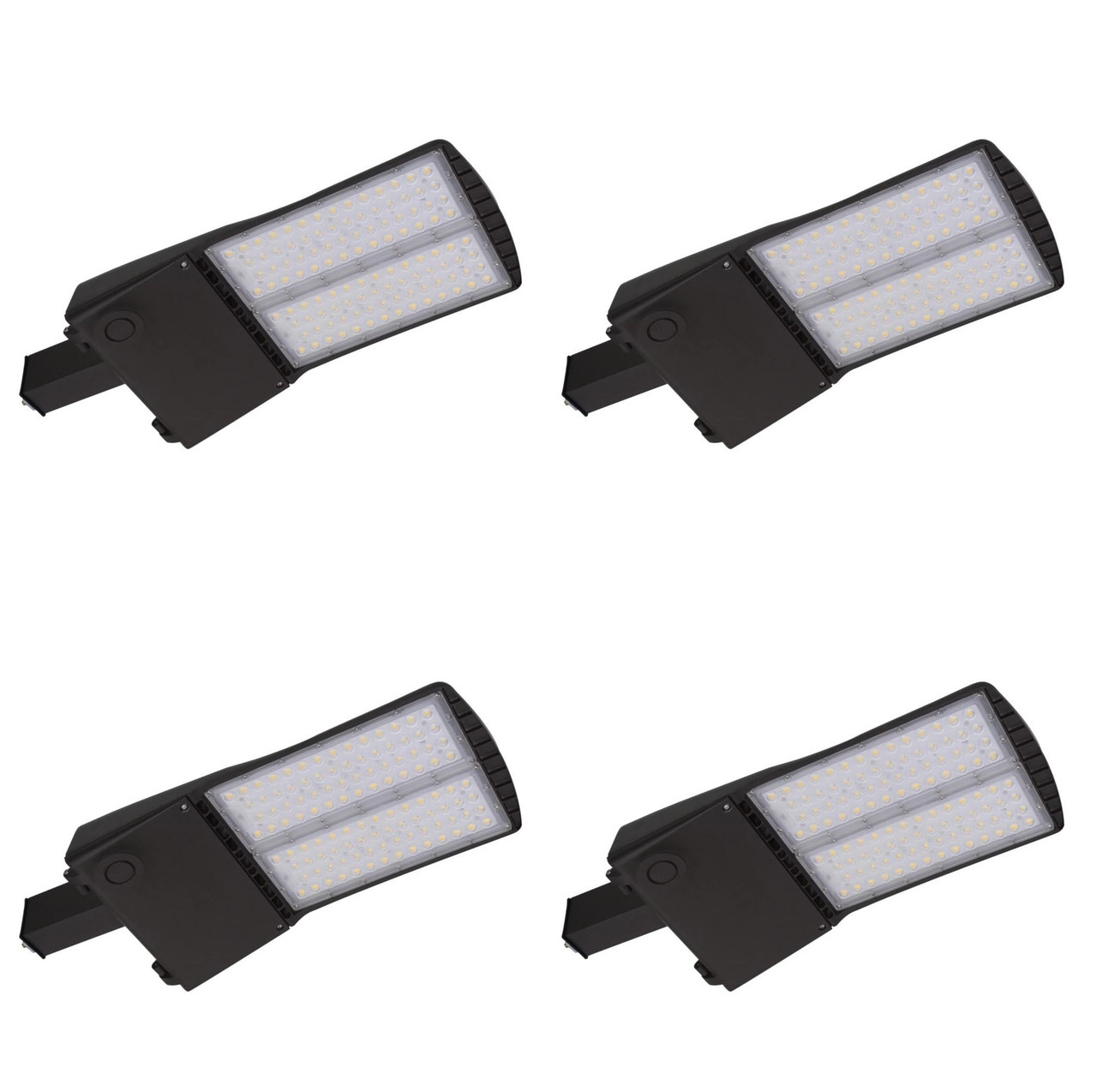

70 watt LED Area Light Gen2
Energy saving LED technology ideal for pole mounted area lighting applications.
Field Adjustable Wattage Selector (FAWS) Luminaire equipped with the ability to manually adjust the wattage in the field to reduce total luminaire lumen output and light levels. (46/55/63/71 watt field selectable) Lumen factory set to highest level.
7500-11500 lumens (depending on wattage selected)
4000K Color Temp
224 LEDs, Distribution Type 3
120-277V; Neutral White (electrical)
Receptacle 3 pin with shorting cap--Twist Lock Receptacle with 3 pins can be used with a twistlock photoelectric cell or a shorting cap.
Aluminum Die Cast housing with attachable arm made of low copper die cast aluminum alloy for high resistance to corrosion. Bronze color. Arm mounting
LED light engine rated IP66. Driver compartment rated to IP65
The sleek profile with optimized surface area and minimum use of heat fines allows the one piece housing to provide excellent convection heat transfer thermal management critical to long LED system life.
Twist lock receptacle with 3 pins can be used with a twistlock photoelectric cell or a shorting cap
