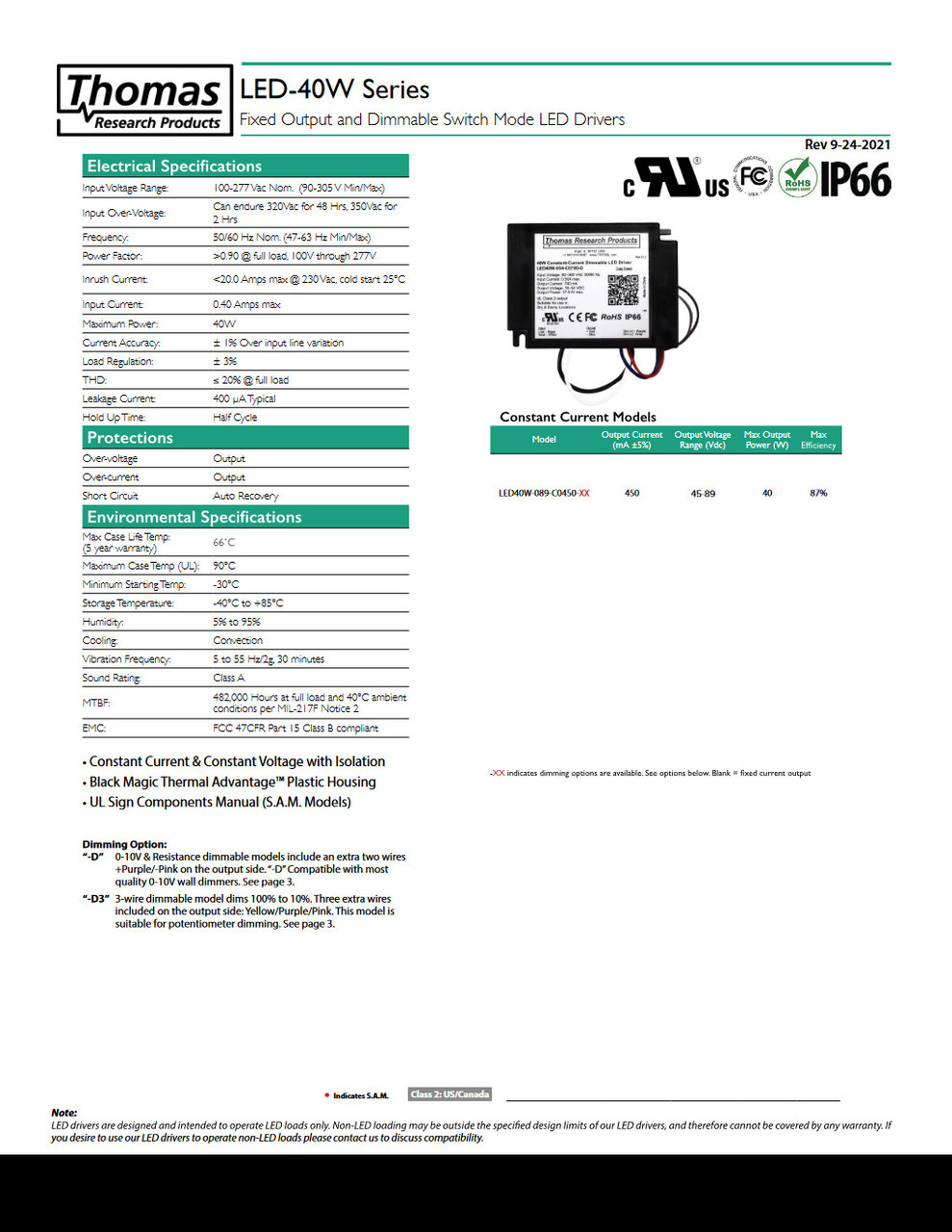

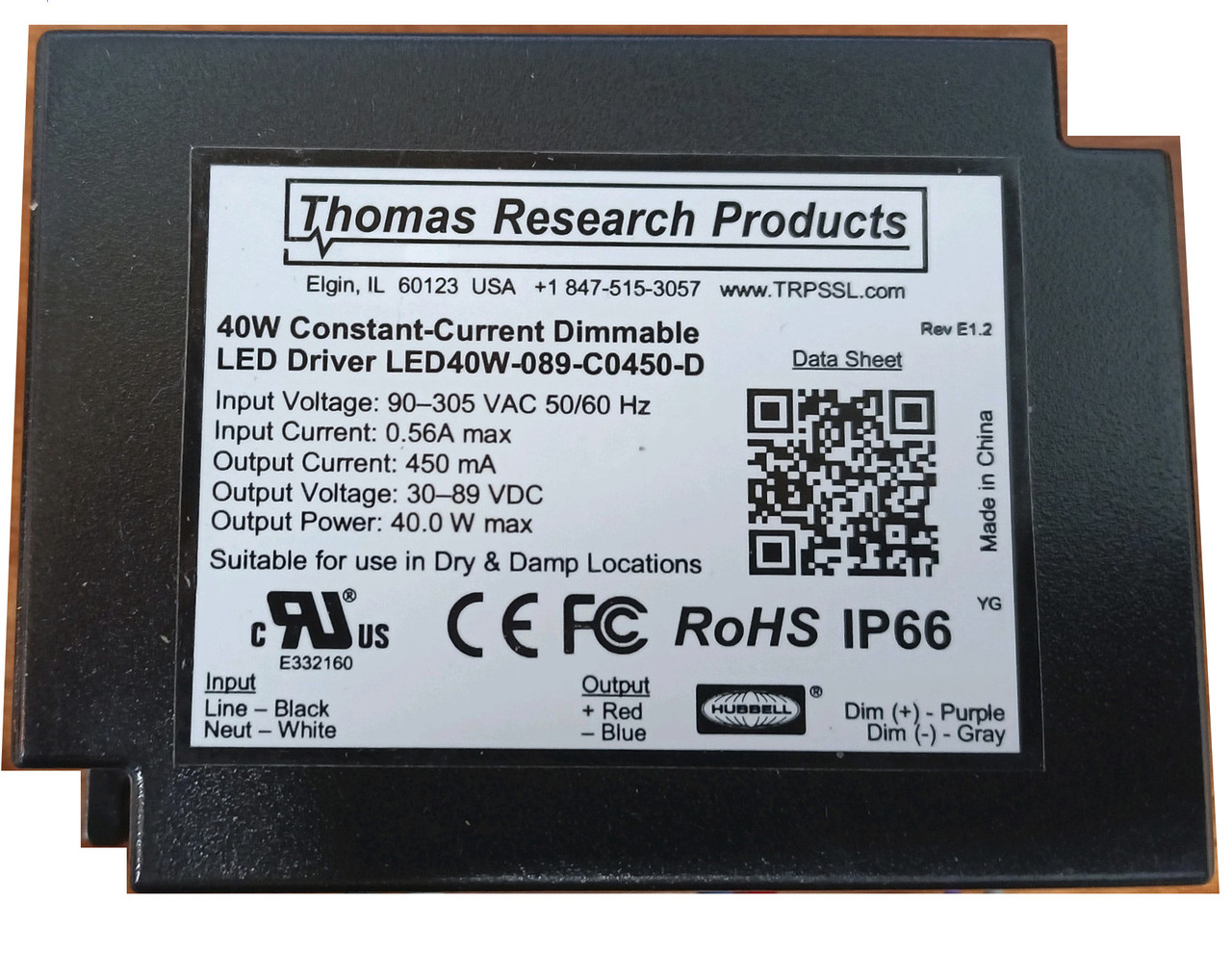

Hubbell Lighting Components

Thomas Research Products

LED40W-089_C0450-D

Constant Current Dimmable LED Driver

• 40W Dimmable Switch Mode LED Driver
• Input Voltage Range: 100-277 Vac Nom (90-305 V Min/Max)
• Power Factor: >.9 at full load, 100V through 277V
• Input Current .4 amps max
• Output current 450 mA
• Output Voltage 45-89 Vdc
• Max Output Power 40W
• Constant Current and Constant Voltage with Isolation
• Black Magic Thermal Advantage Plastic Housing
• IP66
• 0-10V Dimmable
