Eaton Arrow Hart

AH420C9W

Pin and Sleeve Connector

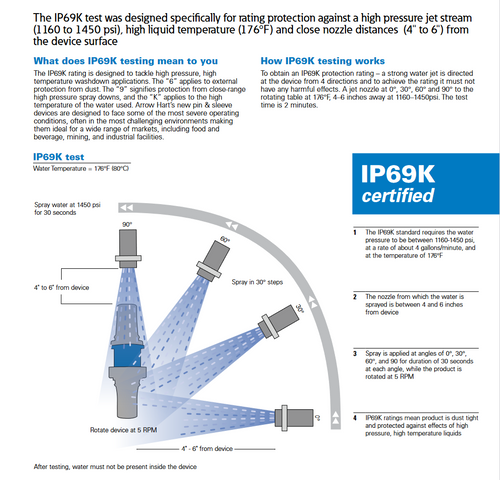

• IP69K Rated--The IP69K rating is designed to tackle high pressure, high temperature washdown applications. The “6” applies to external protection from dust. The “9” signifies protection from close-range high pressure spray downs, and the “K” applies to the high temperature of the water used. Arrow Hart’s new pin & sleeve devices are designed to face some of the most severe operating conditions, often in the most challenging environments making them ideal for a wide range of markets, including food and beverage, mining, and industrial facilities.
• IP67
• #12 -#10 AWG
• 20A, 3Ø 250V
• Back wire
• Blue, Nylon
• Nickel plated brass connectors
• Three-pole, Four-wire, grounding
• 0.333-0.775in (0.85-1.97cm) cord diameter
• Female
• 2 HP rating
• Three-phase
